Total 79 questions
What is ALWAYS the best thing to do to optimize Reserve LUN Pool disk performance?
- A. Use equal sized MetaLUNs
- B. Use both FC and ATA disks
- C. Only use dedicated FC disks
- D. Use MetaLUNs for the Reserve LUN Pool
Answer : C
- A. No change; the configuration will work as is
- B. Add four more T3 lines to carry the updated data
- C. Change the MirrorView/A update cycle to 20 minutes after the start of the last update
- D. Change the MirrorView/A update cycle to 15 minutes after the start of the last update
Answer : A
With write cache enabled, when will RAID 1/0 perform better than RAID 5?
- A. All writes
- B. Large writes
- C. Sequential writes
- D. Small random writes
Answer : D
You would like to view Navisphere Analyzer log files on a laptop with no network connectivity. What are two [2] methods for viewing the log files?
- A. Window_UI and Navisphere Agent
- B. Windows_UI and Management Server
- C. Off-Array Analyzer_UI and Management Server
- D. Off-Array Analyzer Provider and Off-Array Analyzer_UI
- E. Windows_UI, Management Server and Off-Array Analyzer Provider
Answer : B,E
What is the benefit of binding parity RAID groups vertically?
- A. Increased Front End Bandwidth
- B. Increased performance per RAID group
- C. Increased performance per individual disk
- D. Increased data availability to over 99.999%
Answer : D
Which four [4] Clone-related operations must wait until the clone reverse synchronization is complete?
- A. Add another Clone to the Clone Group
- B. Create a new Clone Group on the array
- C. Synchronize any Clone in the Clone Group
- D. Delete a different Clone Group on the array
- E. Remove the Clone that is reverse synchronizing
- F. Reverse synchronize any clone in the Clone Group
Answer : A,C,E,F
GWC uses a Windows 2000 server and a CX-series array to run its data warehouse application. For application development and testing, GWC is making use of the clone functionality in SnapView and scripted the fracturing and resynchronization. The scripts are run on the host under User Administrator. In the scripts the username and password for the
Navisphere user are specified. Due to security constraints, user name and password must be taken out of the scripts. Which two [2] actions must be performed after user name and passwords are removed from the scripts?
- A. Create the user Administrator in Navisphere Manager
- B. Run the NaviCLI ddUserSecurity command and specify the Navisphere user password.
- C. Run the java ar NaviCLI.jar ddUserSecurity command and specify the host user password
- D. Run the java ar NaviCLI.jar ddUserSecurity command and specify the Navisphere user password
Answer : A,D
Click the Task button.

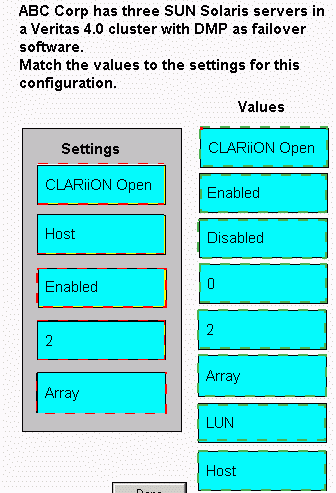

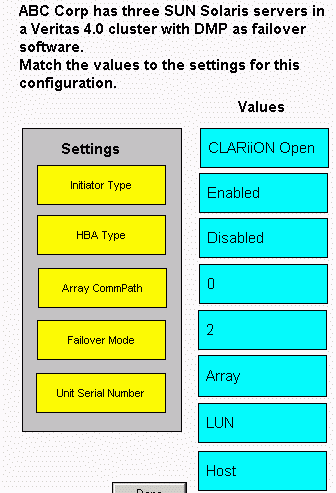

ABC Corp has three SUN Solaris servers in a Veritas 4.0 cluster with DMP as failover software. Match the values to the settings for this configuration.
Answer :
You use Navisphere Analyzer to determine the current performance of the 4+1 RAID 5 application LUNs used by the RRM Company. The customer uses a CX700. Each LUN is on a dedicated RAID Group consisting of 10 krpm 73 GB disks. Your analysis indicates that the response time for the LUNs varies between 10 ms and 35 ms during the day. You also find that the company is running between 350 and 500 IOPs each. The write/read ratio is around 33/67. Average seek distance on their 200 GB LUNs is 15 GB. RRM wants to add
SnapView to the environment. RRM's goal is to use Snapshots taken every two hours to restore the data in case of corruption. The customer asks for your recommendation. One of the factors you consider is the performance impact of using Snapshots. What do you estimate the impact to be?
- A. An additional read load of 100 IOPS on each Source LUN caused by the COFW process
- B. An additional write load of 100 IOPS on each Source LUN caused by the COFW process
- C. An additional read load of 1000 IOPS on each Source LUN caused by the COFW process
- D. An additional write load of 1000 IOPS on each Source LUN caused by the COFW process
Answer : A
Your customer, NCM, is concerned about the performance effects of SnapView on its
Source LUNs. Which actions do you take to determine the extra load?
- A. Load Analyzer. View the number of writes to the Reserved LUNs. This equals the extra write load on the Source LUNs
- B. Load Analyzer. View the number of reads from the Reserved LUNs. This equals the extra read load on the Source LUNs
- C. View the Session Properties in Navisphere Manager. Check the Number of Writes from the Reserved LUN Pool. This equals the extra read load on the Source LUNs
- D. View the Session Properties in Navisphere Manager. Check the Number of Writes from the Reserved LUN Pool. This equals the extra write load on the Source LUNs
Answer : C
Which option will have the lower latency on the backend when writing an entire stripe of data?
- A. 4+1 RAID-5 Group 73GB drives
- B. 8+1 RAID-5 Group 73GB drives
- C. 4+4 RAID-1/0 Group 73GB drives
- D. 8+8 RAID-1/0 Group 73GB drives
Answer : A
What is considered the IOPS rule-of-thumb for Fibre Channel 7,200 rpm disks?
- A. 75 IOPS
- B. 100 IOPS
- C. 150 IOPS
- D. 200 IOPS
Answer : B
Click the Exhibit button. BRM Company was using the MirrorView configuration shown in the graphic. The company decided that it did not need two sites to mirror to. BRM relocated
- A. This cannot be done without connectivity to the other MirrorView connected system
- B. Expand Remote Mirrors in Navisphere Manager, right click on the Mirror and select destroy
- C. Expand Remote Mirrors in Navisphere Manager, expand the mirror, right click on the Secondary Image and select destroy
- D. Expand Remote Mirrors in Navisphere Manager, go into Engineering Mode, right click on the Mirror and select force destroy
Answer : C
Click the Exhibit button. ABC Corp has one HP-UX server with LVM connected to the headquarters CX600 with mirrors on the remote site. The filesystem on the CLARiiON LUN is rapidly running out of space and needs to be expanded. Which action should be taken?
- A. Create a second LUN, present it to the server, add the disk in LVM and expand the filesystem
- B. Create a metaLUN on the primary and on the secondary, expand the disk and then expand the filesystem
- C. Destroy the mirror, create a metaLUN, expand the disk, do the same on the remote, recreate the mirror and expand the filesystem
- D. Create a second LUN, do the same on the remote site, create a mirror with this LUN, present the primary to the server, add the disk in LVM and expand the filesystem
Answer : D
