Total 70 questions

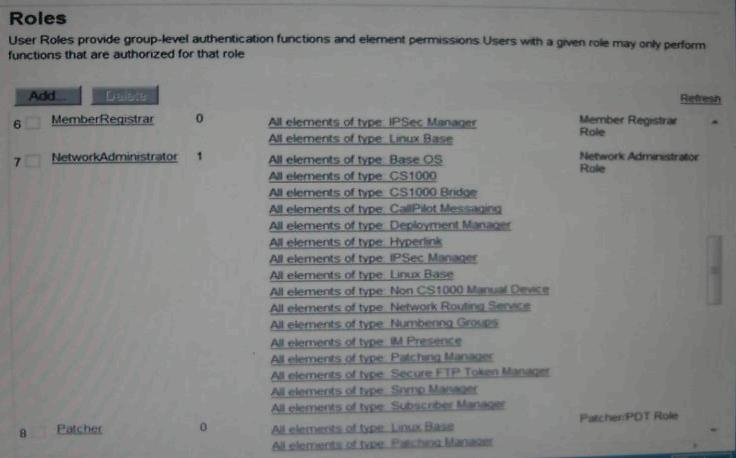

Click the Exhibit button.
A customer has a Communication Server 1000 RIs. 7 x system with System Manger /
Unified Management (UCM) enabled. They have requested the addition of two new UCM
Administrator User with the limited ability to provision telephones at each site. Refer to the exhibit for the roles current existing in the system.
Which action can the Network Administrator take to add these new accounts per the customers requirements?
- A. Change the built-in MemberRegister role to add the permissions required to allow telephone configuration.
- B. Assign the new users to the built-in NetworkAdministrator role because it has the permissions that allow telephone configuration.
- C. Change the built-in role Patcher role to remove all permissions except those that allow telephone configuration.
- D. Add a new TelephonyAdmin role with the specific permissions required to allow telephone configuration.
Answer : D
A customer has a Communication Server 1000 RIs. 7 x system at their site. You have been asked to add the Call Pickup feature to the ten IP telephones in the sales department. The customer wants to be sure active calls are not lost when the change are made.
Which Phones Configuration feature can be enabled allowed you to ensure changes to the telephones are not transmitted to the call server until the telephone is not busy?
- A. Bulk change
- B. Courtesy change
- C. Group change
- D. Template change
Answer : B

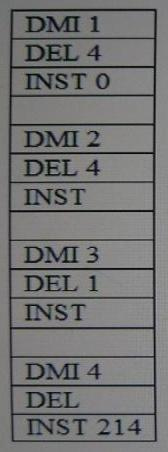

Click the Exhibit button.
An employee at a company is placing a call to telephone number 214-774-3299. The employee, believing this is a toll call, dials 9-1-214-774-3299. However, this call is a local call.
Access Code 1 = 9 -
The Central Office utilizes a 7-digital dialing plan.
Given the DMI indexes programmed into this Communication Server 1000 shown in the exhibit, which DMI would be used to modify the dialed digits to outpulse the correct digits to the Central Office?
- A. DMI Table 1
- B. DMI Table 2
- C. DMI Table 3
- D. DMI Table 4
Answer : B

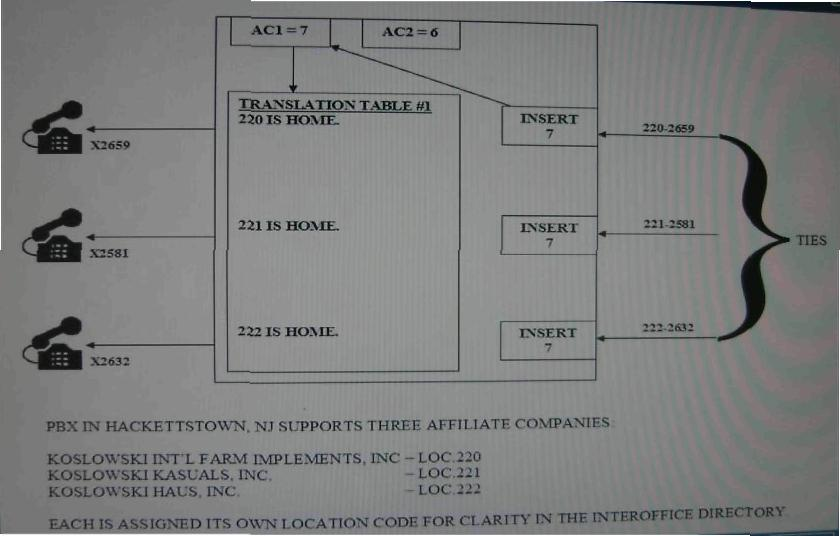

Click the Exhibit button.
Consider a companys dialing plan shown in the exhibit and an example for its requirements:
A station user at the company, with Location Code 221, placed an ESN call, dialing 7-221-
2581. This would be an On-Net call and the NARS programming must remove the LOC code and dial the DN internally.
What programming would remove the location code for a call dialed within the originating
Communication Server 1000 to a DN on that same Communication Server 1000?
- A. Each site would have its own Location Code programmed as a Home Location Code (HLOC) under Translation Table #1 in their CS 1000.
- B. The location codes for each site would be programmed under the LOC programming in Translation Table #2 at all locations.
- C. Home NPA Codes (HNPA) for each site would be programmed under Translation Table #1 at each location in their CS 1000.
- D. Each site would have the Location Codes for all sites programmed as Home Location Codes (HLOC) in Translation Table #1 of their CS 1000.
Answer : A

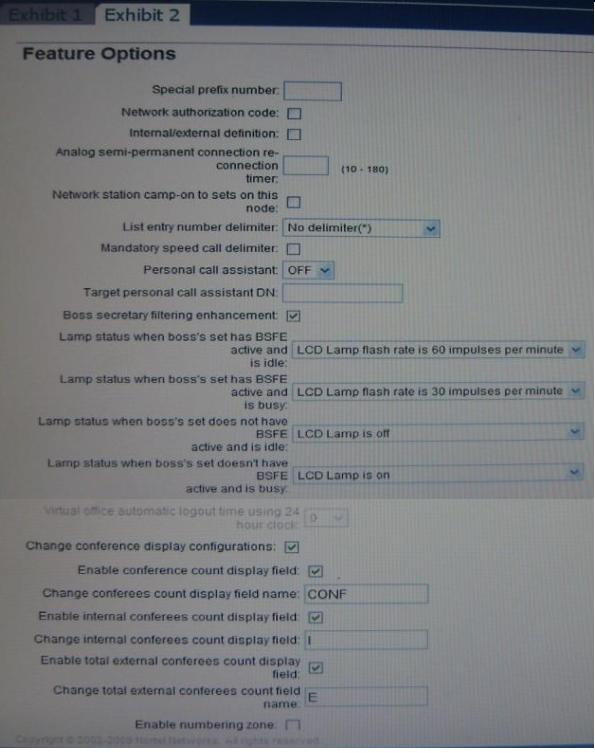

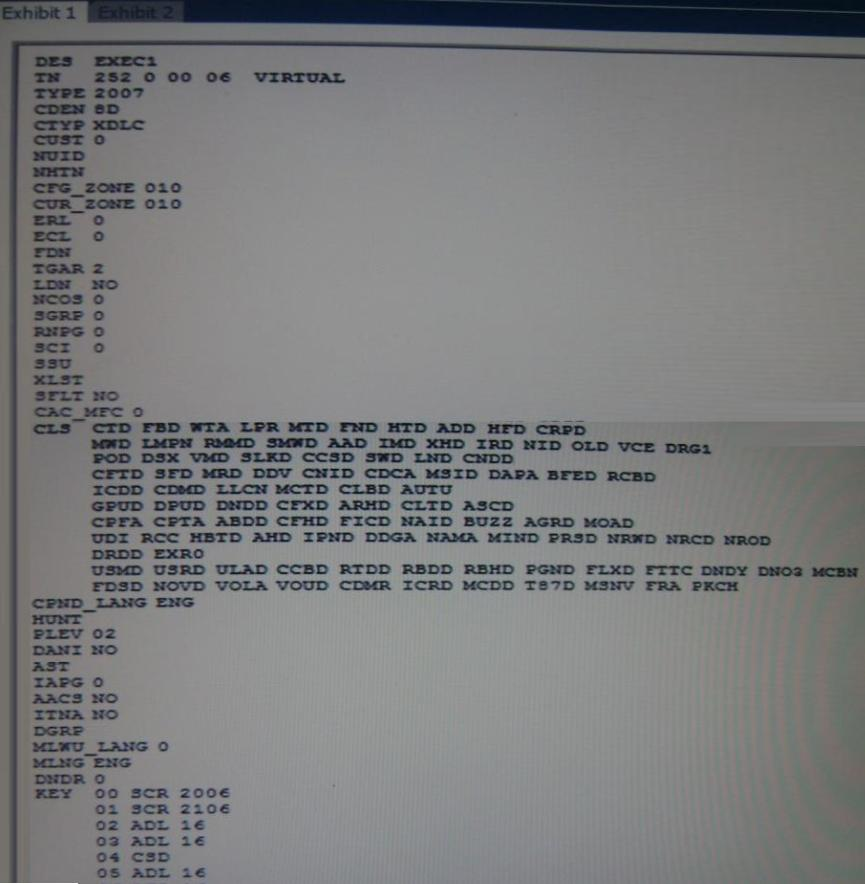

Click the Exhibit button.
A customer has asked if the Communication Server 1000 RIs. 7 x system can provide
Exchange users with the ability to selectively drop people that have been added to a conference.
Based on the print-outs, what capabilities are currently available to the user of extension
2006?
- A. The user cannot see the conferee display count or selectively disconnect callers.
- B. The user can see the conferee display count and can selectively disconnect callers.
- C. The user can see the conferee display count but cannot selectively disconnect callers.
- D. The user cannot see the conferee display count but selectively disconnect callers.
Answer : B

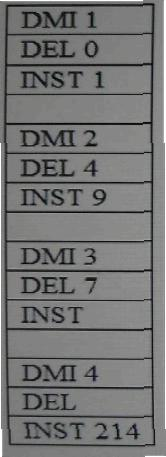

Click the Exhibit button.
The local Central Office required that all calls dialed utilize dialing, however users forget to dial the NPA for local calls. Which DMI entry would be utilized to insert the NPA of 214 when a user dials 9-774-3299?
- A. DMI Table 1
- B. DMI Table 2
- C. DMI Table 3
- D. DMI Table 4
Answer : D

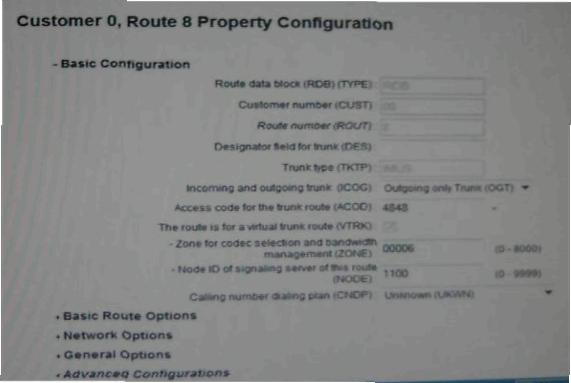

Click the Exhibit button.
You are asked to review the existing route information for the customer.
According to the printout shown in the exhibit, which type of route is this?
- A. a direct inward dial route
- B. a media services route
- C. an integrated services digital network route
- D. an incoming only route
Answer : A
You are using Element Manager to verify the system configuration before implementing IP
Peer Networking. Which element can you configure or modify using Element Manager?
- A. Call Server
- B. Network Connection Service
- C. Basic Input Output System (BIOS)
- D. Hardworking watchdog
Answer : A

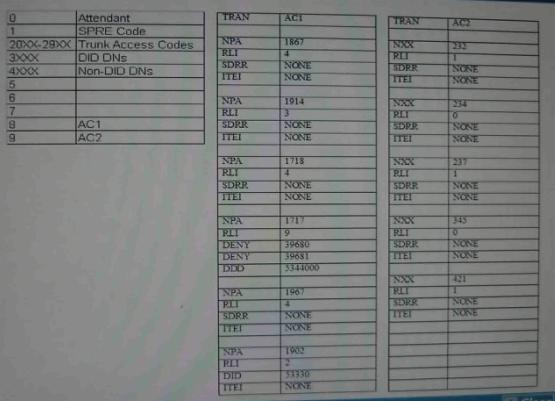

Click the Exhibit button.
Refer to the customers dialing plan and programming show in the exhibits.
Assuming all required Route List Indexes have been programmed, why will the station user's dialed call of 8-1-717-398-8001 not complete?
- A. AC2 Access Code was not dialed
- B. NPA 1717 is not provisioned in the customer's database
- C. 398-8001 would be denied under the SDRR programming
- D. AC1 Access Code was not dialed
Answer : C
An enterprise has a network with Communication Server 1000E systems running RIs 7 x IP
Peer Network. For this network, when are the Digital Signal Processor (DSP) resources required?
- A. when a compressed media channel is required without circuit switching
- B. when interworking is necessary to third-party SIP-enabled products
- C. when it is necessary to transcode between IP and circuit-switched devices
- D. when interworking is necessary to third-party H.323-enabled products
Answer : C

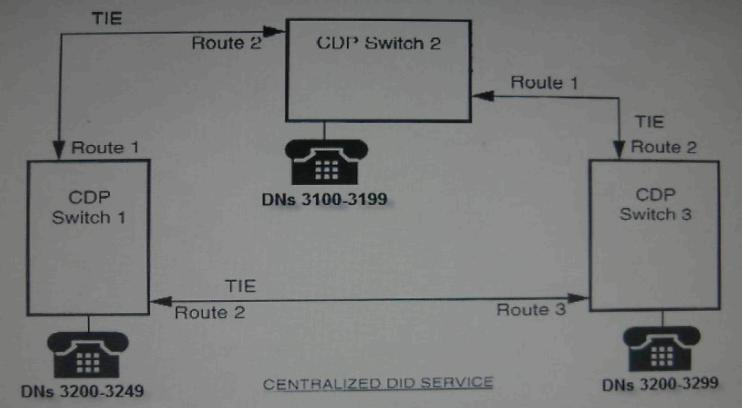

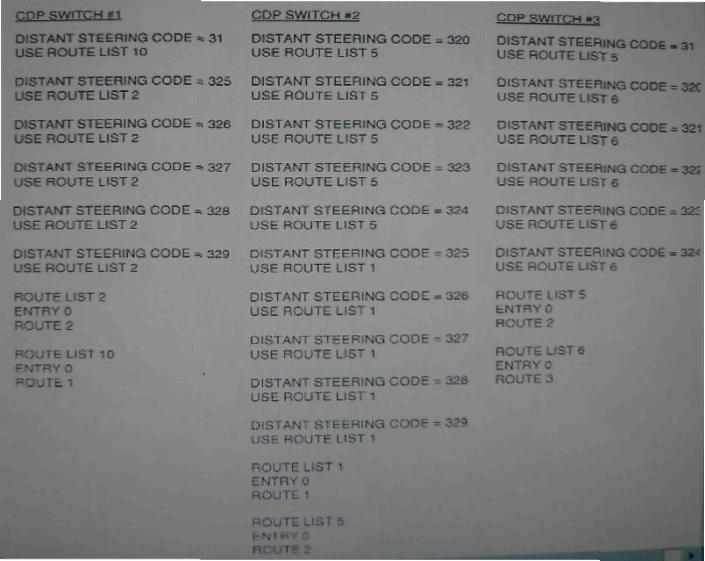

Click the Exhibit button.
Given a customers Coordinating Dialing Plan shown in the exhibit, if a Station user at CDP
Switch #2 dials 327-3249, which route list used and where will the call terminate?
- A. Route List 2 will be utilized and the call will terminate at CDP Switch #2
- B. Route List 10 will be utilized and the call will terminate at CDP Switch #3
- C. Route List 5 will be utilized and the call will terminate at CDP Switch #2
- D. Route List 1 will be utilized and the call will terminate at CDP Switch #3
Answer : A

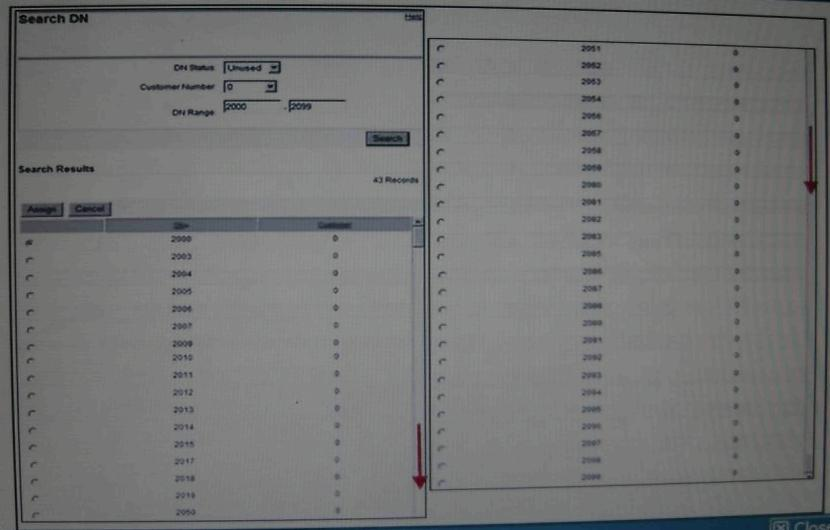

Click the Exhibit button.
A Communication Server 1000 RIs. 7 x customer is adding a new Human Resource department with eight IP telephone users. The customer has asked for the telephones to be programmed with consecutive Directory Number (DNs) from their DID range (2000-
2099).
Which number sequence is available to meet the customers requirements?
- A. 2001 – 2008
- B. 2010 – 2017
- C. 2050 – 2057
- D. 2091 - 2098
Answer : D

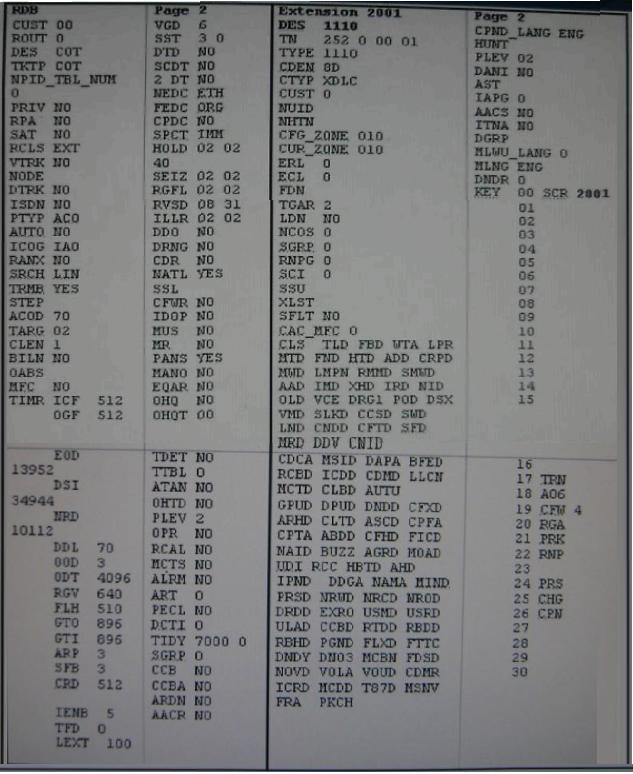

Click the Exhibit button.
You are responsible for maintaining a small Communication Server 1000 RIs. 7 x SA system. The customer decided against using Basic Automatic Route Selection (BARS) for call routing. They are now reporting that the user of extension 2001 is blocked when attempting to dial local call using the COT access code.
Based on the exhibit, what adjustments should be made to the system to allow the user of extension 2001 to dial local calls only by directly accessing the COT Route?
- A. Change the Class of Service of extension 2001 to Semi Restricted (SRE) and leave the TGAR setting of two (2) on the COT Route.
- B. Change the TGAR of extension 2001 to zero and leave the Class of Service setting of Toll Denied (TLD) on extension 2001.
- C. Change the Class of Service of extension 2001 to Conditionally Unrestricted (CUN), leave the TGAR setting of two (2) on the COT Route.
- D. Change the TGAR of the COT Route to zero and change the Class of Service setting of extension 2001 to Conditionally Toll Denied (CTD)
Answer : D

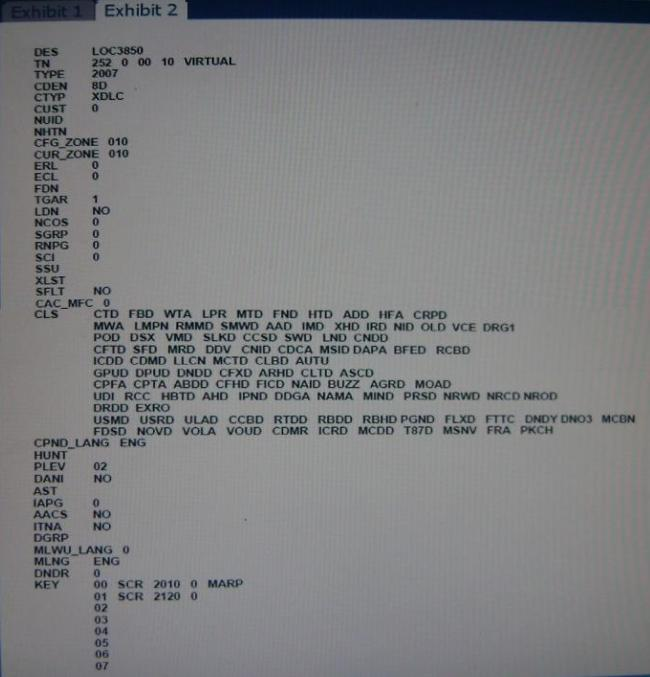

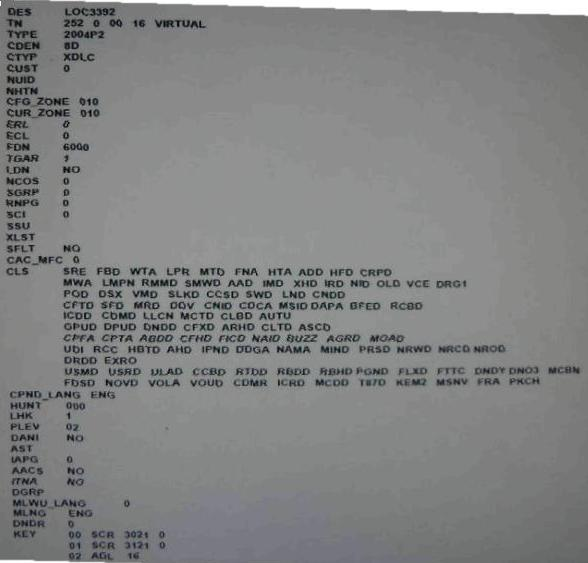

Click the Exhibit button.
A customer has deployed a Communication Server 1000 RIs. 7 x system at their site. You have been asked to swap two telephone sets shown in the print-outs.
What win you ten me customer regarding this request?
- A. These two telephones cannot be swapped because they do have compatible
- B. These two telephones can be swapped because they are both assigned to TGAR 1.
- C. These two telephones can be swapped because they both have the same VCE Class of service.
- D. These two telephones cannot be swapped because they are not in the some Call Pickup group.
Answer : A
Which functionality do TIE trunks provide?
- A. connects a telephone companies' central office and the PBX of a customer
- B. connects two different PBXs, whether In the same budding or farther away
- C. allows an outside caller to dial a station on a PBX directory
- D. provide incoming or outgoing service only, and not a combination of incoming/outgoing connections
Answer : B
