Cisco Industrial Ethernet switches are capable of sending alarm messages to ProfiNET management stations using the ProfiNET-IO protocol. Which four are alarms that can be configured for an interface? (Choose four)

  • A. Port Not Forwarding
  • B. Port Not Operating
  • C. Port LLDP Disabled
  • D. Port QoS Disabled
  • E. Port Duplex Mismatch
  • F. Port FCS Errors Exceeded Threshold
  • G. Port CRC Errors Exceeded Threshold
  • H. Port Link Fault


Answer : A,B,F,H

What are three Cisco best practices for running I/O control traffic in a wireless environment? (Choose three)

  • A. 3200 packets per second and 20% bandwidth for HMI and maintenance traffic.
  • B. 2200 packets per second and 20% bandwidth for HMI and maintenance traffic
  • C. I/O control traffic can be run on 2.4 or 5 GHZ channels
  • D. I/O control traffic should be run on 5GHZ channels only
  • E. Standard I/O RPIs less than 20ms are not practical for wireless media because the maximum latency and jitter become comparable or greater than the RPI
  • F. Standard I/O RPIs less than 10ms are not practical for wireless media because the maximum latency and jitter become comparable or greater than the RPI


Answer : B,D,F

If the Link Fault alarm is connected to the minor relay and the FCS Bit Error Rate alarm is connected to the major relay, which commands will create an alarm profile called GigE with the alarms correctly mapped to the minor and major relays?

  • A. Switch(config)#alarm profile GigE Switch(config-alarm-prof)#alarm 1 4 Switch(config-alarm-prof)#relay major 4 Switch(config-alarm-prof)#relay minor 1
  • B. Switch(config)#alarm profile GigE Switch(config-alarm-prof)#alarm 1 3 Switch(config-alarm-prof)#relay major 3 Switch(config-alarm-prof)#relay minor 1
  • C. Switch(config)#alarm profile GigE Switch(config-alarm-prof)#alarm 1 3 Switch(config-alarm-prof)#relay major 1 Switch(config-alarm-prof)#relay minor 3
  • D. Switch(config)#alarm profile GigE Switch(config-alarm-prof)#alarm 1 4 Switch(config-alarm-prof)#relay major 1 Switch(config-alarm-prof)#relay minor 4


Answer : A

To correctly integrate a Cisco Industrial Ethernet switch into a ProfiNET management system such as SIMATIC STEP 7 or TIA Portal, which is a mandatory action?

  • A. Configure an IP address on the ProfiNET VLAN interface
  • B. The General Station Description (GSD) file must be uploaded from the switch to the management system.
  • C. Enable Quality of Service (QoS) and ensure the management station interface is trusted
  • D. Enable SNMP on the switch


Answer : B

It is common to use Resilient Ethernet Protocol (REP) on the manufacturing floor as a resiliency protocol, as opposed to the Enterprise where it is not generally deployed. What are two reasons why REP is more suitable for the plant floor? (Choose two)

  • A. REP is only supported on Industrial Ethernet switches, it is not supported on Catalyst switches.
  • B. REP converges faster than Spanning Tree, allowing for greater network availability.
  • C. REP supports Industrial Ethernet protocols better because it moves the packets faster.
  • D. Running dual cables from access switches to an aggregation switch can have a much higher cost on the plant floor than in the Enterprise and running a ring protocol like REP provides resiliency at a lower cost.
  • E. Industrial protocols can be negatively impacted by the number of nodes the Ethernet frame traverses, REP provides a topology with no more than 3 nodes for any data path.


Answer : B,D

Which describes a best practice rule for controlling traffic between the corporate network and the controls network?

  • A. Outbound traffic from the control network to the corporate network and outbound traffic from the corporate network to the control network can be restricted based on source and destination address only.
  • B. Outbound traffic from the corporate network to the control network should be restricted but outbound traffic from the control network to the corporate network should not be restricted.
  • C. Outbound traffic from the control network to the corporate network should be restricted based on source and destination address and service only.
  • D. Outbound traffic from the control network to the corporate network should be restricted based on source and destination address, service, and port.


Answer : D

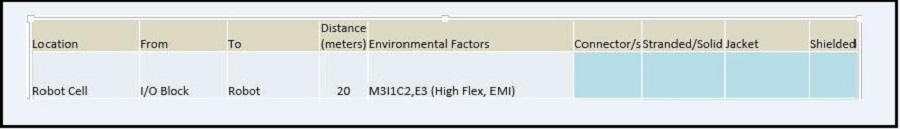

Refer to the exhibit. The Robot Cell is in a bottling plant. This cell environment needs to consider high flex, EMI, and possible exposure to moisture. Which physical media components need to be considered to prevent network degradation or interruptions?


  • A. Stranded, shielded wire with an industrial jacket and M12 connectors
  • B. Solid, unshielded commercial jacket wire, and M12 connectors
  • C. Stranded, unshielded wire with an industrial jacket, and commercial grade RJ45 connectors
  • D. Solid, shielded wire with commercial grade jacket, and commercial grade RJ45 connectors


Answer : A

AP CAPWAP control traffic should be isolated from wireless client traffic. Which scenario represents the correct configuration to support the SSIDs of this controller-based access point in FlexConnect local switching mode?

  • A.
  • B.
  • C.
  • D.


Answer : C

Which is an issue with running CIP Motion on a REP network and identifies an alternate resiliency protocol that works for CIP Motion?

  • A. CIP Motion requires a star topology which is not supported by REP. DLR is a suitable resiliency protocol for CIP motion.
  • B. REP convergence is not fast enough. DLR is a suitable resiliency protocol for CIP motion.
  • C. CIP Motion requires a star topology which is not supported by REP. RPVST+ is a suitable resiliency protocol for CIP motion.
  • D. REP convergence is not fast enough. RPVST+ is a suitable resiliency protocol for CIP motion.


Answer : B

When troubleshooting a high packet loss condition in the network, the inspection area has an assessed M.I.C.E. value of M=1, I=1, C=3 and E=1. Which condition could be suspect?

  • A. Use of shielded Patch Cables, Bonded on one end only.
  • B. Use of unshielded Patch Cables.
  • C. Broken seal on bulkhead connector.
  • D. Oxidation on Shielded RJ45 Patch Plug


Answer : D

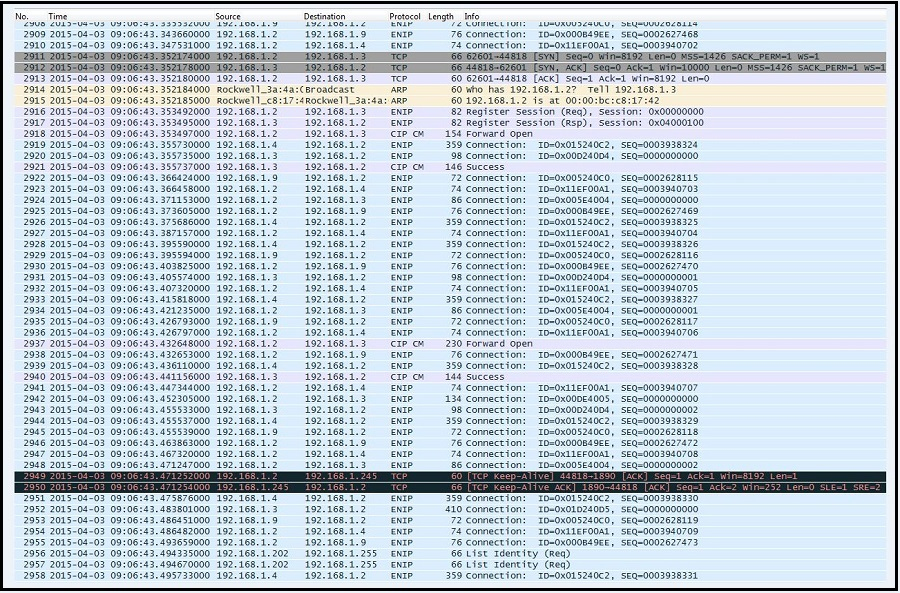

Refer to the exhibit.

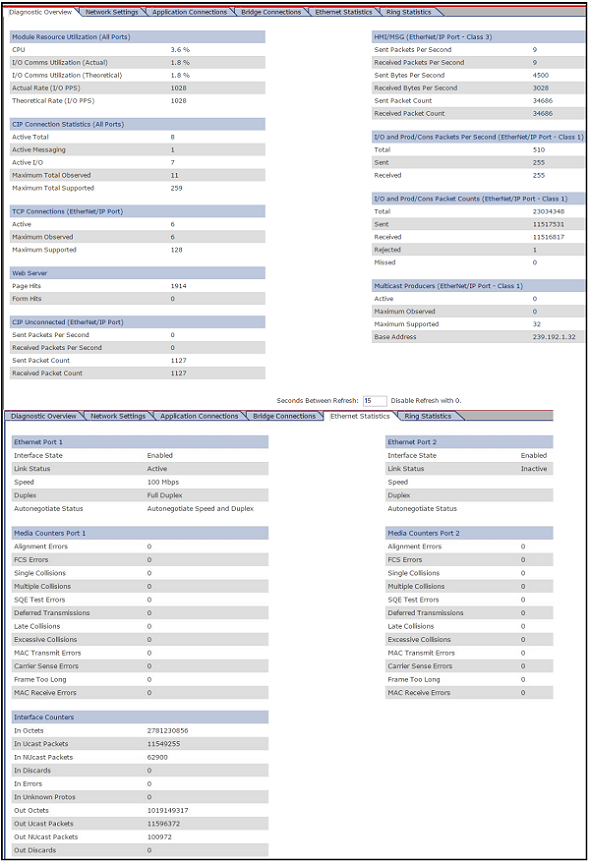

Which two parameters can be used to diagnose an overloaded system? (Choose two)

  • A. Ethernet Port 1 Speed
  • B. Module Resource Allocation Actual Rate
  • C. Class 3 Received bytes per second
  • D. Media Counters Alignment Errors
  • E. TCP Connections Active


Answer : B,E

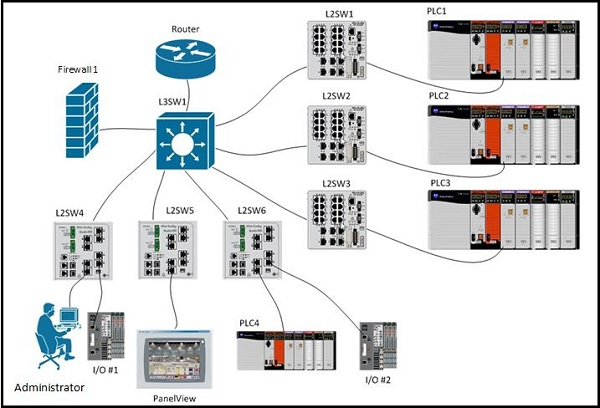

Refer to the exhibit.


A new device, PanelView, has been added to the network. See the table for device details:
All devices are able to ping their default gateway and all other devices except PanelView.
PanelView can only ping its default gateway.
After the administrator has done some investigation they have discovered the following information:

L3SW1# show run interface -
interface Vlan1
no ip address
shutdown
interface Vlan191
ip address 10.10.27.125 255.255.255.192
ip helper-address 165.28.96.96
ip helper-address 165.28.32.235
no ip redirects
standby 191 ip 10.10.27.126
standby 191 priority 120
standby 191 preempt delay minimum 90
no ip route-cache
interface Vlan398
ip vrf forwarding mosaic
ip address 10.15.153.203 255.255.255.0
ip helper-address 10.15.154.252
ip helper-address 10.1.0.252
standby 98 ip 10.15.153.202
standby 98 priority 120
standby 98 preempt delay minimum 90
interface Vlan399
ip vrf forwarding mosaic
ip address 10.15.154.203 255.255.255.0
ip helper-address 10.1.0.252
ip helper-address 10.1.1.252
standby 99 ip 10.15.154.254
standby 99 priority 120
standby 99 preempt delay minimum 90

L3SW1# show ip route connected -
10.0.0.0/8 is variably subnetted, 1149 subnets, 17 masks
C 10.10.27.64/26 is directly connected, Vlan191
C 10.10.31.254/32 is directly connected, Loopback1
What is preventing PanelView from pinging the other endpoints in the network?

  • A. Routing isn't enabled on L3SW1 for SVI 398 and SVI 399
  • B. SVI 191 is in a different routing instance than SVI 398 and SVI 399
  • C. Firewall1 is blocking pings from PanelView to the other endpoints
  • D. An access list on L3SW1 is blocking pings from PanelView to the other endpoints


Answer : B

Which describes the relationship between a workgroup bridge?

  • A. Wired clients of a workgroup bridge can communicate, through the workgroup bridge, with wireless clients of an autonomous or a controller-based access point
  • B. Wireless clients of a controller-based AP can communicate, through the workgroup bridge, with wireless clients of an autonomous access point
  • C. Wireless clients of an autonomous access point can communicate with wired clients of a workgroup bridge, but Wireless clients of a controller-based access point cannot communicate with wired clients of a workgroup bridge
  • D. Wireless clients of a controller-based access point can communicate with wired clients of a workgroup bridge, but Wireless clients of an autonomous access point cannot communicate with wired clients of a workgroup bridge


Answer : A

Which option best describes the ProfiNET Discovery and Configuration Protocol (DCP)?

  • A. Can be used to override both static and dynamically (DHCP/BOOTP) assigned IP addresses
  • B. Cannot be used to reset a device to factory defaults
  • C. Is only supported in Conformance Class B and C devices
  • D. Uses the ProfiNET-IRT communication class


Answer : A

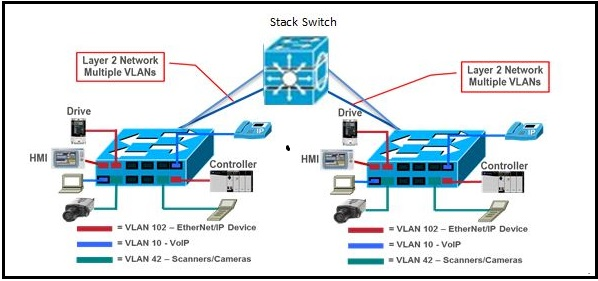

Which three network mechanisms can be used for securely segmenting an industrial network? (Choose three)

  • A. VLANs
  • B. OSPF
  • C. REP
  • D. VRFs
  • E. Firewalls
  • F. Spanning-tree


Answer : A,D,E
