In the protocol state machine exhibited, what does m1 represent?
Answer : B
If a data store node has three values and one moves across an outgoing edge, how many are left?
Answer : C
What is wrong with the collaboration occurrence shown in the exhibit?
Answer : E
Which statements are true about OCL? (Choose three)
Answer : D,E,F
What is NOT a standard stereotype of an OCL constraint?
Answer : B
When a component is deleted, what happens to objects in a component's namespace?
Answer : D
What is true about a class used as a template parameter for a parameterized class? A class used as template parameter _______. (Choose two)
Answer : A,C
What is the difference between the relationships between A and B in diagram (i) and diagram (ii) in the exhibit?
Answer : A

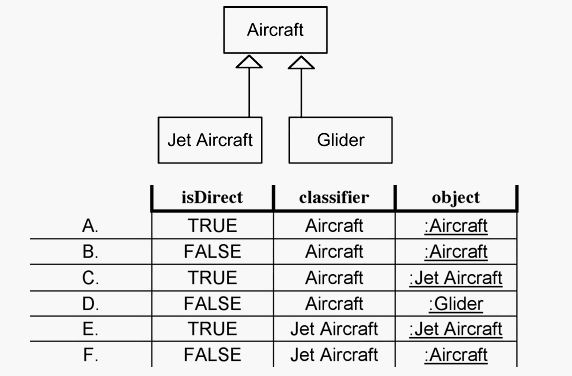

In the exhibit, what two input sets would yield a FALSE result when invoking a
ReadIsClassifiedObjectAction? (Choose two)
Answer : C.F
To which layers in the 4-layer metamodel hierarchy for the UML metamodel (as depicted in the exhibit) do M1 and M2 correspond?
Answer : C
What is true of a protocol state machine?
Answer : A
What is the correct identity of the UML 2.0 infrastructure package A in the exhibit?
Answer : A
What are the instances of a power type?
Answer : D
How does OCL identify comments?
Answer : C
