Page: 1
/ 6
Total 95 questions

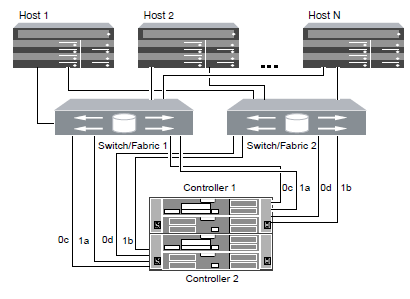

Referring to the exhibit, you see an FC SAN configuration that uses multiple fabrics and the best practice Implementation.
How many paths per LUN do you expect the host to see if the cable 0c connecting controller 2 to fabric 1 is pulled out for connectivity redundancy testing?
- A. 6
- B. 14
- C. 12
- D. 7
Answer : A
A company has a 4-node ONTAP cluster called cl01. Each node uses two UTA2 ports for data traffic, so that LAN traffic and SAN traffic pass over the same physical ports. A storage virtual machine called svm1 is created and enabled for iSCSI only. An administrator creates a LUN in svm1 and maps it to an igroup. Storage is scanned on the end host, but the LUN is not visible.
What caused this problem?
- A. The SVM firewall policy blocking port 3260 on the data LIFs
- B. The igroup does not contain the appropriate initiators
- C. Switch zoning is not configured properly to allow connectivity
- D. One of the Ifs is not online and communicating with the end host.
Answer : D
When implementing ONTAP SAN for VMware, in which three would VSC help? (Choose three.)
- A. When provisioning the lun
- B. When updating HBA driverQ`1aC. When configuring host best practices
- C. When provisioning the datastore
- D. When creating FC switch zoning
Answer : A,C,D
You configured a new host and followed all the recommended cabling, configuration, and the best practice guides, However, the host OS is reporting one less path to storage than expected.
In this scenario, which two diagnostic commands would assist in insolating the path to investigate? (Choose two.)
- A. fcp status
- B. fcp portname show
- C. fcp ping-initiator
- D. fcp ping-igroup
Answer : C,D
You have expanded your ONTAP cluster from two nodes to four nodes and want to allow
Linux multipathing software to see the paths to all nodes in the cluster.
In this scenario, which statement describes how to accomplish this task?
- A. Add the WWPN to the host igroup then rescan from the host.
- B. Rescan from the host OS and modify the reporting nodes to add the two new nodes.
- C. Modify the reporting nodes to add the two new nodes the rescan from the host OS.
- D. Rescan from the host OS then add the WWPN to the host igroup.
Answer : C
A company has Snapmirror configured between two ONTAP clusters. They want to add nodes to one of the clusters at a minimum, which LIF would be required to be defined on the new nodes?
- A. Node-management, data, and intercluster
- B. Node-management and intercluster
- C. Data, node-management, and FC
- D. Node-management
Answer : C
According to NetApp best practices, which method should be used for zoning?
- A. Single initiator – multiple targets
- B. Multiple initiator – single target
- C. Single initiator – single target
- D. Multiple initiator – multiple targets
Answer : C
In a 4-node cluster, how many LIFs are required on each node to allow a host to use ALUA and have multiple optimized paths to each LUN?
- A. 1
- B. 2
- C. 4
- D. 6
Answer : B
A customer wants to set up storage so that the LUNs have no possibility to go offline.
There are multiple LUNs per volume. There should be extra available space in the volume for snapshot copies.
Which two configuration settings would accomplish task? (Choose two.)
- A. Volume guarantee = volumeLUN reservation = enabledFractional reservation =100%Snapshot autodelete = disabledAutogrow = enabled
- B. Volume guarantee = noneLUN reservation = enabledFractional reservation =0Snapshot autodelete = enabledAutogrow = enabled
- C. Volume guarantee = volumeLUN reservation = enabledFractional reservation =0Snapshot autodelete = disabledAutogrow = disabled
- D. Volume guarantee = volumeLUN reservation = enabledFractional reservation =100%Snapshot autodelete = enabledAutogrow = disabled
Answer : A,D
A customer has 1 TB volume with space guarantee set to volume. Two 100 GBs LUNs are created in the volume with LUN reservation enabled and no snapshot copies exist.
In this scenario, how much space will be shown as used in the volume?
- A. 0 GB
- B. 200 GB
- C. 400 GB
- D. 100 GB
Answer : B
For testing LUN mobility, you are moving a volume that contains a LUN to a different HA pair within the same ONTAP cluster. You want to ensure that the host does not lose access to the LUN that is in the volume being moved.
Which action should be performed to accomplish this task?
- A. Create a snapmirror of the volume to the destination.
- B. Modify the reporting nodes to add the node of the destination and its HA partner.
- C. Verify that the volume has snapshots copies enabled.
- D. Verify that is enough free space on the volume that is being moved.
Answer : B

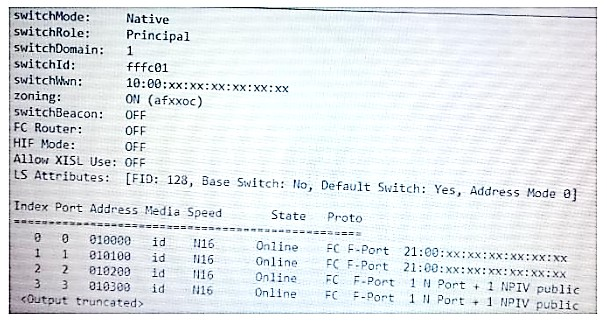

Referring to port 3 in the exhibit, which two statements are correct? (Choose two.)
- A. Port 3 shows two LIFs connected.
- B. The speed is hard coded to 16GB.
- C. Port 3 shows one LIF connected.
- D. The speed is set to auto and negotiated to 16GB.
Answer : B,C

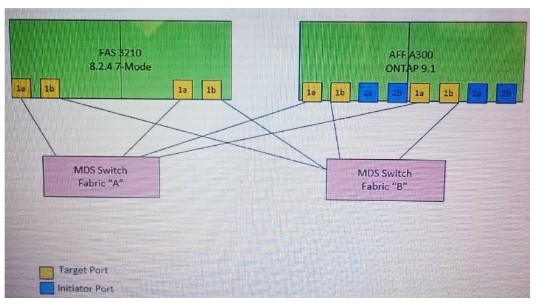

An administrator has an existing FAS3210 running DATA ONTAP 8.2.4 7-mode. They have recently purchased and installed a new AFF A300 ONTAP cluster and need to non- disruptively migrate FC LUNs from the 7-mode system to the new cluster. The administrator has cabled the FC interfaces shown in the exhibit.
In this scenario, which additional cabling will be needed on the AFF A300 to support foreign
LUN import 7-mode?
- A. AFF A300 node 1: interface 2a to MDS switch Fabric “A”AFF A300 node 1: interface 2b to MDS switch Fabric “A”AFF A300 node 2: interface 2a to MDS switch Fabric “B”AFF A300 node 2: interface 2b to MDS switch Fabric “B”
- B. AFF A300 node 1: interface 2a to MDS switch Fabric “A”AFF A300 node 1: interface 2b to MDS switch Fabric “A”AFF A300 node 2: interface 2a to MDS switch Fabric “A”AFF A300 node 2: interface 2b to MDS switch Fabric “A”
- C. AFF A300 node 1: interface 2a to MDS switch Fabric “A”AFF A300 node 1: interface 2b to MDS switch Fabric “B”AFF A300 node 2: interface 2a to MDS switch Fabric “A”AFF A300 node 2: interface 2b to MDS switch Fabric “B”
- D. AFF A300 node 1: interface 2a to MDS switch Fabric “B”AFF A300 node 1: interface 2b to MDS switch Fabric “B”AFF A300 node 2: interface 2a to MDS switch Fabric “B”AFF A300 node 2: interface 2b to MDS switch Fabric “B”
Answer : B
Which two actions are performed by the windows Unified Host Utilities 7.0 installation?
(Choose two.)
- A. Create the SVMs and the LUNs in ONTAP
- B. Set the parameters on the host to enable a connection to Netapp storage over SAN protocols
- C. Create zoning on the switch between the host and the Netapp SAN cluster
- D. Set the parameters for certain host bus adapters
Answer : B,D
