NetApp Certified Implementation Engineer - SAN,Data ONTAP 7-Mode v1.0 (NS0-502)

Page:    1 / 8
Total 113 questions

What is NetApp's recommended best practice for zone configuration?

  • A. All zones should contain a single initiator and all the targets that initiator accesses.
  • B. Individual zones can get too complicated. It is better to simply configure one default zone with all devices contained in it.
  • C. All devices from the same vendor should be in one zone.
  • D. All zones should contain a single target and all the initiators using that target.


Answer : A

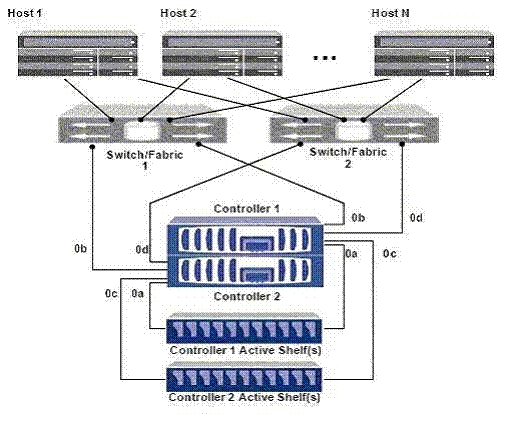

Click the Exhibit button.


</exhibit>
In the diagram shown, how should the zoning configuration be changed to better comply with NetApp best practices?

  • A. four zones, each with one initiator, first two with the first target port and the second two with the second target port
  • B. two zones, each with two initiators and one target port
  • C. two zones, each with all four initiators and one target port
  • D. four zones, each with one initiator and both target ports


Answer : D

Which type of zoning does NetApp recommend?

  • A. World Wide Name zoning
  • B. World Wide Port Name zoning
  • C. World Wide Node Name zoning
  • D. Switch World Wide Name zoning


Answer : B

What does NetApp recommend as best practice for zone configuration?

  • A. single target zoning
  • B. single initiator zoning
  • C. multiple initiator zoning
  • D. single port zoning


Answer : B

Click the Exhibit button.


Given the information shown in the diagram, which port has a NetApp device attached to it?

  • A. port 3
  • B. port 5
  • C. port 6
  • D. port 7


Answer : D

In a NetApp SAN solution, which value should you set for snap reserve for a volume holding LUNs?

  • A. 100%
  • B. 50%
  • C. 20%
  • D. 0%


Answer : D

Which command do you use to see the rate of change between two successive Snapshot copies in a flexible volume in Data ONTAP?

  • A. snap diff
  • B. snap calculate
  • C. snap delta
  • D. snap space


Answer : C

Which statement is true about single_image cfmode?

  • A. Both nodes in the active-active configuration function as separate Fibre Channel nodes, and the LUN maps are not shared between the partners.
  • B. Both nodes in the active-active configuration function as a single Fibre Channel node, and the LUN maps are shared between the partners.
  • C. Both nodes in the active-active configuration function as a single Fibre Channel node, and the LUN maps are not shared between the partners.
  • D. Both nodes in the active-active configuration function as separate Fibre Channel nodes, and the LUN maps are shared between the partners.


Answer : B

What are two functions provided by the NetApp Host Utilities Kits? (Choose two.)

  • A. They provide the ability to take snapshots of local file systems.
  • B. They provide properly set disk and HBA timeout values.
  • C. They identify and set path priorities for NetApp LUNs.
  • D. They provide SnapMirror/SnapVault integration.ns.


Answer : BC

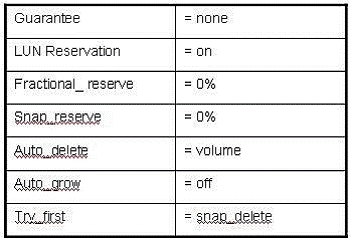

Click the Exhibit button.


When should you define the space management policy that is shown in the table?

  • A. when you want to thin provision the LUNs and make the volume size less than the LUN size
  • B. when you want Data ONTAP to start deleting Snapshots to recover space from the volume before growing the volume
  • C. when you want to set aside overwrite reserve space for the LUNs so that writes never fail with the presence of Snapshots
  • D. when you want to guarantee space for Snapshots by letting the volume autogrow


Answer : A

Which three tasks should be completed as part of the site preparation for install? (Choose three.)

  • A. plan zoning configuration
  • B. verify equipment move path
  • C. determine aggregate layout
  • D. verify power drops in the equipment location
  • E. make contact with data center personnel


Answer : BDE

Which task is part of the site preparation for installation?

  • A. configure zoning
  • B. install equipment in rack
  • C. verify equipment move path
  • D. verify host to storage connectivity


Answer : C

Which software feature must be supported and configured on the NetApp storage controller to configure multipath high availability between the storage controller and disk shelves?

  • A. MetroCluster
  • B. Software Disk Ownership
  • C. Snapshot copies
  • D. Single System Image cfmode


Answer : B

Which three does NetApp support for iSCSI with Microsoft Windows solutions? (Choose three.)

  • A. VLANs
  • B. Jumbo frames
  • C. NIC teaming
  • D. Microsoft MCS
  • E. NIC trunking


Answer : ABD

Which topology allows for guaranteed maximum network performance for iSCSI?

  • A. isolated VLAN network
  • B. MetroWAN network
  • C. direct connect
  • D. WAN network


Answer : C
