Total 110 questions
Click the Exhibit button.

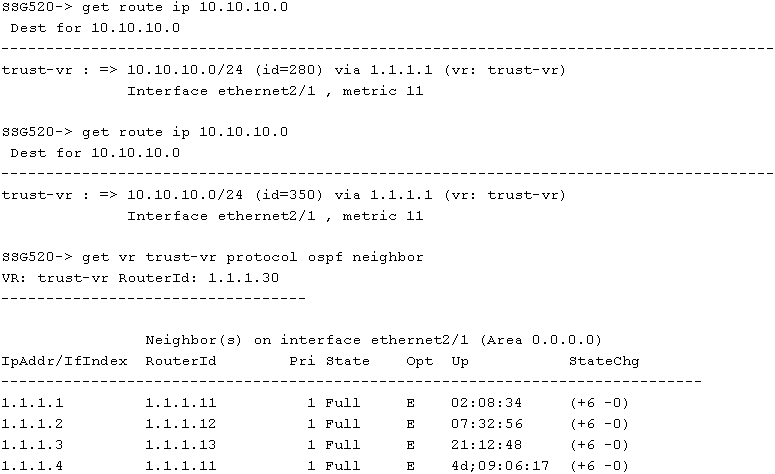

Users on the 10.10.10.0/24 subnet are reporting connectivity problems. While troubleshooting, you see the output shown in the exhibit.What is the cause of the route flapping?
- A. The autonomous system (AS) ID is incorrect.
- B. The interface is in the incorrect OSPF area.
- C. A duplicate router ID exists in the network.
- D. The OSPF neighbors have different hold timer values.
Answer : C
Which two statements are true about redundant interfaces on a ScreenOS device?
(Choose two.)
- A. With two interfaces in a redundant interface, only one link is primary at any given time.
- B. On high-end models with multi-ASIC cards, redundant Ethernet ports must be in the same ASIC group.
- C. With two interfaces in a redundant interface, both links pass traffic at the same time.
- D. On high-end models with multi-ASIC cards, redundant Ethernet ports can be used on different ASIC groups.
Answer : A,B
Click the Exhibit button.

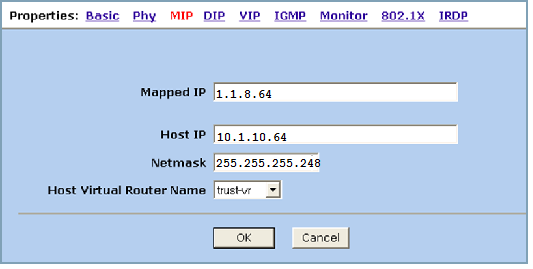

In the exhibit, you have configured the MIP address 1.1.8.64 on a ScreenOS device.
Which statement is correct?
- A. It performs one-to-one address translation and maps 1.1.8.64 to 10.1.10.64.
- B. It performs one-to-many address translation and maps 1.1.8.64 to a range from 10.1.10.64 to 10.1.10.71.
- C. It performs range address translation and maps 1.1.8.64 to 10.1.10.64, 1.1.8.65 to 10.1.10.65, etc..
- D. It performs address translation using a random IP address from the pool for 10.1.10.64/29.
Answer : C
An SSG5 has a default configuration loaded on it.
Which two statements are correct? (Choose two.)
- A. Intrazone blocking is enabled for the trust zone.
- B. Intrazone blocking is disabled for the trust zone.
- C. Intrazone blocking is enabled for the untrust zone.
- D. Intrazone blocking is disabled for the untrust zone.
Answer : B,C
