Total 240 questions
What can cause an SP to go into degraded mode?
- A. Image-SP type mismatch
- B. Failed power supply
- C. Multiple unowned LUNs
- D. Failed SLIC
Answer : A
You are required to install ESRS on a newly installed VNX for Block array. Where can the latest version of the VNX Installation Toolbox be located?
- A. EMC Support
- B. E-Lab Advisor
- C. E-Lab Interoperability Matrix
- D. CCA
Answer : A

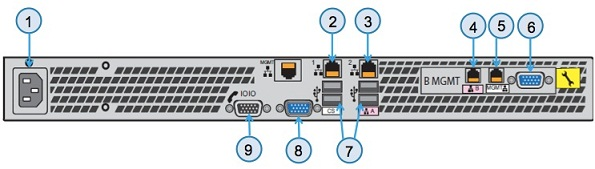

Refer to the exhibit.
Which port would be used to connect a secondary Control Station?
- A. 2
- B. 3
- C. 4
- D. 5
Answer : A
During a VNX gateway manual installation you are registering Data Mover initiators on the
VNX Block back-end array. Which 8-byte WWN is the initiator for Data Mover 2 HBA 1?
- A. 5006016036A00190
- B. 5006016136A00190
- C. 5006016836A00190
- D. 5006016936A00190
Answer : B
You are sent to a secure customer site to install a VNX, where the use of cell phones and mobile hot spots is prohibited. When you arrive you find that your VNX Installation procedure file is corrupted.
Using one of the customers workstations where can a copy of the VNX installation procedure be found?
- A. mydocs.emc.com/VNX
- B. support.emc.com/VNX
- C. emc.com/engineering/VNX
- D. powerlink.emc.com/VNX
Answer : A
You are installing multiple VNX arrays, and find that the different arrays share the same serial number. What will be the result?
- A. Unisphere may exhibit unpredictable behavior.
- B. Unisphere can still manage each VNX.
- C. The SP Cache of the conflicting VNXs will be disabled.
- D. Unisphere will fail to discover the arrays.
Answer : A

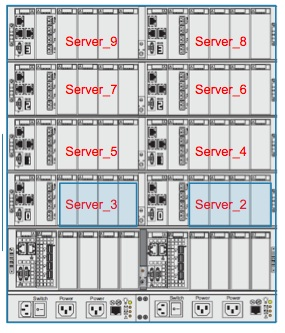

Refer to the exhibit -
The customer is performing an NDU operation to upgrade File OE code on a VNX with a single Data Mover enclosure. During the upgrade, the health check fails and the upgrade cannot proceed.
Which command can be used to fix the issue?
- A. server_standby server_2 -restore mover
- B. server_cpu server_2 -restore mover
- C. server_standby -server_3 -reboot -mover
- D. server_cpu server_3 -restore mover
Answer : A
From which resource would you obtain the VNX Block recovery document?
- A. VNX Procedure Generator
- B. VNX Installation Toolkit
- C. VNX Installation Assistant
- D. VNX Series Product Page
Answer : A
A customer requests information about where to find the installation procedures for a mid- tier VNX Unified system. How should you respond?
- A. The procedure is generated from the VNX Procedure Generator available in the customer view from Powerlink.
- B. A mid-tier VNX Unified system is not customer installable and a customer-specific installation procedure is not available.
- C. The procedure is generated from the VNX Procedure Generator available from the Powerlink EMC Services Partner Web.
- D. The procedure for installing VNX systems is contained within the VNX Installation Assistant software.
Answer : A
Which type of I/O module must be installed in slot 0 of a VNX shipped with an SPE?
- A. 4-port 6 Gb SAS
- B. 4-port 2, 4 or 8 Gb FC
- C. 2-port 10 GbE FCoE
- D. 4-port copper 1 GbE iSCSI
Answer : A
An engineer is diagnosing a VNX File system. Which file-specific data do you send them?
- A. collect_support_materials
- B. SP Collects
- C. SYR data
- D. panic dump
Answer : A

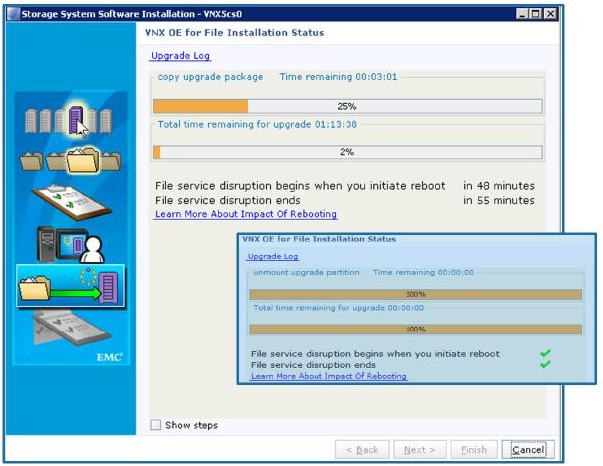

Refer to the exhibit.
You are upgrading a VNX OE for File and a VNX OE for Block storage system in the same operation. You are currently in the VNX OE for File upgrade and accidentally hit the Cancel button. What happens after re-launching the upgrade in USM?
- A. Upgrade will resume at the step where it was canceled
- B. Upgrade will restart from the beginning
- C. Upgrade will fail and support must be called to continue
- D. Upgrade will fail; must continue through the CLI
Answer : A
While at a customers site, you need access to a VNX Storage Processor on IP address
10.11.12.13. You want to use RemotelyAnywhere but https://10.11.12.13 does not open the login screen.
Which port needs to be added to the URL?
- A. 9519
- B. 443
- C. 80
- D. 119
Answer : A
