Total 129 questions
Which VisualSRM feature allows location of all Microsoft Office files greater than 10MB and compresses them to conserve space?
- A. WinZip utility
- B. File level detail
- C. Intelligent Action
- D. Threshold policy
Answer : C
In an Emulex HBA Solaris host Installation, which file is edited to force the host to perform a Fabric login to a switch?
- A. sd.conf
- B. lpfc.conf
- C. lputil.conf
- D. /etc/system
Answer : B
What are three [3] characteristics of Event Monitor?
A. Integrated with Navisphere manager
B. Monitors for user-configurable events
C. Loaded as a separately purchased NDU
D. Event Monitor is part of Navisphere Agent
E. Monitors only for Navisphere defined events
Answer : A,B,D Topic 1, B B

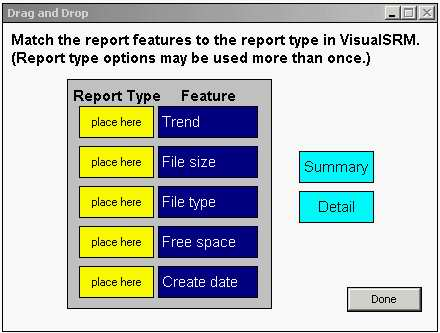

Click the Task button. Match the report features to the report type in VisualSRM.
Answer :
What are three [3] features of Access Logix?
- A. LUN Masking
- B. Manages the Access Control lists.
- C. Maps CLARiiON LUNs to host LUNs
- D. Masks host WWNs via Access Control lists.
- E. Restricts one host at a time to accessing one LUN at a time.
Answer : A,B,C
Which CLARiiON and SAN functions can be performed by the VisualSAN "Provision
Storage" feature?
- A. Define Zone, Create PowerVolume
- B. Bind LUN, Assign LUN to Storage Group, Define Zone
- C. Select LUN, Assign LUN to Storage Group, Define Zone
- D. Create RAID Groups, Bind LUN, Assign LUN to Storage Group, Define Zone
- E. Select LUN, Assign LUN to Storage Group, Define Zone, Create PowerVolume
Answer : C
What is the maximum number of Clone Private LUNs allowed on a CLARiiON CX Series array?
- A. 1
- B. 2
- C. 25
- D. 50
- E. 100
Answer : B
What is required when expanding a RAID 1/0 LUN using Concatenation?
- A. The added LUNs must be RAID 1/0
- B. The added LUNs must be the same size
- C. The added LUNs must be on the same RAID Group
- D. The added LUNs must be on the same type of disk drive (ATA vs Fibre Channel)
Answer : D
Which sequence of events occurs during a read cache miss from a host to a LUN on SPA?
- A. SPA retrieves data from SPA cache, then returns data back to the host
- B. SPA retrieves data from the array disk, then returns data back to the host
- C. SPA retrieves data from the array disk, places data into SPA read cache, then returns data back to the host
- D. SPA uses cache mirroring to make a request to SPB, retrieves data from SPB cache, then returns data back to the host
Answer : C
What are three [3] features that PowerPath CLI provides to users?
- A. Set the failover policy for a LUN.
- B. Set a path or LUN as active or standby.
- C. Load a previously saved PowerPath configuration file.
- D. Mask any of the LUNs on the storage array connected to the host.
Answer : A,B,C

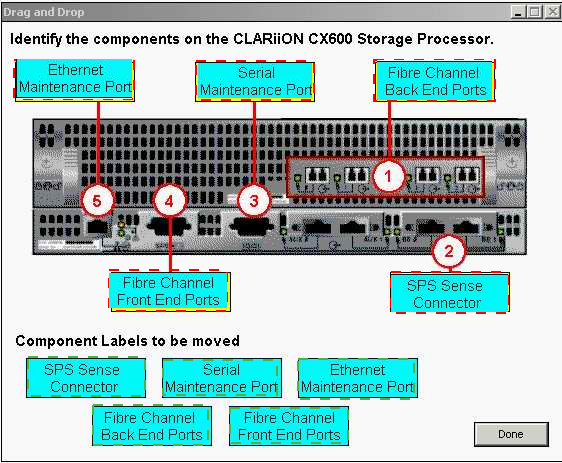

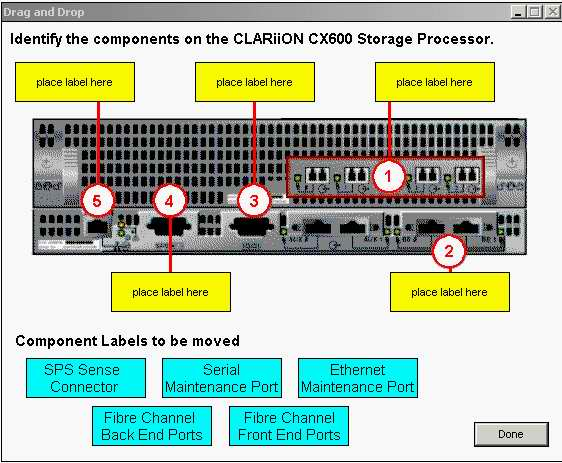

Click the Task button. Identify the components on the CLARiiON CX600 Storage
Processor.
Answer :
What are three [3] SAN Copy requirements within a CLARiiON CX Series only environment?
- A. LUNs must be available to SAN Copy ports.
- B. The storage system must be involved in the transfer.
- C. SAN Copy must be installed on both storage systems.
- D. The source storage system must have SAN Copy installed.
- E. SAN Copy ports must be zoned to the target storage systems.
- F. SAN Copy templates must be created on both storage systems.
Answer : A,B,E
Security has been initialized on a CX700 array. If you do not have an account on that array, what will be available to you?
- A. None
- B. Read Only on all Tabs
- C. Read Only on the Storage Tab
- D. Read Only on the Storage Tab, Change Access to the Monitors Tab
Answer : A
Which two [2] statements apply to a SAN Copy NDU install?
- A. SAN Copy NDU needs to be committed upon installation
- B. Array will not initiate trepass of LUNS during reboot of each SP
- C. Installation can be done by both Software Installation Wizard and CLI
- D. Access Logix Base Software NDU is required prior to SAN Copy install
Answer : C,D
What are four [4] considerations used to determine the required number and size of snapcache LUNs?
- A. The safety factor of two
- B. The number of snapshots created
- C. The COFW rule of thumb factor of 10%
- D. The number of source LUN's being snapped
- E. The maximum number of snapcache LUN's supported on the specific array
Answer : A,C,D,E
