Total 120 questions
Which module is required for the Connectrix MDS Storage Media Encryption feature?
- A. 18/4 multi-services module
- B. 14/2 multi-services module
- C. 32-port SSM module
- D. 8-port multi-services IPS module
Answer : A
You are on a customer site to install a CLARiiON array.
Which utility would you have used to plan your course of action?
- A. CPG
- B. HEAT
- C. SWAT
- D. CAP
Answer : A
According to EMC best practices what is the recommended cache page size for Microsoft
Exchange?
- A. 8 KB
- B. 16 KB
- C. 32 KB
- D. 64 KB
Answer : A
The Access Logix ACL entries consist of the CLARiiON SP port WWN and which other two elements?
- A. LUN UID and Host HBA WWN
- B. LUN UID and Host HBA WWPN
- C. LUN HLU and Host HBA WWN
- D. Host SID and CLARiiON serial number
Answer : A
A user with a CX4-480 tries to clone a Fibre Channel source LUN. The operation fails.
What could be the cause of the failure?
- A. No free LUN of the correct size
- B. One CPL is 1024 MB and the other is 2048 MB in size
- C. Insufficient free space in the reserved LUN pool
- D. The fracture log has reached capacity
Answer : A
What software is used to assign IP addresses when installing a new CLARiiON?
- A. Unisphere Initialization Utility
- B. Unisphere Server Utility
- C. Unisphere Service Manager
- D. Unisphere Client
Answer : A
What do drives 0_0_0 to 0_0_4 in a CX4 contain?
- A. FLARE and vault
- B. Linux OS and metadata
- C. DART and vault
- D. Enginuity and metadata
Answer : A

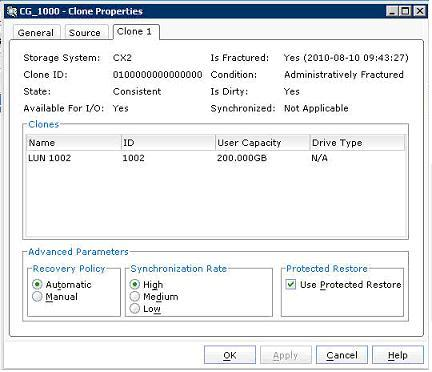

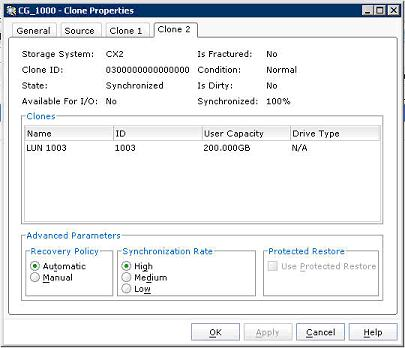

Refer to the exhibit.
Which statement describes the state of the clone?
- A. It has been modified by its owning host.
- B. It cannot be incrementally synchronized.
- C. It contains exactly the same data as the source LUN.
- D. It uses the same drive type as the source LUN.
Answer : A
A customer would like to extend their CX4 cache after purchasing Flash drives.
Which Unisphere dialog should be used to configure this feature?
- A. Storage System Properties, FAST Cache tab
- B. Storage SP Properties, Cache tab
- C. Storage SP Properties, SP Memory tab
- D. Storage System Properties, SP Cache
Answer : A
A customer has a domain and for security reasons, management and CLI features can only be performed from the SAN team workstations. How would IP filtering be configured?
- A. SAN team workstation IP addresses
- B. SPA IP addresses
- C. DNS IP addresses
- D. Management stations’ IP addresses
Answer : A
A customer has a multi-path environment using ESX 4.x native failover software connected to a CX4. What are the correct settings for this environment?
- A. ArrayCommPath: Enabled FailOverModE. 4 Policy: Fixed or Round Robin
- B. ArrayCommPath: Enabled FailOverModE. 2 Policy: Fixed and Round Robin
- C. ArrayCommPath: Disabled FailOverModE. 4 Policy: Round Robin only
- D. ArrayCommPath: Enabled FailOverModE. 2 Policy: Fixed only
Answer : A
A customer is using the Emulex HBA utility to configure server connections. They want to ensure all initiators and CLARiiON storage devices will persist should a reboot or configuration change take place.
Which HBAnyware option allows this?
- A. Target Mappings
- B. General
- C. Adapter Details
- D. Driver Parameters
Answer : A
How is LUN visibility and ownership characterized in an ALUA-aware environment?
- A. LUNs are visible through both SPs; LUN is owned by one SP.
- B. LUNs are visible through both SPs; LUN is owned by both SPs.
- C. LUNs are visible through and owned by only one SP.
- D. LUNs are visible through one SP and owned by both SPs.
Answer : A
