Microsoft Azure Solutions Architect v1.0 (AZ-302)

Page:    1 / 4
Total 55 questions

Case Study -
This is a case study. Case studies are not timed separately. You can use as much exam time as you would like to complete each case. However, there may be additional case studies and sections on this exam. You must manage your time to ensure that you are able to complete all questions included on this exam in the time provided.
To answer the questions included in a case study, you will need to reference information that is provided in the case study. Case studies might contain exhibits and other resources that provide more information about the scenario that is described in the case study. Each question is independent of the other question on this case study.
At the end of this case study, a review screen will appear. This screen allows you to review your answers and to make changes before you move to the next sections of the exam. After you begin a new section, you cannot return to this section.

To start the case study -
To display the first question on this case study, click the Next button. Use the buttons in the left pane to explore the content of the case study before you answer the questions. Clicking these buttons displays information such as business requirements, existing environment, and problem statements. If the case study has an
All Information tab, note that the information displayed is identical to the information displayed on the subsequent tabs. When you are ready to answer a question, click the Question button to return to the question.

Background -
You are a developer for Proseware, Inc. You are developing an application that applies a set of governance policies for Proseware’s internal services, external services, and applications. The application will also provide a shared library for common functionality.

Requirements -

Policy service -
You develop and deploy a stateful ASP.NET Core 2.1 web application named Policy service to an Azure App Service Web App. The application reacts to events from Azure Event Grid and performs policy actions based on those events.
The application must include the Event Grid and Event ID field in all Application Insights telemetry.
Policy service must use Application Insights to automatically scale with the number of policy actions that it is performing.

Policies -

Log policy -
All Azure App Service Web Apps must write logs to Azure Blob storage. All log files should be saved to a container named logdrop. Logs must remain in the container for 15 days.

Authentication events -
Authentication events are used to monitor users signing in and signing out. All authentication events must be processed by Policy service. Sign outs must be processed as quickly as possible.

PolicyLib -
You have a shared library named PolicyLib that contains functionality common to all ASP.NET. Core web services and applications. The PolicyLib library must:
Exclude non-user actions from Application Insights telemetry.
Provide methods that allow a web service to scale itself.
Ensure that scaling actions do not disrupt application usage.

Other -

Anomaly detection service -
You have an anomaly detection service analyzes log anomalies. It is implemented as an Azure Machine Learning model. The model is deployed as a web service.
If an anomaly is detected, an Azure Function that emails administrators is called by using an HTTP WebHook.

Health monitoring -
All web applications and services have health monitoring at the /health service endpoint.

Issues -

Policy loss -
When you deploy Policy service, policies may not be applied if they were in the process of being applied during the deployment.

Performance issue -
When under heavy load, the anomaly detection service undergoes slowdowns and rejects connections.

Notification latency -
Users report that anomaly detection emails can sometimes arrive several minutes after an anomaly is detected.

App code -

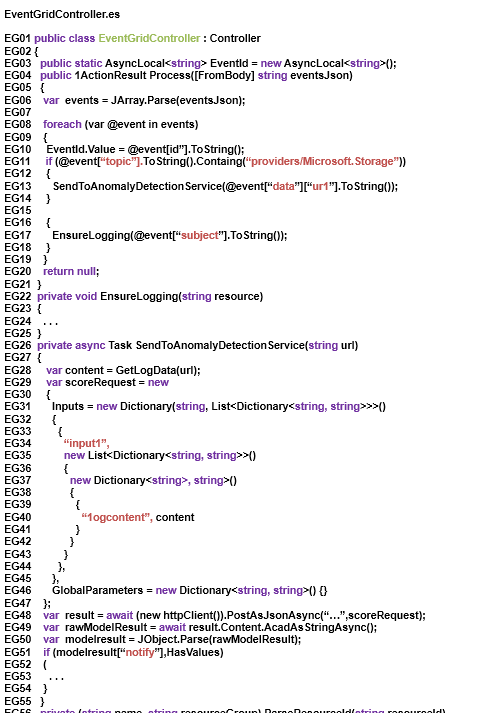

EventGridControllers -
Relevant portions of the app files are shown below. Line numbers are included for reference only and include a two-character prefix that denotes the specific file to which they belong.


Relevant portions of the app files are shown below. Line numbers are included for reference only and include a two-character prefix that denotes the specific file to which they belong.


You need to meet the scaling requirements for Policy Service.
What should you store in Azure Redis Cache?

  • A. Session state
  • B. ViewState
  • C. TempData
  • D. HttpContextItems


Answer : D

Case Study -
This is a case study. Case studies are not timed separately. You can use as much exam time as you would like to complete each case. However, there may be additional case studies and sections on this exam. You must manage your time to ensure that you are able to complete all questions included on this exam in the time provided.
To answer the questions included in a case study, you will need to reference information that is provided in the case study. Case studies might contain exhibits and other resources that provide more information about the scenario that is described in the case study. Each question is independent of the other question on this case study.
At the end of this case study, a review screen will appear. This screen allows you to review your answers and to make changes before you move to the next sections of the exam. After you begin a new section, you cannot return to this section.

To start the case study -
To display the first question on this case study, click the Next button. Use the buttons in the left pane to explore the content of the case study before you answer the questions. Clicking these buttons displays information such as business requirements, existing environment, and problem statements. If the case study has an
All Information tab, note that the information displayed is identical to the information displayed on the subsequent tabs. When you are ready to answer a question, click the Question button to return to the question.

Background -
You are a developer for Proseware, Inc. You are developing an application that applies a set of governance policies for Proseware’s internal services, external services, and applications. The application will also provide a shared library for common functionality.

Requirements -

Policy service -
You develop and deploy a stateful ASP.NET Core 2.1 web application named Policy service to an Azure App Service Web App. The application reacts to events from Azure Event Grid and performs policy actions based on those events.
The application must include the Event Grid and Event ID field in all Application Insights telemetry.
Policy service must use Application Insights to automatically scale with the number of policy actions that it is performing.

Policies -

Log policy -
All Azure App Service Web Apps must write logs to Azure Blob storage. All log files should be saved to a container named logdrop. Logs must remain in the container for 15 days.

Authentication events -
Authentication events are used to monitor users signing in and signing out. All authentication events must be processed by Policy service. Sign outs must be processed as quickly as possible.

PolicyLib -
You have a shared library named PolicyLib that contains functionality common to all ASP.NET. Core web services and applications. The PolicyLib library must:
Exclude non-user actions from Application Insights telemetry.
Provide methods that allow a web service to scale itself.
Ensure that scaling actions do not disrupt application usage.

Other -

Anomaly detection service -
You have an anomaly detection service analyzes log anomalies. It is implemented as an Azure Machine Learning model. The model is deployed as a web service.
If an anomaly is detected, an Azure Function that emails administrators is called by using an HTTP WebHook.

Health monitoring -
All web applications and services have health monitoring at the /health service endpoint.

Issues -

Policy loss -
When you deploy Policy service, policies may not be applied if they were in the process of being applied during the deployment.

Performance issue -
When under heavy load, the anomaly detection service undergoes slowdowns and rejects connections.

Notification latency -
Users report that anomaly detection emails can sometimes arrive several minutes after an anomaly is detected.

App code -

EventGridControllers -
Relevant portions of the app files are shown below. Line numbers are included for reference only and include a two-character prefix that denotes the specific file to which they belong.


Relevant portions of the app files are shown below. Line numbers are included for reference only and include a two-character prefix that denotes the specific file to which they belong.


You need to ensure that the solution can meet the scaling requirements for Policy Service.
Which Azure Application Insights data model should you use?

  • A. an Application Insights trace
  • B. an Application Insights metric
  • C. an Application Insights dependency
  • D. an Application Insights event


Answer : B

You create an Azure Time Series Insights event handler.
You need to send data over the network as efficiently as possible and optimize query performance.
What should you do?

  • A. Use a Tag ID.
  • B. Use reference data.
  • C. Send all properties.
  • D. create a query plan.


Answer : B

DRAG DROP -
You develop a web app that needs to use image analysis and processing for identifying individuals.
This involves rendering of large three-dimensional images stored in Azure storage and performing GRP-intensive calculations on the processed images for input into other services. Scaling and provisioning of the underlying infrastructure needs to occur during rendering and calculations as needed.
You need to find services for the tasks that will not impact the web app.
Which services should you use? To answer, drag the appropriate services to the correct tasks. Each service may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.
NOTE: Each correct selection is worth one point.
Select and Place:



Answer : Explanation

References:
https://docs.microsoft.com/en-us/azure/batch/batch-technical-overview

HOTSPOT -
You are developing a workflow solution using Azure technologies.
What should you implement to meet each requirement? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Hot Area:



Answer : Explanation

Your company has 300 virtual machines hosted in a VMWare environment. The virtual machines vary in size and have various utilization levels.
You plan to move all the virtual machines to Azure.
You need to recommend how many and what size Azure virtual machines will be required to move the current workloads to Azure. The solution must minimize administrative effort.
What should you use to make the recommendation?

  • A. Azure Advisor recommendations
  • B. Azure Cost Management
  • C. Azure Pricing Migrate
  • D. Azure Pricing calculator


Answer : C

References:
https://azure.microsoft.com/en-gb/pricing/details/azure-migrate/

You have an on-premises Hyper-V cluster. The cluster contains Hyper-V hosts that run Windows Server 2016 Datacenter. The hosts are licensed under a
Microsoft Enterprise agreement that has Software Assurance.
The Hyper-V cluster contains 30 virtual machines that run Windows Server 2012 R2. Each virtual machine runs a different workload. The workloads have predictable consumption patterns.
You plan to replace the virtual machines with Azure virtual machines that run Windows Server 2016. The virtual machines will be sized according to the consumption pattern of each workload.
You need to recommend a solution to minimize the compute costs of the Azure virtual machines.
Which two recommendations should include in the solution? Each correct answer presents part of the solution? Each correct answer presents part of the solution.
NOTE: Each correct selection is worth one point.

  • A. Configure a spending limit in the Azure account center.
  • B. Activate Azure Hybrid Benefit for the Azure virtual machines.
  • C. Purchase Azure reserved Virtual Machine Instances for the Azure virtual machines.
  • D. Create a lab in Azure DevTest Labs and place the Azure virtual machines in the lab.
  • E. Create a virtual machine scale set that uses autoscaling.


Answer : BC

References:
https://azure.microsoft.com/en-gb/pricing/hybrid-benefit/

You have 100 Standard_F2s_v2 Azure virtual machines. Each virtual machine has two network adapters.
You need to increase the network performance of the workloads running on the virtual machines. The solution must meet the following requirements:
-> The CPU-to-memory ratio must remain the same.
-> The solution must minimize costs.
What should you do?

  • A. Configure NIC teaming.
  • B. Enable SR-IOV.
  • C. Install an additional network adapter.
  • D. Enable RDMA over InfiniBand.


Answer : B

References:
https://docs.microsoft.com/en-us/azure/virtual-network/create-vm-accelerated-networking-powershell?toc=%2fazure%2fvirtual-machines%2fwindows%2ftoc.json

A company named Contoso Ltd., has a single-domain Active Directory forest named contoso.com.
Contoso is preparing to migrate all workloads to Azure. Contoso wants users to use single sign-on (SSO) when they access cloud-based services that integrate with Azure Active Directory (Azure AD).
You need to identify any objects in Active Directory that will fail to synchronize to Azure AD due to formatting issues. The solution must minimize costs.
What should you include in the solution?

  • A. Azure Advisor
  • B. Password Export Server version 3.1 (PES v3.1) in Active Directory Migration Tool (ADMT)
  • C. Azure AD Connect Health
  • D. Microsoft Office 365 IdFix


Answer : D

You host an on-premises ASP.NET Web API at the company headquarters. The Web API is consumed by applications running at the company’s branch offices using the Azure Relay service. All the users of the applications are on the same Azure Active Directory (Azure AD).
You need to ensure that the applications can consume the Web API.
What should you do?

  • A. Create separate AD groups named Senders and Receivers. In Access Control (IAM) for the relay namespace, assign Senders the Reader role and assign Receivers the Reader role.
  • B. Create a Shared Access policy for send permissions and another for Receive permissions.
  • C. Create dedicated Azure AD identities named Sender and Receiver. Assign Sender the Azure AD Identity Reader role. Assign Receiver the Azure AD Identity reader role. Configure applications to use the respective identities.
  • D. Create a Shared Access policy for the namespace. Use a connection string in the Web API and use a different connection string in consumer applications.


Answer : D

References:
https://docs.microsoft.com/en-us/azure/service-bus-relay/relay-authentication-and-authorization

HOTSPOT -
You configure OAuth 2 authorization in API Management as shown in the following exhibit.


Hot Area:



Answer : Explanation

Note: This question is a part of a series of questions that presents the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some questions sets might have more than one correct solution, while others not have a correct solution.
After you answer a question in this section, you will Not be able to return to it. As a result, these questions will not appear in the review screen.
You need to deploy resources to host a stateless web app in an Azure subscription. The solution must meet the following requirements:
-> Provide access to the full .NET framework.
-> Provide redundancy if an Azure region fails.
-> Grant administrators access to the operating system to install custom application dependencies.
Solution: You deploy a virtual machine scale set that uses autoscaling.
Does this meet the goal?

  • A. Yes
  • B. No


Answer : B

Note: This question is a part of a series of questions that presents the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some questions sets might have more than one correct solution, while others not have a correct solution.
After you answer a question in this section, you will Not be able to return to it. As a result, these questions will not appear in the review screen.
You need to deploy resources to host a stateless web app in an Azure subscription. The solution must meet the following requirements:
-> Provide access to the full .NET framework.
-> Provide redundancy if an Azure region fails.
-> Grant administrators access to the operating system to install custom application dependencies.
Solution: You deploy an Azure machine to two Azure regions, and you create a traffic manager profile.
Does this meet the goal?

  • A. Yes
  • B. No


Answer : A

Note: This question is a part of a series of questions that presents the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some questions sets might have more than one correct solution, while others not have a correct solution.
After you answer a question in this section, you will Not be able to return to it. As a result, these questions will not appear in the review screen.
You need to deploy resources to host a stateless web app in an Azure subscription. The solution must meet the following requirements:
-> Provide access to the full .NET framework.
-> Provide redundancy if an Azure region fails.
-> Grant administrators access to the operating system to install custom application dependencies.
Solution: You deploy an Azure machine to two Azure regions, and you deploy an Azure Application Gateway.
Does this meet the goal?

  • A. Yes
  • B. No


Answer : B

Explanation:
An Azure Application Gateway can connect to backend VMs in separate availability zones but not separate regions. Availability Zones are unique physical locations within an Azure region.

You plan to move a web application named App1 from an on-premises data center to Azure.
App1 depends on a custom framework that is installed on the host server.
You need to recommend a solution to host App1 in Azure. The solution must meet the following requirements:
-> App1 must be available to users if an Azure data center becomes unavailable.
-> Costs must be minimized.
What should you include in the recommendation?

  • A. In two Azure regions, deploy a load balancer and a web app.
  • B. Deploy a load balancer and a virtual machine scale set across two availability zones.
  • C. In two Azure regions, deploy a traffic manager profile and a web app.
  • D. In two Azure regions, deploy a load balancer and a virtual machine scale set.


Answer : C
