Microsoft Azure Administrator v1.0 (AZ-103)

Page:    1 / 11
Total 151 questions

You download an Azure Resource Manager template based on an existing virtual machine. The template will be used to deploy 100 virtual machines.
You need to modify the template to reference an administrative password. You must prevent the password from being stored in plain text.
What should you create to store the password?

  • A. an Azure Key Vault and an access policy
  • B. a Recovery Services vault and a backup policy
  • C. Azure Active Directory (AD) Identity Protection and an Azure policy
  • D. an Azure Storage account and an access policy


Answer : A

Explanation:
You can use a template that allows you to deploy a simple Windows VM by retrieving the password that is stored in a Key Vault. Therefore, the password is never put in plain text in the template parameter file.
References:
https://azure.microsoft.com/en-us/resources/templates/101-vm-secure-password/

HOTSPOT -

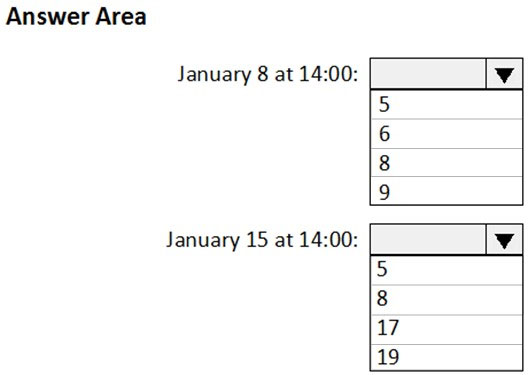

You create a virtual machine scale set named Scale1. Scale1 is configured as shown in the following exhibit.


Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the graphic.
NOTE: Each correct selection is worth one point.
Hot Area:



Answer : Explanation

Explanation:
Box 1:
The Autoscale scale out rule increases the number of VMs by 2 if the CPU threshold is 80% or higher. The initial instance count is 4 and rises to 6 when the 2 extra instances of VMs are added.
Box 2:
The Autoscale scale in rule decreases the number of VMs by 4 if the CPU threshold is 30% or lower. The initial instance count is 4 and thus cannot be reduced to
0 as the minimum instances is set to 2. Instances are only added when the CPU threshold reaches 80%.
References:
https://docs.microsoft.com/en-us/azure/azure-monitor/platform/autoscale-overview https://docs.microsoft.com/en-us/azure/azure-monitor/platform/autoscale-best-practices https://docs.microsoft.com/en-us/azure/azure-monitor/platform/autoscale-common-scale-patterns

SIMULATION -
Please wait while the virtual machine loads. Once loaded, you may proceed to the lab section. This may take a few minutes, and the wait time will not be deducted from your overall test time.
When the Next button is available, click it to access the lab section. In this section, you will perform a set of tasks in a live environment. While most functionality will be available to you as it would be in a live environment, some functionality (e.g, copy and paste, ability to navigate to external websites) will not be possible by design.
Scoring is based on the outcome of performing the tasks stated in the lab. In other words, it doesn’t matter how you accomplish the task, if you successfully perform it, you will earn credit for that task.
Labs are not timed separately, and this exam may have more than one lab that you must complete. You can use as much time as you would like to complete each lab. But, you should manage your time appropriately to ensure that you are able to complete the lab(s) and all other sections of the exam in the time provided.
Please note that once you submit your work by clicking the Next button within a lab, you will NOT be able to return to the lab.
You may now click next to proceed to the lab.

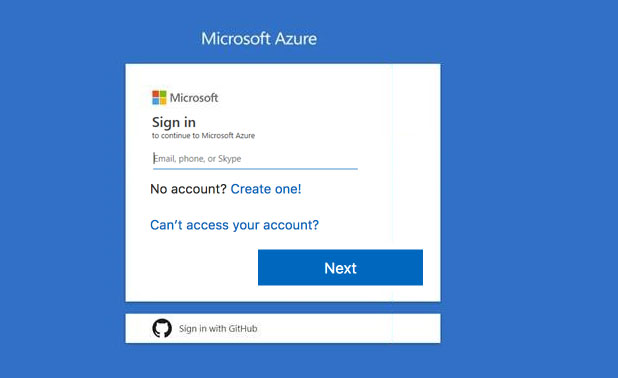

Use the following login credentials as needed:

Azure Username: XXXXXXX -

Azure Password: XXXXXXX -
The following information is for technical support purposes only:

Lab Instance: 9172796 -


You plan to back up all the Azure virtual machines in your Azure subscription at 02:00 Coordinated Universal Time (UTC) daily.
You need to prepare the Azure environment to ensure that any new virtual machines can be configured quickly for backup. The solution must ensure that all the daily backups performed at 02:00 UTC are stored for only 90 days.
What should you do from your Recovery Services vault on the Azure portal?



Answer : See solution below.

Explanation:
Task A: Create a Recovery Services vault (if a vault already exists skip this task, go to Task B below)

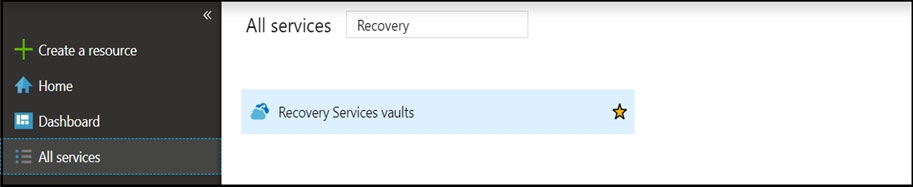

A1. From Azure Portal, On the Hub menu, click All services and in the list of resources, type Recovery Services and click Recovery Services vaults.
If there are recovery services vaults in the subscription, the vaults are listed.
A2. On the Recovery Services vaults menu, click Add.
A3. The Recovery Services vault blade opens, prompting you to provide a Name, Subscription, Resource group, and Location
Task B.

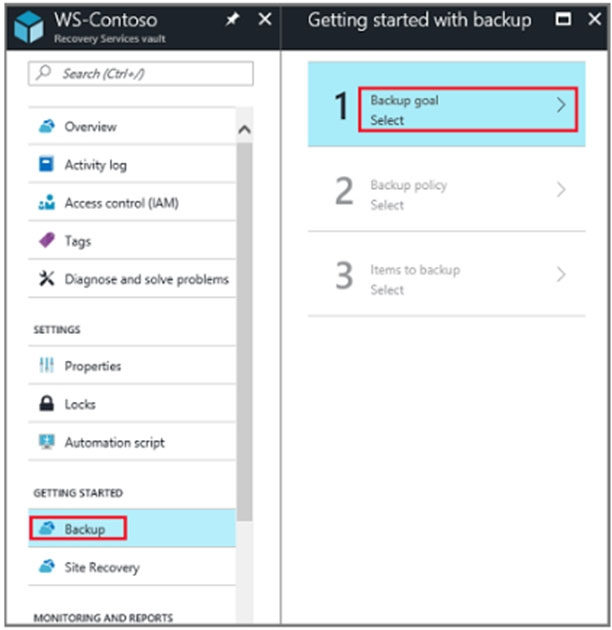

B1. On the Recovery Services vault blade (for the vault you just created), in the Getting Started section, click Backup, then on the Getting Started with Backup blade, select Backup goal.
The Backup Goal blade opens. If the Recovery Services vault has been previously configured, then the Backup Goal blades opens when you click Backup on the
Recovery Services vault blade.
B2. From the Where is your workload running? drop-down menu, select Azure.
B3. From the What do you want to backup? menu, select Virtual Machine, and click OK.


B4. Finish the Wizard.
Task C. create a backup schedule

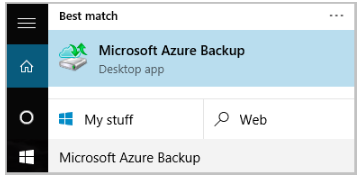

C1. Open the Microsoft Azure Backup agent. You can find it by searching your machine for Microsoft Azure Backup.

C2. In the Backup agent's Actions pane, click Schedule Backup to launch the Schedule Backup Wizard.

C3. On the Getting started page of the Schedule Backup Wizard, click Next.
C4. On the Select Items to Backup page, click Add Items.
The Select Items dialog opens.
C5. Select Blob Storage you want to protect, and then click OK.
C6. In the Select Items to Backup page, click Next.

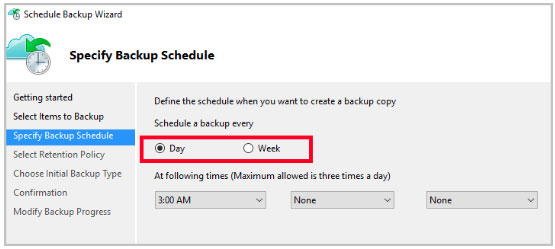

On the Specify Backup Schedule page, specify

Schedule a backup every: day -

At the following times: 2.00 AM -

C7. On the Select Retention Policy page, set it to 90 days, and click Next.

C8. Finish the Wizard.
References:
https://docs.microsoft.com/en-us/azure/backup/backup-configure-vault

SIMULATION -
Please wait while the virtual machine loads. Once loaded, you may proceed to the lab section. This may take a few minutes, and the wait time will not be deducted from your overall test time.
When the Next button is available, click it to access the lab section. In this section, you will perform a set of tasks in a live environment. While most functionality will be available to you as it would be in a live environment, some functionality (e.g, copy and paste, ability to navigate to external websites) will not be possible by design.
Scoring is based on the outcome of performing the tasks stated in the lab. In other words, it doesn’t matter how you accomplish the task, if you successfully perform it, you will earn credit for that task.
Labs are not timed separately, and this exam may have more than one lab that you must complete. You can use as much time as you would like to complete each lab. But, you should manage your time appropriately to ensure that you are able to complete the lab(s) and all other sections of the exam in the time provided.
Please note that once you submit your work by clicking the Next button within a lab, you will NOT be able to return to the lab.
You may now click next to proceed to the lab.
Use the following login credentials as needed:

Azure Username: XXXXXXX -

Azure Password: XXXXXXX -
The following information is for technical support purposes only:

Lab Instance: 9172796 -



Task5 -
You plan to connect several virtual machines to the VNET01-USEA2 virtual network.
In the Web-RGlod9272261 resource group, you need to create a virtual machine that uses the Standard_B2ms size named Web01 that runs Windows Server
2016. Web01 must be added to an availability set.
What should you do from the Azure portal?



Answer : See solution below.

Explanation:
Step 1: Choose Create a resource in the upper left-hand corner of the Azure portal.
Step 2: In the Basics tab, under Project details, make sure the correct subscription is selected and then choose Web-RGlod9272261 resource group


Step 3: Under Instance details type/select:

Virtual machine name: Web01 -

Image: Windows Server 2016 -

Size: Standard_B2ms size -
Leave the other defaults.


Step 4: Finish the Wizard -

You plan to automate the deployment of a virtual machine scale set that uses the Windows Server 2016 Datacenter image.
You need to ensure that when the scale set virtual machines are provisioned, they have web server components installed.
Which two actions should you perform? Each correct answer presents part of the solution.
NOTE: Each correct selection is worth one point.

  • A. Modify the extensionProfile section of the Azure Resource Manager template.
  • B. Create an automation account.
  • C. Upload a configuration script.
  • D. Create a new virtual machine scale set in the Azure portal.
  • E. Create an Azure policy.


Answer : AD

Explanation:
Virtual Machine Scale Sets can be used with the Azure Desired State Configuration (DSC) extension handler. Virtual machine scale sets provide a way to deploy and manage large numbers of virtual machines, and can elastically scale in and out in response to load. DSC is used to configure the VMs as they come online so they are running the production software.
References:
https://docs.microsoft.com/en-us/azure/virtual-machine-scale-sets/virtual-machine-scale-sets-dsc

DRAG DROP -
You have two Azure virtual machines named VM1 and VM2. VM1 has a single data disk named Disk1.
You need to attach Disk1 to VM2. The solution must minimize downtime for both virtual machines.
Which four actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.
Select and Place:



Answer : Explanation

Explanation:
Step 1: Stop VM1.
Step 2: Detach Disk1 from VM1.

Step 3: Attach Disk1 to VM2 -

Attach an existing disk -
Follow these steps to reattach an existing available data disk to a running VM.
1. Select a running VM for which you want to reattach a data disk.
2. From the menu on the left, select Disks.
3. Select Attach existing to attach an available data disk to the VM.
4. From the Attach existing disk pane, select OK.
Step 4: Start VM1.
Detach a data disk using the portal
1. In the left menu, select Virtual Machines.
2. Select the virtual machine that has the data disk you want to detach and click Stop to deallocate the VM.
3. In the virtual machine pane, select Disks.
4. At the top of the Disks pane, select Edit.
5. In the Disks pane, to the far right of the data disk that you would like to detach, click the Detach button image detach button.
6. After the disk has been removed, click Save on the top of the pane.
7. In the virtual machine pane, click Overview and then click the Start button at the top of the pane to restart the VM.
8. The disk stays in storage but is no longer attached to a virtual machine.
References:
https://docs.microsoft.com/en-us/azure/virtual-machines/windows/detach-disk https://docs.microsoft.com/en-us/azure/lab-services/devtest-lab-attach-detach-data-disk

HOTSPOT -
You have an Azure subscription named Subscription1. Subscription1 contains a virtual machine named VM1.
You install and configure a web server and a DNS server on VM1.
VM1 has the effective network security rules shown in the following exhibit.


Use the drop-down menus to select the answer choice that completes each statement based on the information presented.
NOTE: Each correct selection is worth one point.
Hot Area:



Answer : Explanation

Explanation:
Box 1:
Rule2 blocks ports 50-60, which includes port 53, the DNS port. Internet users can reach the Web server, since it uses port 80.
Box 2:
If Rule2 is removed internet users can reach the DNS server as well.
Note: Rules are processed in priority order, with lower numbers processed before higher numbers, because lower numbers have higher priority. Once traffic matches a rule, processing stops. As a result, any rules that exist with lower priorities (higher numbers) that have the same attributes as rules with higher priorities are not processed.
References:
https://docs.microsoft.com/en-us/azure/virtual-network/security-overview

DRAG DROP -
You have an Azure Linux virtual machine that is protected by Azure Backup.
One week ago, two files were deleted from the virtual machine.
You need to restore the deleted files to an on-premises computer as quickly as possible.
Which four actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.
Select and Place:



Answer : Explanation

Explanation:
To restore files or folders from the recovery point, go to the virtual machine and choose the desired recovery point.
Step 0. In the virtual machine's menu, click Backup to open the Backup dashboard.
Step 1. In the Backup dashboard menu, click File Recovery.
Step 2. From the Select recovery point drop-down menu, select the recovery point that holds the files you want. By default, the latest recovery point is already selected.
Step 3: To download the software used to copy files from the recovery point, click Download Executable (for Windows Azure VM) or Download Script (for Linux
Azure VM, a python script is generated).
Step 4: Copy the files by using AzCopy
AzCopy is a command-line utility designed for copying data to/from Microsoft Azure Blob, File, and Table storage, using simple commands designed for optimal performance. You can copy data between a file system and a storage account, or between storage accounts.
References:
https://docs.microsoft.com/en-us/azure/backup/backup-azure-restore-files-from-vm https://docs.microsoft.com/en-us/azure/storage/common/storage-use-azcopy

SIMULATION -
Please wait while the virtual machine loads. Once loaded, you may proceed to the lab section. This may take a few minutes, and the wait time will not be deducted from your overall test time.
When the Next button is available, click it to access the lab section. In this section, you will perform a set of tasks in a live environment. While most functionality will be available to you as it would be in a live environment, some functionality (e.g, copy and paste, ability to navigate to external websites) will not be possible by design.
Scoring is based on the outcome of performing the tasks stated in the lab. In other words, it doesn’t matter how you accomplish the task, if you successfully perform it, you will earn credit for that task.
Labs are not timed separately, and this exam may have more than one lab that you must complete. You can use as much time as you would like to complete each lab. But, you should manage your time appropriately to ensure that you are able to complete the lab(s) and all other sections of the exam in the time provided.
Please note that once you submit your work by clicking the Next button within a lab, you will NOT be able to return to the lab.
You may now click next to proceed to the lab.
Use the following login credentials as needed:

Azure Username: XXXXXXX -

Azure Password: XXXXXXX -
The following information is for technical support purposes only:

Lab Instance: 9172796 -


You plan to protect on-premises virtual machines and Azure virtual machines by using Azure Backup.
You need to prepare the backup infrastructure in Azure. The solution must minimize the cost of storing the backups in Azure.
What should you do from the Azure portal?



Answer : See solution below.

Explanation:
First, create Recovery Services vault.
Step 1: On the left-hand menu, select All services and in the services list, type Recovery Services. As you type, the list of resources filters. When you see
Recovery Services vaults in the list, select it to open the Recovery Services vaults menu.

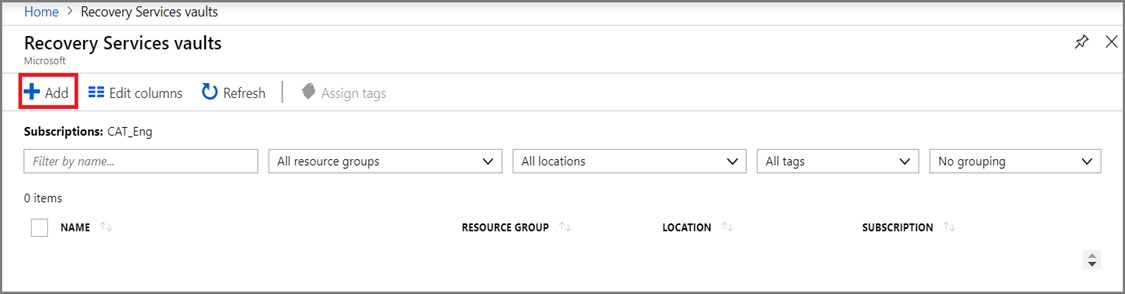

Step 2: In the Recovery Services vaults menu, click Add to open the Recovery Services vault menu.

Step 3: In the Recovery Services vault menu, for example,
Type myRecoveryServicesVault in Name.
The current subscription ID appears in Subscription. If you have additional subscriptions, you could choose another subscription for the new vault.
For Resource group select Use existing and choose myResourceGroup. If myResourceGroup doesn't exist, select Create new and type myResourceGroup.
From the Location drop-down menu, choose West Europe.
Click Create to create your Recovery Services vault.
References:
https://docs.microsoft.com/en-us/azure/backup/tutorial-backup-vm-at-scale

SIMULATION -
Please wait while the virtual machine loads. Once loaded, you may proceed to the lab section. This may take a few minutes, and the wait time will not be deducted from your overall test time.
When the Next button is available, click it to access the lab section. In this section, you will perform a set of tasks in a live environment. While most functionality will be available to you as it would be in a live environment, some functionality (e.g, copy and paste, ability to navigate to external websites) will not be possible by design.
Scoring is based on the outcome of performing the tasks stated in the lab. In other words, it doesn’t matter how you accomplish the task, if you successfully perform it, you will earn credit for that task.
Labs are not timed separately, and this exam may have more than one lab that you must complete. You can use as much time as you would like to complete each lab. But, you should manage your time appropriately to ensure that you are able to complete the lab(s) and all other sections of the exam in the time provided.
Please note that once you submit your work by clicking the Next button within a lab, you will NOT be able to return to the lab.
You may now click next to proceed to the lab.



You need to deploy two Azure virtual machines named VM1003a and VM1003b based on an Ubuntu Server image. The deployment must meet the following requirements:
-> Provide a Service Level Agreement (SLA) of 99.95 percent availability.
-> Use managed disks.
What should you do from the Azure portal?



Answer : See solution below.

Explanation:
Step 1: Open the Azure portal.
Step 2: On the left menu, select All resources. You can sort the resources by Type to easily find your images.
Step 3: Select the image you want to use from the list. The image Overview page opens.
Step 4: Select Create VM from the menu.
Step 5: Enter the virtual machine information.
Select VM1003a as the name for the first Virtual machine.
The user name and password entered here will be used to log in to the virtual machine. When complete, select OK. You can create the new VM in an existing resource group, or choose Create new to create a new resource group to store the VM.
Step 6: Select a size for the VM. To see more sizes, select View all or change the Supported disk type filter.
Step 7: Under Settings, make changes as necessary and select OK.
Step 8: On the summary page, you should see your image name listed as a Private image. Select Ok to start the virtual machine deployment.
Repeat the procedure for the second VM and name it VM1003b.
References:
https://docs.microsoft.com/en-us/azure/virtual-machines/windows/create-vm-generalized-managed

SIMULATION -
Please wait while the virtual machine loads. Once loaded, you may proceed to the lab section. This may take a few minutes, and the wait time will not be deducted from your overall test time.
When the Next button is available, click it to access the lab section. In this section, you will perform a set of tasks in a live environment. While most functionality will be available to you as it would be in a live environment, some functionality (e.g, copy and paste, ability to navigate to external websites) will not be possible by design.
Scoring is based on the outcome of performing the tasks stated in the lab. In other words, it doesn’t matter how you accomplish the task, if you successfully perform it, you will earn credit for that task.
Labs are not timed separately, and this exam may have more than one lab that you must complete. You can use as much time as you would like to complete each lab. But, you should manage your time appropriately to ensure that you are able to complete the lab(s) and all other sections of the exam in the time provided.
Please note that once you submit your work by clicking the Next button within a lab, you will NOT be able to return to the lab.
You may now click next to proceed to the lab.



You need to deploy an Azure virtual machine named VM1004a based on an Ubuntu Server image, and then configure VM1004a to meet the following requirements:
-> The virtual machine must contain data disks that can store at least 15 TB of data.
-> The data disks must be able to provide at least 2.000 IOPS.
-> Storage costs must be minimized.
What should you do from the Azure portal?



Answer : See solution below.

Explanation:
Step 1: Open the Azure portal.
Step 2: On the left menu, select All resources. You can sort the resources by Type to easily find your images.
Step 3: Select the image you want to use from the list. The image Overview page opens.
Step 4: Select Create VM from the menu.
Step 5: Enter the virtual machine information.
Select VM1004a as the name for the first Virtual machine.
The user name and password entered here will be used to log in to the virtual machine. When complete, select OK. You can create the new VM in an existing resource group, or choose Create new to create a new resource group to store the VM.
Step 6: Select a size for the VM. To see more sizes, select View all or change the Supported disk type filter.
To meet the requirements select Standard SSD E70.
Standard SSD E70: Up to 16 TB, IOPS up to 4000, $1,228.80/month
Standard SSD Managed Disks, a low-cost SSD offering, are optimized for test and entry-level production workloads requiring consistent latency.
Step 7: Under Settings, make changes as necessary and select OK.
Step 8: On the summary page, you should see your image name listed as a Private image. Select Ok to start the virtual machine deployment.
Reference:
https://docs.microsoft.com/en-us/azure/virtual-machines/windows/create-vm-generalized-managed

You have an Azure subscription that contains a virtual machine named VM1. VM1 hosts a line-of-business application that is available 24 hours a day. VM1 has one network interface and one managed disk. VM1 uses the D4s v3 size.
You plan to make the following changes to VM1:
-> Change the size to D8s v3.
-> Add a 500-GB managed disk.
-> Add the Puppet Agent extension.
-> Attach an additional network interface.
Which change will cause downtime for VM1?

  • A. Add the Puppet Agent extension.
  • B. Change the size to D8s v3.
  • C. Add a 500-GB managed disk.
  • D. Attach an additional network interface.


Answer : B

Explanation:
While resizing the VM it must be in a stopped state.
References:
https://azure.microsoft.com/en-us/blog/resize-virtual-machines/

You have an Azure virtual machine named VM1 that you use for testing. VM1 is protected by Azure Backup.
You delete VM1.
You need to remove the backup data stored for VM1.
What should you do first?

  • A. Delete the Recovery Services vault.
  • B. Delete the storage account.
  • C. Stop the backup
  • D. Modify the backup policy.


Answer : D

Explanation:
Azure Backup provides backup for virtual machines â€" created through both the classic deployment model and the Azure Resource Manager deployment model â€" by using custom-defined backup policies in a Recovery Services vault.
With the release of backup policy management, customers can manage backup policies and model them to meet their changing requirements from a single window. Customers can edit a policy, associate more virtual machines to a policy, and delete unnecessary policies to meet their compliance requirements.
Incorrect Answers:
B: You can't delete a Recovery Services vault if it is registered to a server and holds backup data. If you try to delete a vault, but can't, the vault is still configured to receive backup data.
References:
https://azure.microsoft.com/en-in/updates/azure-vm-backup-policy-management/

You have an Azure subscription named Subscription1.
You deploy a Linux virtual machine named VM1 to Subscription1.
You need to monitor the metrics and the logs of VM1.
What should you use?

  • A. the AzurePerformanceDiagnostics extension
  • B. Azure HDInsight
  • C. Linux Diagnostic Extension (LAD) 3.0
  • D. Azure Analysis Services


Answer : A

Explanation:
You can use extensions to configure diagnostics on your VMs to collect additional metric data.
The basic host metrics are available, but to see more granular and VM-specific metrics, you need to install the Azure diagnostics extension on the VM. The Azure diagnostics extension allows additional monitoring and diagnostics data to be retrieved from the VM.
References:
https://docs.microsoft.com/en-us/azure/virtual-machines/linux/tutorial-monitoring

You have an Azure subscription that contains 100 virtual machines.
You regularly create and delete virtual machines.
You need to identify unattached disks that can be deleted.
What should you do?

  • A. From Microsoft Azure Storage Explorer, view the Account Management properties.
  • B. From the Azure portal, configure the Advisor recommendations.
  • C. From Azure Cost Management, view Advisor Recommendations.
  • D. From Azure Cost Management, view Cost Analysis.


Answer : A

Explanation:
You can find unused disks in the Azure Storage Explorer console.Once you drill down to the Blob containers under a storage account, you can see the lease state of the residing VHD (the lease state determines if the VHD is being used by any resource) and the VM to which it is leased out. If you find that the lease state and the VM fields are blank, it means that the VHD in question is unused. The screenshot below shows two active VHDs being used by VMs as data and OS disks.
The name of the VM and lease state are shown in the "VM Name" and "Lease State" columns, respectively.
Reference:
https://cloud.netapp.com/blog/reduce-azure-storage-costs

Page:    1 / 11
Total 151 questions
