74-697 by Microsoft Actual Free Exam Q&As

Question 1

You have a technician computer namedComputer1that runs Windows 8.Computer1has the
Windows Assessment and Deployment Kit (Windows ADK) installed.
You have a Windows 8 image named Imagel.wim that has Microsoft Office 2010 installed.
You need to update the image to use Office 2010 Service Pack 1 (SP1).

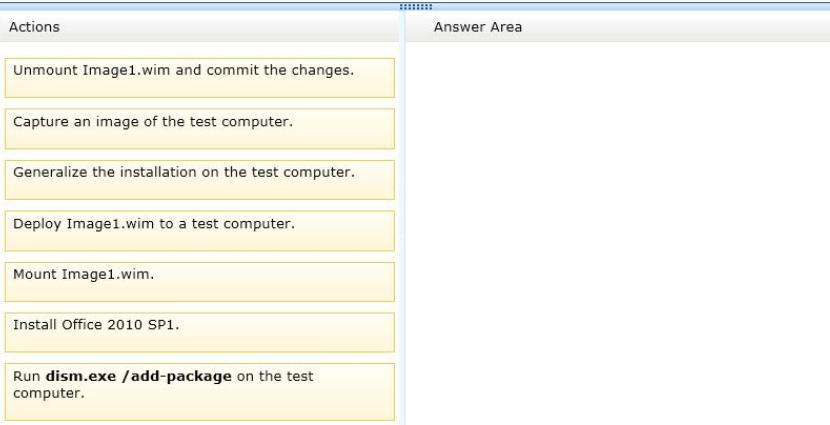

Which four actions should you perform in sequence? (To answer, move the appropriate four actions from the list of actions to the answer area and arrange them in the correct order.)

Answer :

Explanation:
Box 1:Deploy Image1.wim to a test computer.
Box 2:Install Office 2010 SP1.
Box 3:Generalize the installation on the test computer.
Box 4:Capture an image of the test computer.
Note:
* Box 3:To prepare the image, you must remove the computer-specific information from the the image.

Question 2

You are preparing a GPT disk for a Unified Extensible Firmware Interface (UEFI)-based computer from Windows Preinstallation Environment (Windows PE).
You need to identify which file system must be used for the EFI system partition, the MSR partition, and the Windows partition.

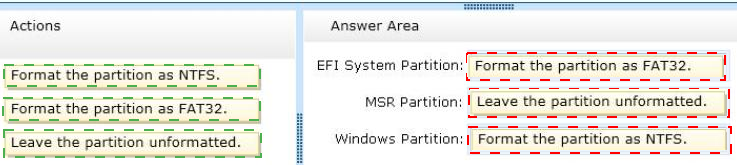

What should you identify? (To answer, drag the appropriate actions to the correct partitions. Each action may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.)

Answer :

Explanation:

* Box 1:
The EFI System partition is formatted using the FAT12, FAT16 or FAT32 file system.
* Box 2:
MSR is used to reserve space ahead of time for software components which will later allocate space by reducing the size of the MSR and creating a component specific partition.
For example the conversion of a basic disk to a dynamic disk requires space for holding the dynamic disk database.
MSR does not contain any meaningful data itself.
Microsoft requires an MSR on every GPT disk, and recommends it to be created as the disk is initially partitioned. It should be located after the EFI System Partition (ESP) and any
OEM service partitions, but it must be located before any primary partitions of bootable windows operating systems. Initial size of MSR is 32 MB on disks smaller than 16 GB, or
128 MB on other disks.
The MSR partition is not visible within Microsoft Windows Disk Management GUI-control utility but it is listed with Microsoft command line utility (diskpart.exe).
* Box 3: NTFS is the best choice for the Windows partition.
Note:
*The GUID Partition Table (GPT) was introduced as part of the Unified Extensible
Firmware Interface (UEFI) initiative. GPT provides a more flexible mechanism for partitioning disks than the older Master Boot Record (MBR) partitioning scheme that was common to PCs.

Question 3

You work for an OEM system builder.
You use an answer file to provide support information on the client computers that you install. The computers run Windows 8.
You need to verify whether the support information appears in Windows 8.
You start a computer that you installed.
Where should you look for the support information?

A. System in Control Panel
B. Windows Help and Support
C. The Windows Welcome screen
D. The Start screen

Answer : A

Question 4

Your company plans to implement a deployment environment.
The company identifies the following requirements for the planned implementation:
-> Install multiple computers simultaneously.
-> Use the least amount of network traffic to deploy images.
-> Automatically start each deployment only when 10 computers are ready for installation.
-> Ensure that all customers accept the End-User License Agreement (EULA) the first time they start their computer.
A manager at the company recommends deploying generalized images by using Windows
Deployment Services (WDS) configured for unicast deployment.
You need to identify which requirements the recommendation meets.
Which two requirements should you identify? (Each correct answer presents part of the solution. Choose two.)

A. Automatically start the deployment only when 10 computers are ready to be installation.
B. Install multiple computers simultaneously.
C. Ensure that all customers accept the EULA the first time they start their computer.
D. Use the least amount of network traffic to deploy images.

Answer : B,C

Explanation:
*When performing multicast deployments, the image is copied and then applied. However, when using unicast functionality, the image is applied over the network and is not copied to the client computer. All data is sent in compressed blocks of data. When these data blocks are received, the data is expanded and written to the disk.
*WDS uses unicast to send images to clients by default. If you are only imaging 1 or 2 computers, thats fine; however if you needed to image 50 computers at once, it would cause enormous amounts of traffic. That is where the multicast comes in.
With WDS, multicast uses a round robin approach. Computers can join the multicast whenever they want and if they miss out on the first 100 packets, they will get them next time around. This means that you can set up 50 computers, start them at the same time, and the image will get sent once, but will be received by all 50 computers. This greatly reduces network bandwidth utilization and speeds up imaging performance when imaging large numbers of machines.(not D)
*As an example, imagine you need to deploy Windows 7 Ultimate to 10 clients. If you used 10 unicast transmissions at the same time, the WDS server would try to send
10 different images to these clients. Each transmission would be competing with the others for network bandwidth, and each would be consuming additional resources on the server. (B)
However, if you configured a multicast transmission, you could deploy a single image to all 10 clients simultaneously. Only a single image is being sent over the network and being processed by the server.

Question 5

A technician applies an image of Windows 7 to a client computer.
The technician reports that several errors occurred during the Windows Welcome phase of the setup.
You need to view the errors that occurred during Windows Welcome.
Which file should you view?

A. Setupact.log
B. Setupapi.offline.log
C. Cbs_unattend.log
D. Setupapi.dev.log
