Total 107 questions
You plan to implement guest clustering.
You review the following information:

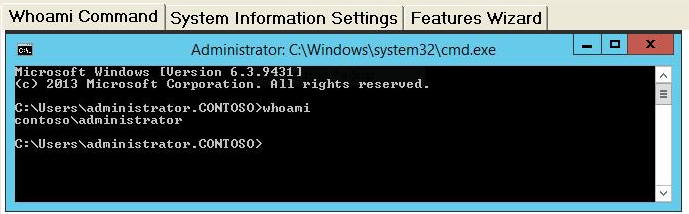

Whoami results, as shown in the Whoami Command exhibit (Click the Exhibit button.)
System information settings, as shown in the System Information Settings exhibit (Click the Exhibit button.)

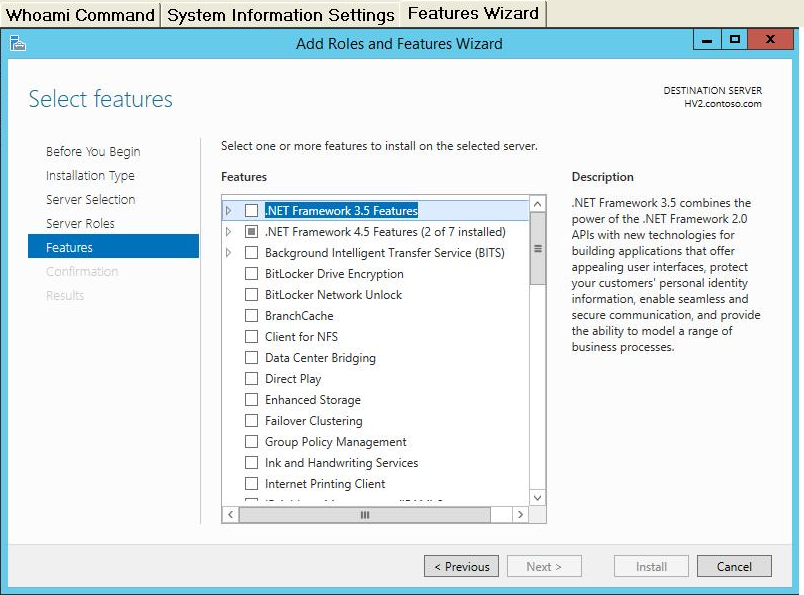

The Add Roles and Features Wizard, as shown in the Features Wizard exhibit (Click the
Exhibit button.)
You need to ensure that you can implement guest clustering.

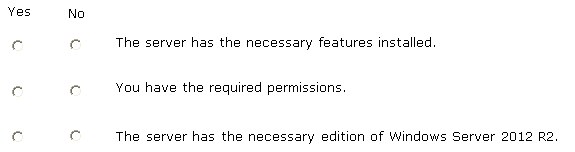

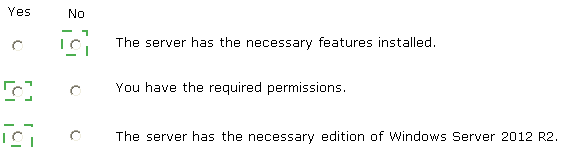

For each of the following statements, select Yes if the statement is true. Otherwise, select
No. Each correct selection is worth one point.
Answer :
Explanation:
[7]
The Failover Clustering feature needs to be installed.
Ref: http://technet.microsoft.com/en-us/library/dn265980.aspx
A company uses System Center 2012 R2 Operations Manager and System Center 2012
R2 Virtual Machine Manager (VMM). You need to provide a detailed overview of the fabric that services the company's private clouds. What should you do?
- A. Import the Management Pack for System Center 2012 R2 VMM Fabric Dashboard.
- B. Use the System Center Global Service Monitor as part of the monitoring strategy.
- C. Import the Management Pack for System Center 2012 Service Manager.
- D. Use the Windows Intune service as part of the monitoring strategy.
Answer : A
Explanation:
Ref: http://www.networkworld.com/community/blog/whats-new-operations-manager- system-center-2012-r2
Fabric Monitoring -
A close integration between System Center 2012 R2 Virtual Machine Manager and System
Center 2012 R2 Operations Manager introduces System Center cloud monitoring of virtual layers for private cloud environments. To get this new functionality, use the System Center
2012 Management Pack for System Center 2012 R2 Virtual Machine Manager Dashboard, which is imported automatically when you integrate Operations Manager and Virtual
Machine Manager. For information about how to integrate Operations Manager and Virtual
Machine Manager, see Configuring Operations Manager Integration with VMM.
A company has a network that contains one Active Directory Domain Services (AD DS) domain. The domain and forest functional levels are set to Windows Server 2008. All domain controllers run Windows Server 2012.
You need to enable the Active Directory Recycle Bin for the forest. What should you do?
- A. Raise the domain and forest functional levels to Windows Server 2012 R2.
- B. Deploy new domain controllers that have Windows Server 2012 R2 installed.
- C. Raise the domain and forest functional levels to Windows Server 2008 R2.
- D. Upgrade the domain controllers to Windows Server 2012 R2.
Answer : C
Explanation:
Ref: http://technet.microsoft.com/en-us/library/dd379484(v=ws.10).aspx
By default. Active Directory Recycle Bin in Windows Server 2008 R2 is disabled. To enable it, you must first raise the forest functional level of your AD DS or AD LDS environment to
Windows Server 2008 R2, which in turn requires all forest domain controllers or all servers that host instances of AD LDS configuration sets to be running Windows Server 2008 R2.
After you set the forest functional level of your environment to Windows Server 2008 R2, you can use the instructions in this guide to enable Active Directory Recycle Bin.

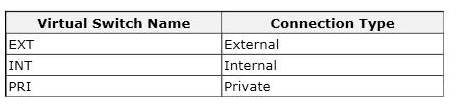

You have a Windows Server 2012 R2 server with the Hyper-V role installed. The host server hosts a virtual machine (VM) named NYC-VM. The virtual switches for the host server are configured as follows:
NYC-VM must meet the following requirements:
-> communicate with all of the VMs on the same virtualization host server
-> communicate with the virtualization host server
-> must NOT communicate with VMs on different virtualization host servers
You need to configure the virtual switch for NYC-VM.
What should you do?
- A. On NYC-VM, enable virtual LAN identification.
- B. Run the Windows PowerShell command Connect-VMNetworkAdapter -VMName NYC- VM -SwitchName INT.
- C. Connect NYC-VM to the EXT switch.
- D. Run the Windows PowerShell command Connect-VMNetworkAdapter -VMName NYC- VM -SwitchName EXT.
Answer : A
Explanation:
http://technet.microsoft.com/en-us/library/cc816585%28v=ws.10%29.aspx
You administer the following Windows Server 2012 R2 Hyper-V environment:
The environment also contains a computer named WORKSTATION1 that runs Windows 8.
You need to perform maintenance on SERVER1. You have the following requirements:
-> Perform live migration for VM-APP1.
-> Use one of the Hyper-V management tools on WORKSTATION1 to perform the live migration tasks.
You need to migrate VM-APP1.

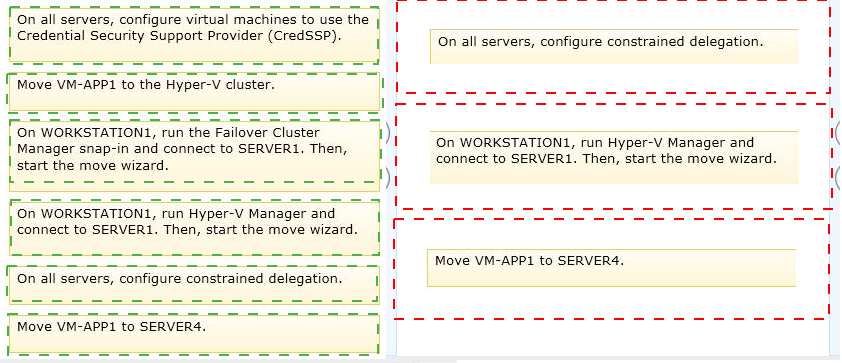

Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.
Answer :
Explanation:
Box 1:
Box 2:
Box 3:
Note:
* Box 1:
/ (Optional) Configure constrained delegation
If you have decided to use Kerberos to authenticate live migration traffic, configure constrained delegation before you proceed to the rest of the steps.
/ To manage the tasks with remote management tools, configure constrained delegation and select Kerberos as the authentication protocol.
* (Box2, Box 3) To move a running virtual machine
Connect to the source server using one of the following methods (unless you are signed in to the source server):
/ From Server Manager, click All Servers and then click the name of the source server.
/ From Hyper-V Manager, in the navigation pane, click the name of the source server.
You are the virtualization administrator for an organization that manages private and public cloud resources.
The organization has a Windows Azure subscription. You plan to move virtual machines to
Windows Azure Infrastructure as a Service (IaaS) by using System Center 2012 R2 App
Controller.
You need to create a virtual machine template that allows virtual machines to be moved from Hyper-V to Windows Azure.
What should you do?
- A. Create a new virtual machine that uses a .vhd file. Run the Sysprep tool on the virtual machine.
- B. Create a new Generation 2 virtual machine that uses a .vhdx file that is attached to a SCSI controller. Run the Sysprep tool on the virtual machine.
- C. Create a new virtual machine that uses a .vhdx file. Run the Sysprep tool on the virtual machine.
- D. Create a virtual machine by using a differencing disk. Use the Clone a virtual machine option to create new virtual machines.
Answer : A
Explanation:
http://blogs.msdn.com/b/how24/archive/2012/11/06/windows-azure-iaas-upload-a-custom- build-vmtemplate.aspx http://blogs.technet.com/b/kevinremde/archive/2013/05/29/migrating-vms-from-hyper-v-to- windows-azure-20-key-scenarios-with-windows-azure-infrastructure-services.aspx
Note: Azure v1.7 and below does not support VHDX files
Ref: http://www.windowsazure.com/en-us/documentation/articles/virtual-machines-create- upload-vhd-windows-server/
You administer a Hyper-V environment that includes two servers named SERVER1 and
SERVER2. SERVER1 runs Windows Server 2008 R2 SP1. SERVER2 runs Windows
Server 2012 R2. Both servers have the Hyper-V role installed.
SERVER1 contains a virtual machine named VM-APP1. VM-APP1 runs Windows Server
2003 R2 SP2.
You plan to migrate VM-APP1 from SERVER1 to SERVER2. To test the process, you migrate a copy of VM-APP1 from SERVER1 to SERVER2 and observe that the mouse does not function. The mouse on VM-APP1 must work correctly after you migrate it to
SERVER2.
You need to migrate the VM-APP1.

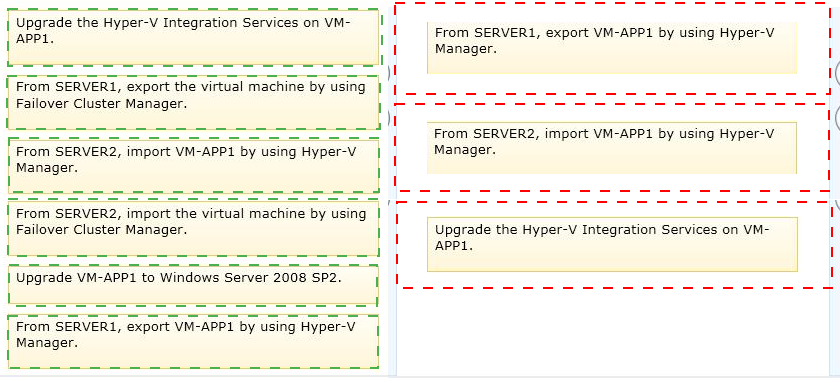

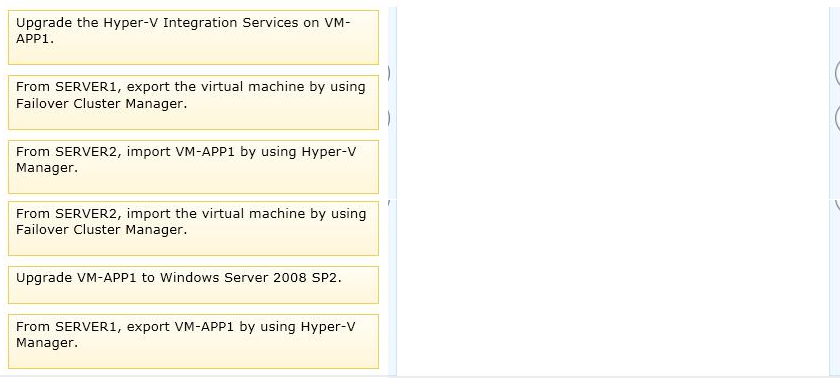

Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.
Answer :
Explanation:
Box 1:
Box 2:
Box 3:
Note:
* You want to move one or more virtual machines to a new host server. Microsoft makes this possible through the Hyper-V Managers Import and Export functions.
- You want to move one or more virtual machines to a new host server. Microsoft makes this possible through the Hyper-V Managers Import and Export functions.
- To ensure the mouse works, Hyper-V integration services must be updated.
You can install this after you boot up the VM and log in with an administrative account.
Alternatively, navigate to the device containing the ISO image and double click on it to invoke the setup process.
If an earlier version of Hyper-V Integration Services is detected by the setup process, the option will be provided to install the latest release in place of the old release.
Once completed, the guest system will need to be rebooted before the services will be active.
A company has seven Windows Server 2012 R2 virtual machines (VMs). The VMs are running and are accessible over the network. You plan to copy a large .ISO file from the host server to each of the VMs.
The copy operations must meet the following requirements:
-> The VMs must remain accessible over the network during the copy operations.
-> The copy operations must NOT use a network connection.
You need to configure the VMs. What should you do on each VM?
- A. Enable the Guest services integration service.
- B. Enable the Data Exchange integration service.
- C. Add a network adapter, and then enable the virtual machine queue (VMQ) option on the adapters.
- D. Set the value of the Smart Paging File Location property to %SYSTEMROOT%\temp.
Answer : A
Explanation: Ref: http://technet.microsoft.com/en-us/library/dn282278.aspx
Q: What is the new Guest services integration service in Windows Server 2012 R2 Hyper-
V?
A: Several integration services are available for virtual machines (VMs) such as time synchronization, heartbeat, backup, OS shutdown, and data exchange. In Windows Server
2012 R2, a new integration service has been added, Guest services. Guest services enables the copying of files to a VM using WMI APIs or using the new Copy-VMFile
Windows -
PowerShell cmdlet.
A company has a highly-secure network infrastructure environment. All servers in the environment run Windows Server 2012 R2.
You must create a new virtual machine (VM) that meets the following requirements:
-> The VM must minimize the risk that unauthorized firmware will run when the VM starts.
-> The VM must load the operating system only if all operating system files have a valid signature.
You need to create the new VM. What should you do?
- A. Create a Generation 2 VM and disable Secure Boot.
- B. Create a Generation 1 VM and use a synthetic network adapter.
- C. Create a Generation 1 VM and enable Secure Boot.
- D. Create a Generation 2 VM with the default settings.
Answer : D
Explanation: Ref: http://technet.microsoft.com/en-us/library/dn282285.aspx
Secure Boot is a feature that helps prevent unauthorized firmware, operating systems, or
UEFI drivers (also known as option ROMs) from running at boot time.
Note -
Secure Boot is enabled by default for generation 2 virtual machines. This can be modified after the virtual machine has been created.
You administer a Windows Server 2012 R2 server with the Hyper-V role installed.
You plan to integrate the Hyper-V host server with the existing storage infrastructure.
You need to configure all virtual machines (VMs).

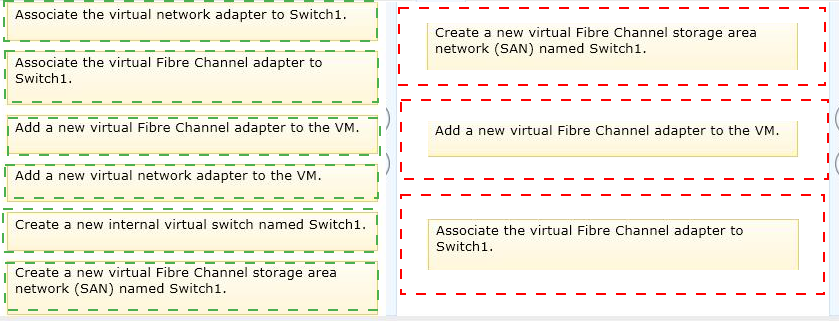

Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.
Answer :
Explanation:
F- Create a new virtual Fibre Channel storage area network (SAN) named Switch1.
C- Add a new virtual Fibre Channel Adapter to the VM.
B- Associate the virtual Fibre Channel Adapter to Switch1.
You administer two Windows 2012 R2 servers that have the Hyper-V role installed. You plan to deploy a new Hyper-V cluster. The cluster instance must NOT be added to Active
Directory. You need to deploy the cluster. What should you do?
- A. Use Hyper-V Manager to deploy the cluster.
- B. Use Failover Cluster Manager to deploy the cluster.
- C. Run the Windows PowerShell cmdlet New-Cluster. Specify ActiveDirectoryAndDNS for the AdministrativeAccessPoint parameter.
- D. Run the Windows PowerShell cmdlet New-Cluster. Specify DNS for the AdministrativeAccessPoint parameter.
Answer : D
Explanation:
Ref: http://technet.microsoft.com/en-us/library/dn265970.aspx
To deploy an Active Directory-detached cluster, you must use Windows PowerShell. You cannot use Failover
Cluster Manager.
To create the failover cluster, start Windows PowerShell as an administrator, and then use the New-Cluster cmdlet with the AdministrativeAccessPoint parameter set to a value of
DNS.
You administer a Windows Server 2012 R2 server that has the Hyper-V role installed. The server hosts three virtual machines (VMs).
One of the VMs is managed by a security engineer. The security engineer must capture traffic on another VM that is running on the same server.
You need to ensure that the security engineer can access the network traffic information from the target VM.
Which networking feature should you enable?
- A. port mirroring
- B. NIC teaming
- C. Protected network
- D. MAC address spoofing
Answer : A
Explanation:
Ref: http://technet.microsoft.com/en-us/library/jj679878.aspx#bkmk_portmirror
Port Mirroring -
With Port Mirroring, traffic sent to or from a Hyper-V Virtual Switch port is copied and sent to a mirror port. There are a range of applications for port mirroring - an entire ecosystem of network visibility companies exist that have products designed to consume port mirror data for performance management, security analysis, and network diagnostics. With Hyper-V
Virtual Switch port mirroring, you can select the switch ports that are monitored as well as the switch port that receives copies of all the traffic.
The following examples configure port mirroring so that all traffic that is sent and received by both MyVM and MyVM2 is also sent to the VM named MonitorVM.
C:\Documents and Settings\Adnan Hameed\Desktop\untitled.PNG
A company has a single Active Directory Domain Services (AD DS) domain and Windows
Server 2012 R2 servers that have the Hyper-V role installed. The company uses System
Center 2012 R2 Virtual Machine Manager (VMM) to manage the Hyper-V environment.
Users access company resources from the Internet.

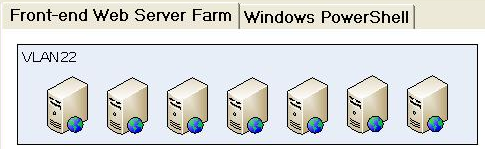

There is an existing front-end web server farm that contains virtual machines (VMs), as shown in the Front-end Web Server Farm exhibit. (Click the Exhibit button.) You use the
VMs to deliver a website to the Internet.

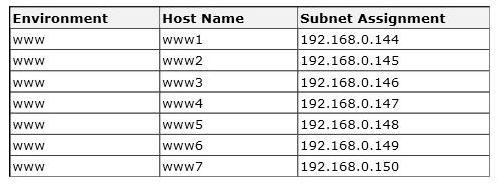

The servers are configured as shown in the following table:

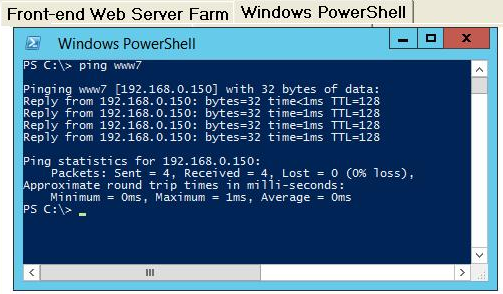

You perform connectivity tests between all of the front-end web servers. The connectivity tests all have the same results, as shown in the Windows PowerShell exhibit. (Click the
Exhibit button.)
The company plans to enhance overall security of the virtual environment. The front-end web servers must NOT be able to communicate with each other.
You need to implement changes to the environment.

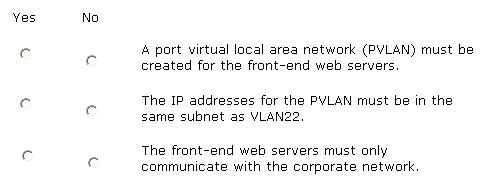

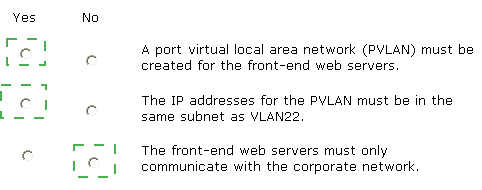

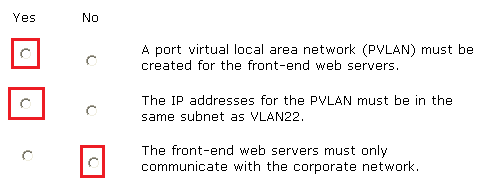

For each of the following statements, select Yes if the statement is true. Otherwise, select
No. Each correct selection is worth one point.
Answer :
Explanation:
[7]
You administer the Hyper-V environment for a large organization. The organization uses
Windows Server 2012 R2 servers that have the Hyper-V role installed and System Center
2012 R2 Virtual Machine Manager (VMM). You create a virtual machine template that has the Operations Manager 2012 R2 agent pre-installed.
You receive the following Operations console alert for all domain controller VMs that use the VM template:
The script 'AD Replication Partner Op Master Consistency' Failed to create object.
'McActiveDir.ActiveDirectory'. This is an unexpected error.
The error returned was 'ActiveX component can't create object' (OxlAD)
The Active Directory Management Pack Objects (OOMADs) components are not installed on the Domain Controller. These components are required for the monitoring scripts to run successfully. See Alert Knowledge for additional details.
You need to correct the issue for the virtual machines that use the template.
What should you do?
- A. Configure the agent to run as a user account that is a member of the Domain Admins security group.
- B. In the Administration pane on the Operations console, create a Windows Run As Account containing a user account that is a member of the Domain Admins security group. Associate this Run As Account with the AD MP Account Run As Profile.
- C. In the Administration pane on the Operations Console, find the affected agent-managed computers and enable agent proxy.
- D. Install the Active Directory Management Pack helper object on the managed computers.
Answer : D
Explanation:
The Active Directory Management Pack Objects (OOMADs) components are not installed on the Domain Controller.
These components are required for the monitoring scripts to run successfully. http://technet.microsoft.com/en-us/library/cc180617.aspx
A company has servers that run Windows Server 2012 R2. The company has one Active
Directory Domain Services (AD DS) domain.
A user reports that USB devices are not redirected when he uses the Virtual Machine
Connection tool to connect to a virtual machine. USB device redirection works for other users that connect to this VM.
You need to ensure that USB devices are redirected for all users when they connect to this
VM.
What should you do?
- A. Add the user as a member of the Administrators group on the VM.
- B. Ensure that the Allow enhanced session mode setting is set to Enabled on the VM.
- C. Ensure that the Remote Desktop Services service is running on the VM.
- D. Add the user as a member of the Administrators group on the AD DS domain.
Answer : A
Explanation: Ref: http://technet.microsoft.com/en-us/library/dn282274.aspx
Re-direction works for other users on this VM. This means that Enhanced Session Mode is already enabled on the server and VM.
Additionally, Remote Desktop Services needs to be running, and the user account you use to sign in to the virtual machine needs to be a member of the Remote Desktop Users local group or the local Administrators group.
30 days access
