Total 69 questions
The Avaya WebRTC solution uses the web intensively to make media calls from a standard web browser in the internet, into internal and secure communication premises in the enterprise.
Which statement about security between the Enterprise-edge and those standard Web browsers in the internet is true?
- A. A trust relationship based on certificates must be built to make WebRTC work.
- B. No trust relationship exists between enterprise edge security and web browsers; therefore, the security strategy is based on an Authorization Token instead.
- C. There must be a VPN connection between the Web Browser and the Enterprise-edge to build a WebRTC link.
- D. WebRTC only works within the Enterprise network. External Web Browsers must connect through an Avaya Session Border Controller for Enterprise (SBCE) via a SIP trunk.
Answer : B
Explanation:
Validation of the authorization token.
The WebRTC Snap-in will validate the authorization token created and encrypted by the web server. If the snap-in can decrypt the token and ensure that the time stamp is valid, it knows that the incoming HTTP request is valid. The time stamp will usually be short lived; on the order of 5-10seconds to protect against reply attacks.
References: Avaya WebRTC Snap-in Reference, Release 3.1 (May 2016), page 27 https://downloads.avaya.com/css/P8/documents/101013939
In Avaya Aura Messaging 6.3, which statement is true about Avaya Aura Messaging
(AAM) capacities of a system utilizing the Standard Capacity (non-High Capacity) Message
Store template?
- A. One Message Store Server supports up to 60000 user mailboxes and you can have 5 active + 1 Redundant Application Servers in a cluster.
- B. One Message Store Server supports up to 6000 user mailboxes and you can have 3 active + 1 Redundant Application Servers in a cluster.
- C. One Message Store Server supports up to 600 user mailboxes and you can have 5 active + 1 Redundant Application Servers in a cluster.
- D. One Message Store Server supports up to 1000 user mailboxes and you can have 3 active + 1 Redundant Application Servers in a cluster.
Answer : B
Explanation:
Dedicated AxC/Directory server: A physical server that manages notification capabilities and the LDAP database and provides communications between application servers and the thirdparty storage server. This server also stores user properties and name and greeting recordings.
Not all configurations require a dedicated AxC/Directory server because the AxC/Directory role runs on the Avaya-provided message store. You only need a dedicated AxC/Directory server for:
References: Avaya Aura Messaging Overview and Specification, Release 6.3.2 (January
2015) , page 20
https://downloads.avaya.com/css/P8/documents/101004642
In the Avaya Session Border Controller for Enterprise (SBCE), before a traffic carrying
Network Interface (A1 or B1) can be pinged, to which state do you have to toggle the status on Device Specific Settings > Network Management / Interfaces?
- A. Enabled
- B. In-Service
- C. Accept Service
- D. Active
Answer : A
Explanation:
Commission the SBCSBC Configuration

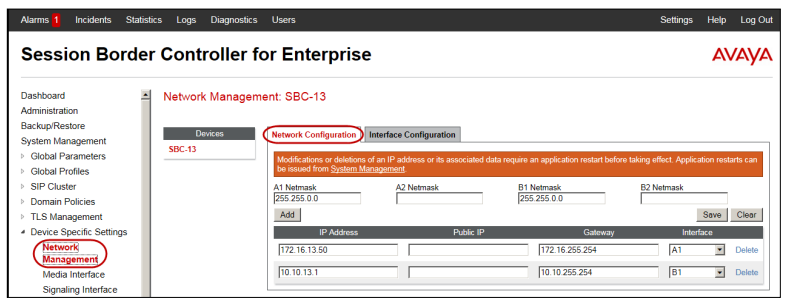

1. The A1 and B1 interfaces display on the Network Configuration tab:

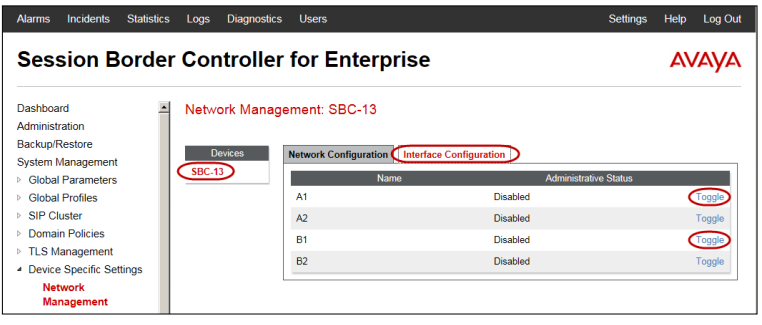

2. Click on the Interface Configuration tab:
3. Click the Toggle link for both the A1 and the B1 interfaces.

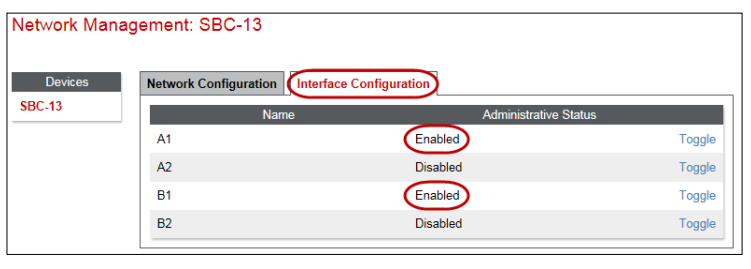

The Administrative Status for both A1 and B1 changes to Enabled:
References: Avaya Aura Session Border Controller Enterprise Implementation and
Maintenance (2012), page 203 -
A field engineer runs the Installation Wizard to install the Avaya Session Border Controller for Enterprise (SBCE).
Which statement about the Domain Name Service (DNS) configuration is true?
- A. A DNS address always needs to be configured for both the Primary and Secondary DNS, even if only the DNS is available.
- B. A DNS address does not need to be configured.
- C. A DNS address needs to be configured, even if it is unused and/or unreachable.
- D. A DNS address should not be configured here.
Answer : C
Explanation:
The system requires the DNS server to resolve the host names for alarming and remote access name associated with the Avaya Service Center.You must supply a DNS address entry, even if it is unused and/or unreachable.
What identifies that the Avaya Breeze™ server is using Identity Certificates that have been signed by Avaya Aura® System Manager (SMGR)?
- A. if the Issuer Name states O=AVAYA, OU=MGMT, CN= System Manager CA for the Security Module SIP Identity Certificate
- B. if the replication status is showing ‘Synchronized’ with a green background color
- C. if a successfully installed WebRTC snap-in is used
- D. if the Entity Link between Avaya Aura Session Manager (SM) and Avaya Breeze server is up
Answer : A
When configuring a SIP Entity for Avaya Aura Messaging (AAM) in Avaya Aura System
Manager, which Type of SIP entity needs to be selected?
- A. Messaging
- B. Avaya Aura® Messaging
- C. Communication Manager Messaging
- D. Other
Answer : D
Explanation:
Define SIP Entity -
Expand Elements, Routing and select SIP Entities from the left navigation menu.
Click New (not shown). In the General section, enter the following values and use default values for remaining fields.
* Name: Enter an identifier for the SIP Entity
* FQDN or IP Address: Enter IP address of Avaya Aura Messaging.
* Type: Select Other
Etc.
References: Application Notes for Configuring Avaya Aura Messaging 6.1 as a Voice
Messaging Solution for Avaya Aura Communication Manager 6.0.1 Feature & Evolution
Server Using SIP Trunks and Avaya Aura Session Manager 6.1 Issue 1.0 , page 22 https://www.devconnectprogram.com/fileMedia/download/08ad7375-7c2e-4767-929f-
15f4e8130a0d
What should be verified before running the initTM f command on the Command Line
Interface of Avaya Breeze platform (formerly known as Engagement Development
Platform (EDP))?
- A. Verify that Avaya Breeze is configured as a Managed Element in Avaya Aura System Manager.
- B. Verify that an enrollment password is configured on System Manager and that it has not expired.
- C. Verify that a valid Certificate is installed on the Avaya Breeze™ instance.
- D. Verify that Avaya Breeze™ is licensed.
Answer : B
Explanation:
See step 8 and step 9 below.
Repairing replication between Avaya Breeze and System Manager
Procedure -
1. On the System Manager web console, navigate to Services > Replication.
2. In Replica Group column, click CollaborationEnvironment_3.1.
3. In Replica Node Host Name column, locate Avaya Breeze.
4. Verify that the status of the Synchronization Status field is green. If not, go to Step 5.
5. If Presence Services Snap-in has been deployed, in the Product column, verify that both
Avaya Breeze and Presence Services are displayed.
6. Select Avaya Breeze, and click Repair.
7. After 215 minutes, verify that the status of the Synchronization Status field is green. If not, go to Step 8.
8. Verify that Enrollment Password is not expired.
a. Navigate to Services > Security.
b. In the navigation pane, click Certificates > Enrollment Password.
9. If the Enrollment Password is expired:
a. Enter a password, and click Commit.
It is highly recommended that the same password must be used. Otherwise, Avaya
Breeze and Presence Services must be re-administered, because System Manager
Enrollment Password was configured during deployment of Avaya Breeze. b. Open an SSH session to the Avaya Breeze Management Module IP address as sroot. c. On the command line interface, enter initTM -f. d. When prompted for the enrollment password, enter the password that you provided in
Step 9a.
e. Repeat Step 1 to Step 6.
References: Avaya Aura Presence Services Snap-in Reference, Release 7.0.1
(December 2016), page 223
https://downloads.avaya.com/css/P8/documents/101013646
In Avaya Session Border Controller for Enterprise (SBCE) 7.x, you need to download the
46xxsettings.txt file to a Remote Worker device.
What needs to be configured under DMZ Services > Relay Services?
- A. Application Relay and File Transfer
- B. Reverse Proxy
- C. Application Relay
- D. Application Relay and Reverse Proxy
Answer : C
Explanation:
Relay Services are used to define how file transfers (e.g., for phone firmware upgrades and configuration), are routed to the Remote Worker endpoints.
Example: 2 For accessing the file server using HTTPS protocol

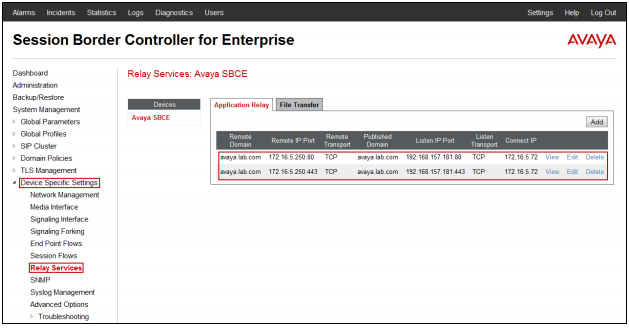

The following screenshot shows the newly created Relay Services
References: Configuring Remote Workers with Avaya Session Border Controller for
Enterprise Rel. 6.2, Avaya Aura -
Communication Manager Rel. 6.3 and Avaya Aura Session Managers Rel. 6.3 - Issue 1.0, page 73 https://downloads.avaya.com/css/P8/documents/100183254
When planning the Avaya Session Border Controller for Enterprise (SBCE) for SIP
Trunking, what is a good practice to adopt?
- A. Name Interfaces consistently, for example, A1 for Internal network to Call Server and B1 for external to Trunk Server.
- B. Name all internal and external interfaces exactly the same.
- C. Use the same IP address on both, internal and external sides of the network.
- D. Use one Avaya Session Border Controller for Enterprise on the internal and external sides of the network.
Answer : A
Explanation:
Use the same interface mapping throughout! Examples in this section use:
References: Avaya Aura Session Border Controller Enterprise Implementation and
Maintenance (2012), page 304 -
In which two locations is the Switch Password configured?
- A. In ‘ip-services’ form on Avaya Aura® Communication Manager (CM) and in ‘TSAPI link’ on Avaya Aura® Application Enablement Services (AES)
- B. In ‘ip-services’ form on Avaya Aura® Communication Manager (CM) and in ‘Switch Connection’ on Avaya Aura® Application Enablement Services (AES)
- C. In ‘cti-link’ form on Avaya Aura® Communication Manager (CM) and in ‘Switch Connection’ on Avaya Aura® Application Enablement Services (AES)
- D. In ‘cti-link’ form on Avaya Aura® Communication Manager (CM) and in ‘TSAPI link’ on Avaya Aura® Application Enablement Services (AES)
Answer : B
Explanation:
Enabling AE Services refers to administering the transport link between Communication
Manager and AE Services.
Procedure -
1. Type change ip-services. Communication Manager displays the IP SERVICES form
2. Complete Page 1 of the IP SERVICES form
3. Complete Page 3 of the IP SERVICES form as follows.
a. In the AE Services Server field, type the name of the AE Services server b. In the Password field, create a password.
This is the password that the AE Services administrator must set on the AE Server
(Communication Manager Interface > Switch Connections > Edit Connection > Switch
Password). The passwords must exactly match on both Communication Manager and the
AE Services server.
References: Avaya Aura Application Enablement Services Administration and Maintenance
Guide, Release 6.3 (June 2014) , page 26
https://downloads.avaya.com/css/P8/documents/100171737
After the initial provisioning script has been run you see your Avaya Session Border
Controller for Enterprise (SBCE) displaying a Registered state in the Web GUI. You click on the install link in the EMS System Management > Devices menu to continue the installation.
After displaying a status of Provisioning for a short while, which status does the SBCE display?
- A. Commissioned
- B. Up
- C. Busyout
- D. Maintenance-Busy
Answer : A
Explanation:

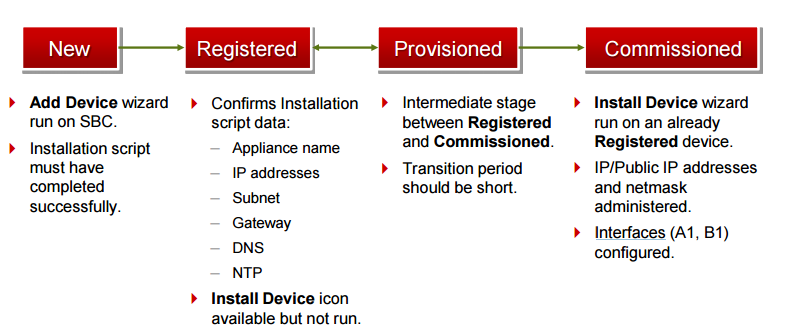

SBC states:
References: Avaya Aura Session Border Controller Enterprise Implementation and
Maintenance (2012), page 201 -
Which statement about the SIP Entities to support Avaya Aura Presence Services is true?
- A. Only one SIP Entity is built of Type = “Presence Services”, which uses the SM100 IP address of the Avaya Breeze™ node.
- B. Only one SIP Entity is built of Type = “Engagement Development Platform”, which uses the SM100 IP Address of the Avaya Breeze™ node.
- C. Two SIP Entities are built to the same SM100 IP address of each node. One is of Type = Engagement Development Platform, and the other is of Type = Other.
- D. Two SIP Entities are built to the same SM100 IP address of each node. One is of Type = Engagement Development Platform, and the other is of Type = Presence Services.
Answer : B
Which statement describes Cross-Origin Resource Sharing (CORS)?
- A. It allows for signaling-groups to be used by more than one trunk-group.
- B. It is a W3C specification that allows cross-domain communication from the browser.
- C. It is making DSP resources available regardless of the originating location of a call.
- D. It is a network setup by which an Avaya Aura® Media Server (AAMS) can be used by more than one Avaya Aura® Communications Manager (CM).
Answer : B
Explanation:
Cross-origin resource sharing (CORS) is a mechanism that allows restricted resources
(e.g. fonts) on a web page to be requested from another domain outside the domain from which the first resource was served. A web page may freely embed cross-origin images, stylesheets, scripts, iframes, and videos.
Note on the History of CORS:
Cross-origin support was originally proposed by Matt Oshry, Brad Porter, and Michael
Bodell of Tellme Networks in March 2004 for inclusion in VoiceXML 2.1 to allow safe cross- origin data requests by VoiceXML browsers.
In May 2006 the first W3C Working Draft was submitted. In March 2009 the draft was renamed to "Cross-Origin Resource Sharing" and in January 2014 it was accepted as a
W3C Recommendation.
References: https://en.wikipedia.org/wiki/Cross-origin_resource_sharing
In Avaya Session Border Controller for Enterprise (SBCE) 7.x, which two configuration screens must be configured for Personal Profile Management (PPM) to be successfully downloaded to an Avaya SIP Telephone (AST)? (Choose two.)
- A. PPM Services Mapping Profile
- B. Application Relay
- C. File Transfer
- D. Reverse Proxy
Answer : A,B
Explanation:
B: Application relays function as port forwards. Different clients require different application relays.
A: An Avaya SIP phone downloads and processes a configuration file, sends out a slew of
SUBSCRIBE messages, and uses something called Personal Profile Manager (PPM).
Note: The PPM is a software module that runs as part of an Avaya Session Manager. It consists of a series of web services that phones use to retrieve and manage SIP related user data.
References: https://andrewjprokop.wordpress.com/2014/03/28/understanding-avayas- personal-profile-manager-ppm/ https://downloads.avaya.com/css/P8/documents/101028355
By default, which Codec does Avaya Aura® Messaging (AAM) support?
- A. G.726
- B. G.722
- C. G.711
- D. G.729
Answer : C
Explanation:
You must configure the Messaging system to use the G.711 encoding format.
Note: The G.711 format provides the highest audio quality especially when voice networks use multiple encodings and decodings. Avaya requires that you use the G.711 encoding format in Messaging systems that support TTY devices.
The G.711 encoding format uses a higher encoding rate than GSM. The G.711 encoding format therefore produces larger files and requires more storage space for messages.
Messaging provides customers with adequate storage space for message playback and networking.
References: Administering Avaya Aura Messaging, Release 6.2 Issue 2.2 (December
2013) , page 201
https://downloads.avaya.com/css/P8/documents/100172127
