Total 69 questions
Click the Exhibit button.
A technician is asked to review the existing trunk information for a customer

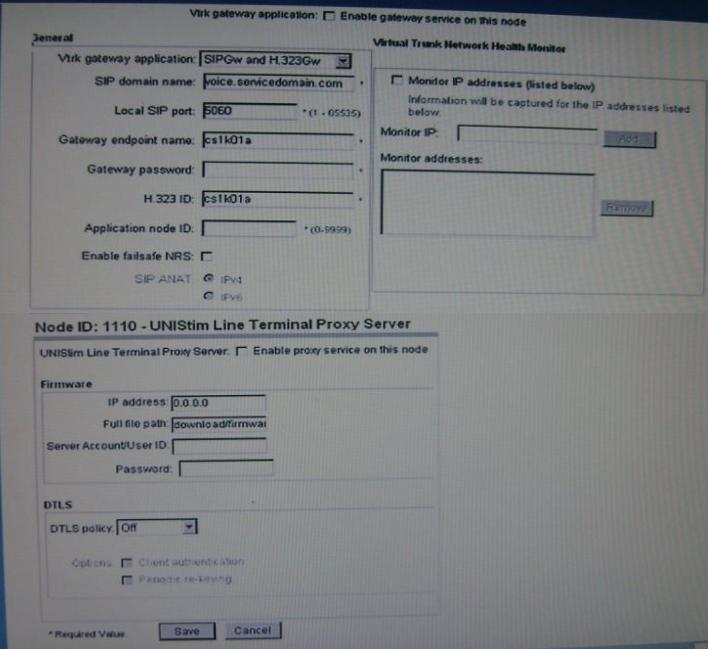

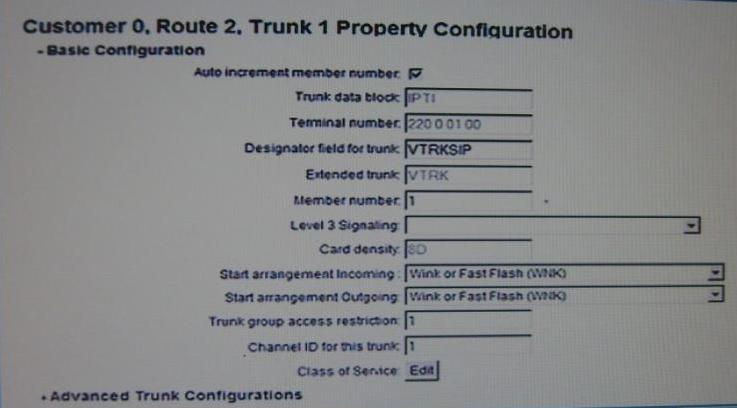

According to the Element manager screen capture shown in the exhibit, which type of trunk is this?
- A. DID
- B. VIRTUAL
- C. RAN
- D. H 323
Answer : B
A technician has just installed and configured a System Manager as the primary security
Server and configured a Member Security Server with the Element Manager and
Subscriber Manager Applications deployed. The Communication Server (CS) 1000E Rls.
7x Call Server is part of this server security domain. All connections are up and running.
When the new CS 1000 Rls. 7x system link on the elements window is clicked, the web browser returns with the following message.
Destination IP address cannot be reached
What is causing the problem?
- A. The browser window has not been refreshed.
- B. The Element Manager is unable to reach the MC32S via the ELAN.
- C. The Public Key Certificates for Web SSL were not added in the Call Server.
- D. The wrong Call Server IP address was entered during the application deployment.
Answer : D
Click the Exhibit button.

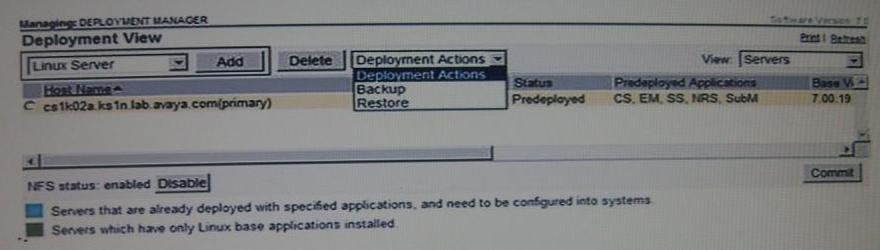

A technician is performing an upgrade of existing Communication Server 1000E Rls. 6.0 servers from the Deployment Servers. The system is pre-configured and the status is un- deployed. The server has been selected, but the Deployment Actions pull-down list does not include the choice to deploy.
Which two corrective actions must be taken to continue with deployment? (Choose two)
- A. Click the radio button associated with the server
- B. Click the Disable NFS button
- C. Click the Commit button
- D. Click the add Linux Server button
Answer : A,C
Refer to the exhibit.
A Communication Server 1000E Rls. 7 x customer is adding a new Human Resources department with eight IP telephone users. The customer has asked for the telephones to be programmed with consecutive Directory numbers (DNs) from their DID range (2000-
2099).
Which numbers sequence is available to meet the customers requirements?
- A. 2001-2008
- B. 2010-2017
- C. 2050-5057
- D. 2091-2099
Answer : D
A customer has installed a Media gateway controller (MGC) and would like to change the baud rate settings for the SDI parts. The baud rates for all serial Data Interface (SDI) ports on the MGC are configurable through call server?
Which overlay is used to configure the MGC SDI ports?
- A. LD 137
- B. LD 117
- C. LD 97
- D. LD 17
Answer : D
A technician is upgrading an existing Option 11C 5.5 system to a Communication Server
(CS) 1000E Rls. 7x Standard Availability with a single media Gateway 1000E chassis. A
CPMG Co-Resident Server card is being deployed during the upgrade. This is a stand- alone system that is not part of a larger network so the CPMG will act as its own Primary
Server.
Which application should be deployed on the CPMG server for this customer?
- A. CS+SS+EM
- B. CS+SS+SIPL
- C. CS+SS+SubM
- D. CS+SS
Answer : D
Click the Exhibit button.

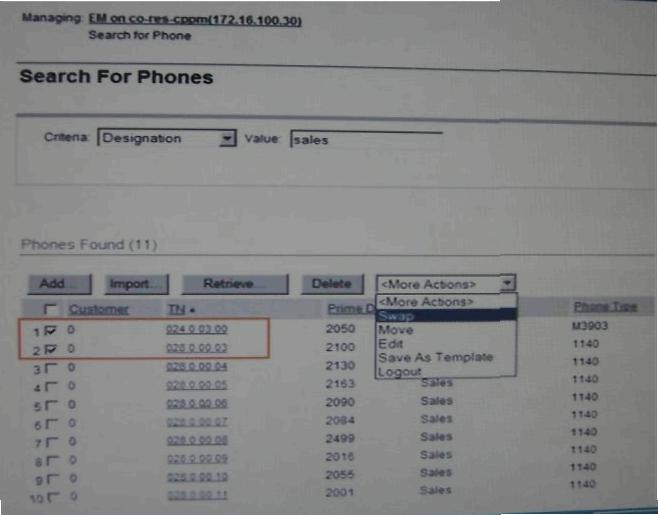

A customer has deployed a Communication Server (CS) 1000Rls. 7x system at their site, and has asked that a swap using the Element Manager Phones tool on the two telephone sets shows in the Print-out be performed.
What should the customer be told regarding the request?
- A. These two telephones cannot be swapped because they do not have competitive TN types.
- B. These two telephones can be swapped because they are both assigned to TGAR 1.
- C. These two telephones can be swapped because they both have the same VCE Class of service.
- D. These two telephones cannot be swapped because they are not in the same Call Pickup group.
Answer : A
A customer wants to build a new Ip node on their Communication Server (CS) 1000E system with three Signaling Servers. This node will support virtual trunks, IP media services, TPS and personnel directories. A technician logs into Elements manager to complete the configuration, after creating and saving the node configuration, the transfer now option chosen, then the servers are selected, the start sync is selected followed by restart application.
What is expected outcome from the system?
- A. The node file will be transferred from Signaling Servers to the call servers, and INI files will be transferred from the call server to the selected servers.
- B. The node file will be transferred from Call Servers to the Signaling servers, and the INI files will be transferred from the Call Servers to the selected servers.
- C. The node file will be transferred from Signaling Servers to the Call Server, and the INI files will be transferred from Call Servers to the Signaling servers.
- D. The node will be transferred from Element manager to the call server, and INI files will be transferred from Element manager to Call Server.
Answer : B
A technician is planning to upgrade a customers existing Communication Server 1000E
Rls. 6.0 system. During the upgrade, a CPPM server card from storage will be added to provide an additional signaling server.
Which two statements describes what must be done to the CPPM server card to distinguished it as a signaling Server (Choose two)
- A. Set switch 5 to position 1.
- B. Set switch 5 to position 2.
- C. Install one Compact Flash Drive (RMD) and one Hard Drive (FMD)
- D. Install one Compact Flash Drives (one RMD and one FMD)
Answer : B,C
Explanation: From - NN43041-
310_05.06_Communication_Server_1000E_Installation_Commissioning.pdf - Doc enclosed
See Page 52 - Text in Brackets [] are added.
"CP PM card dip switch settingsThe CP PM card used in a VxWorks-based Server configuration [Call Server] must have switch S5 in position 1 to indicate that a
Compact Flash (CF) card is used for the Fixed Media Drive (FMD).
The CP PM card used in a Linux-based Server configuration [Signaling Server] must have switch S5 in position 2 to indicate that a hard disk is used for the FMD."
A customer with a Communication Server (CS) 1000Rls. 6.0 SA is upgrading to Release
7.0. They have decided to replace the existing CPPM Call server CPPM Signaling Server with a CPPM Co-Resident Call Server, Signaling Server and Gateway Controller to free up a two card slots. A technician has decided to use the ELAN IP of the Call Server from the original system as the ELAN IP address of the Co-Resident server.
Which action must be taken to consolidate the servers?
- A. Re-configure the Call Server IP address field in each Media gateway Controller
- B. Re-configure the Telephony Node Information to reflect the Call Server ELAN IP
- C. Re-configure the DSP Daughterbaords to reflect Call Server ELAN IP.
- D. Re-configure the network Routing Service to reflect the Call Server ELAN IP address.
Answer : A
A customer is upgrading an existing option 11C Rls. 5.5 chassis system with an SSC card
Communication Server (CS) 1000E Rls. 7x Standard Availability with a single IP media
Gateway 1000E chassis. As a part of this upgrade a CPMG Co-Resident call Server,
Signaling Server Card and Gateway Controller has been included as part of the upgrade.
What happens to the Terminal Number (TN) format during this upgrade?
- A. The TN format is automatically converted to the large system format of Loop-Shelf-Card- Unit for all assigned Terminal Numbers.
- B. The TN format is automatically converted to the large system format of Card-Unit for all assigned Terminal Numbers
- C. The TN format is automatically converted to the large system format of Loop-Shelf-Card- Unit for all new programmed Terminal Numbers
- D. The format is automatically converted to the large system format of Loop-Shelf-Card- Unit for IP phones only. All other devices assigned Terminal Numbers must be manually reprogrammed.
Answer : A
A customer has successfully installed a Common Processor Media Gateway (CPMG) in a
Communication Server (CS) 1000E system. The MGC has registered with the Call Server.
What is displayed on the CPMG LED display to confirm successful registration?
- A. The MGC display will read “PASS”
- B. The MGC display will read “LOAD”
- C. The MGC display will read “Exxx” (E000)
- D. The MGC display will show Superloop and shelf number of MG 1000E
Answer : D
A technician is upgrading an option 11C Rls. 5x to a communication server 1000E SA Rls.
7x based on a CPPM CS, COTS SS with 4 chassis media gateway (MG), 100IP sets, 124 digital sets, 30 analog sets and one PR12 DID connection for the incoming and outgoing calls cannot be made from all type of the sets except for the sets in MG3.
When the technician is finished with the upgrade it is noticed during the acceptance testing that outgoing calls cannot be made from all type of the sets except for the sets in mG3. All the sets have dial tone.
Which statement describes what is causing this issue?
- A. The PR 12 loop disabled in MG3
- B. The DB 128 is not installed in MG3
- C. The COTS Signaling Server is faulty
- D. All MGs are unregistered except MG3
Answer : D
Your customer has requested you add the Call Park Feature to their Communication
Server 1000 Release 7x system. You have been asked to assign at least eight consecutive numbers that can be used to park calls.
Which CLI overlay and command will provide you with numbers that are unassigned and available?
- A. LD 20 / REQ / LUC
- B. LD 20 / REQ / LUDN
- C. LD 20 / REQ / LUU
- D. LD 20 / REQ / LUVU
Answer : B
A customer with a Communications Server (CS) Rls. 6.0 HA system with two IPMGs and dual CPPM signaling Servers is upgrading their system to release 7x with Avaya Aura integration with Session Manager. The system is part of an IP peer network that includes a
NRS database that needs to be converted and imported into the System Managre.
Which upgrade setup is correct?
- A. Use NRS manager to download the NRS backup file to compact flash and upload the nrs.xml file into system manager for automatic database conversion
- B. Use Element Manager to download the Signaling Server backup file to a compact flash and upload the nrs.xml file to CS 100 NRS data Conversion Tool to convert so it can be imported into Session Manager
- C. Use NRS manager to download the NRS backup file to the local PC and upload the nrs.xml file to the 1000 NRS data Conversion Tool to convert so it can be imported into System Manager
- D. Use Element Manager to download the Signaling Server backup file to the local PC and convert the nrs.xml file using the data conversion Tool in the utilities folder in the Linux Base compact flash
Answer : C
