MCSA Networking with Windows Server 2016 v1.0 (70-741)

Page:    1 / 18
Total 263 questions

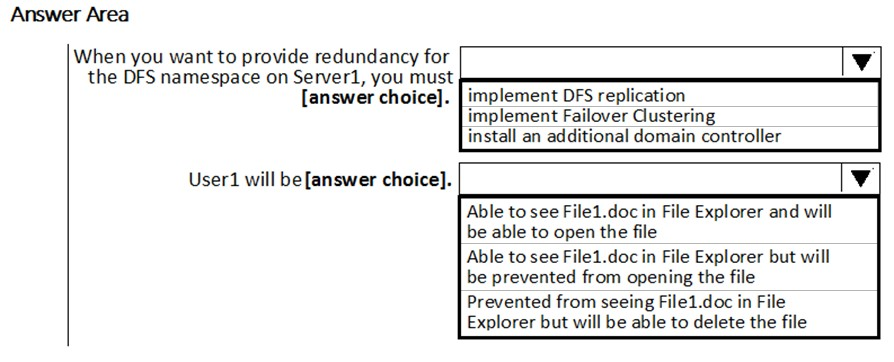

HOTSPOT -
Your network contains an Active Directory forest named adatum.com. The forest contains a server named Server1. Server1 has the DFS Namespaces role service installed and is configured as shown in the following exhibit.


\\Server1.adatum.com\namespace1 has a folder target named Folder1. A user named User1 has Full Control share and NTFS permissions to Folder1.
Folder1 contains a file named File1.doc. User1 has only Write NTFS permissions to File1.doc.
Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the graphic.
NOTE: Each correct selection is worth one point.
Hot Area:

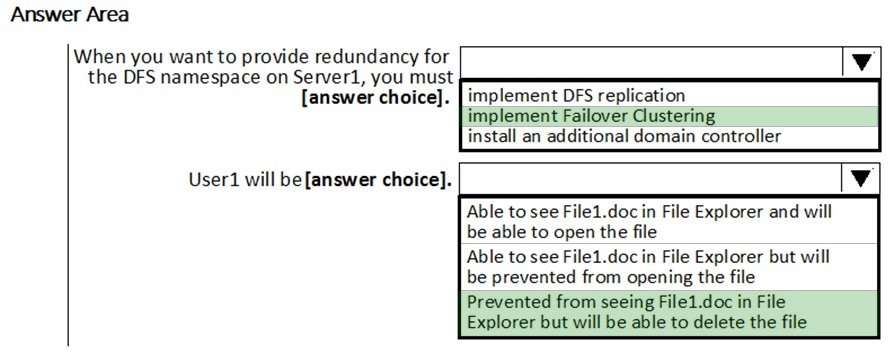

Answer :

Refer to the exhibit:

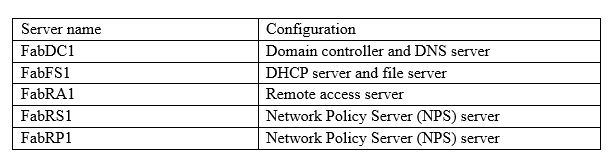

Your network contains an Active Directory forest named fabrikam.com. The forest contains the servers configured as shown in the following table:


You plan to implement a VPN. FabRA1 will use the RADIUS proxy for authentication.
You need to ensure that VPN clients can be authenticated and can access internal resources. The solution must ensure that FabRS1 is used as a RADIUS server and FabRP1 is used as a RADIUS proxy.
Which two actions should you perform? Each correct answer presents part of the solution.
NOTE: Each correct selection is worth one point.

  • A. Create a connection request policy on FabRS1.
  • B. Create a connection request policy on FabRP1.
  • C. Create a network policy on FabRS1.
  • D. Delete the default connection request policy on FabRS1.
  • E. Create a network policy on FabRP1.


Answer : BC

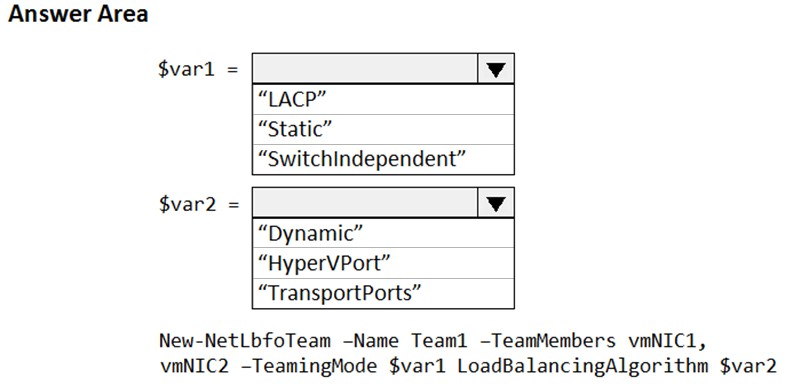

HOTSPOT -
You have a Hyper-V host named Server1 that runs Windows Server 2016. Server1 has two network adaptors named NIC1 and NIC2. Server1 has two virtual switches named vSwitch1 and vSwitch2. NIC1 connects to vSwitch1. NIC2 connects to vSwitch2.
Server1 hosts a virtual machine named VM1. VM1 has two network adapters named vmNIC1 and vmNIC2. VmNIC1 connects to vSwitch1. VmNIC2 connects to vSwitch2.
You need to create a NIC team on VM1.
What should you run on VM1? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Hot Area:

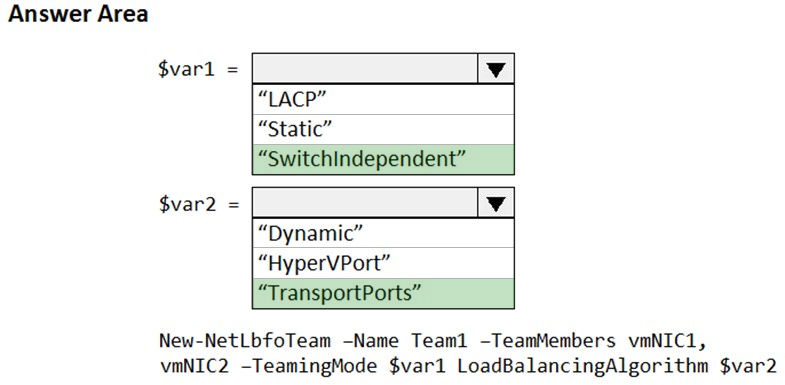

Answer :

You have a test environment that includes two servers named Server1 and Server2. The servers run Windows Server 2016.
You need to ensure that you can implement SMB Direct between the servers.
Which feature should the servers support?

  • A. Remote Direct Memory Access (RDMA)
  • B. Multipath I/O (MPIO)
  • C. Virtual Machine queue (VMQ)
  • D. Single root I/O virtualization (SR-IOV)


Answer : A

References:
https://technet.microsoft.com/en-us/library/jj134210(v=ws.11).aspx

You have a Hyper-V server named Server1 that runs Windows Server 2016. Server1 has an IP address of 192.168.1.78.
Server1 has a container named Container1 that hosts a web application on port 84. Container1 has an IP address of 172.16.5.6.
Container1 has a port mapping from port 80 on Server1 to port 84 on Container1.
You have a server named Server2 that has an IP address of 192.168.1.79.
You need to connect to the web application from Server2.
To which IP address and port should you connect?

  • A. 172.16.5.6:80
  • B. 192.168.1.78:80
  • C. 172.16.5.6:84
  • D. 192.168.1.78:84


Answer : B

References:
https://www.assistanz.com/configure-port-mapping-for-windows-container/

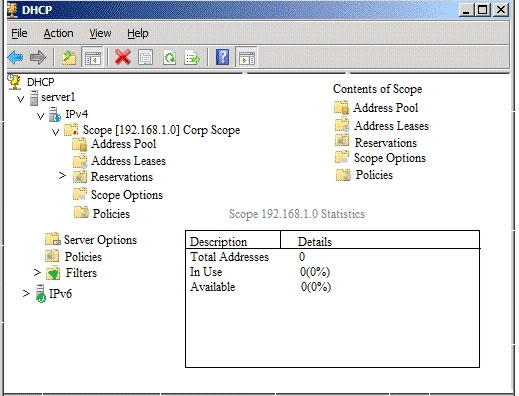

You have a DHCP server named Server1.
Server1 has an IPv4 scope that serves 75 client computers that run Windows 10.
When you review the address leases in the DHCP console, you discover several leases for devices that you do not recognize.
You need to ensure that only the 75 Windows 10 computers can obtain a lease from the scope.
What should you do?

  • A. Run the Add-DhcpServerv4ExclusionRange cmdlet.
  • B. Create and enable a DHCP filter.
  • C. Create a DHCP policy for the scope.
  • D. Run the Add-DhcpServerv4OptionDefinition cmdlet.


Answer : C

You have a DHCP server named Server1.
Server1 has an IPv4 scope that contains 100 addresses for a subnet named Subnet1. Subnet1 provides guest access to the Internet. There are never more than
20 client computers on Subnet1 simultaneously; however, the computers that connect to Subnet1 are rarely the same computers.
You discover that some client computers are unable to access the network. The computers that have the issue have IP addresses in the range of 169.254.0.0/16.
You need to ensure that all of the computers can connect successfully to the network to access the Internet.
What should you do?

  • A. Create a new scope that uses IP addresses in the range of 169.254.0.0/16.
  • B. Modify the scope options.
  • C. Modify the lease duration.
  • D. Configure Network Access Protection (NAP) integration on the existing scope.


Answer : C

You have an Active Directory forest that contains 30 servers and 6,000 client computers.
You deploy a new DHCP server that runs Windows Server 2016.
You need to retrieve the list of the authorized DHCP servers.
Which command should you run?

  • A. Get-DCHPServerDatabase
  • B. Netstat-p IP -s -a
  • C. Get-DHCPServerInDc
  • D. Show-ADAuthenticationPolicyExpression-AllowedToAuthenticateTo
  • E. Netsh DHCP server initiate auth
  • F. Get-DHCPServerSetting


Answer : C

References:
https://docs.microsoft.com/en-us/powershell/module/dhcpserver/get-dhcpserverindc?view=win10-ps

HOTSPOT -
You are configuring internal virtual networks to support multitenancy communication between tenant virtual machine networks and remote sites.
You have a tenant named Tenant1.
You need to enable Border Gateway Protocol (BGP) for Tenant1.

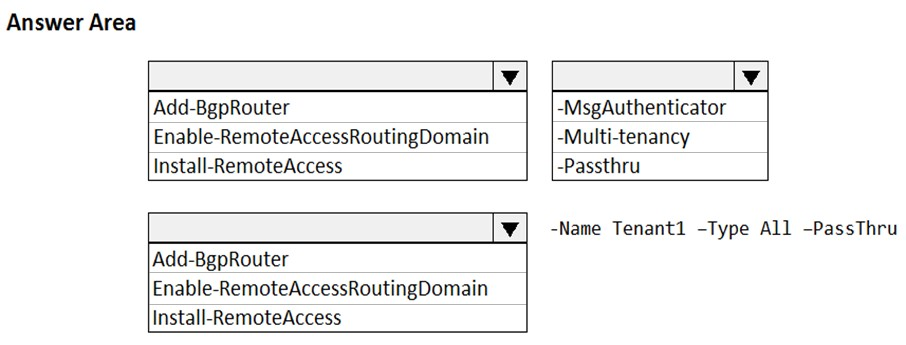

Which commands should you run? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Hot Area:

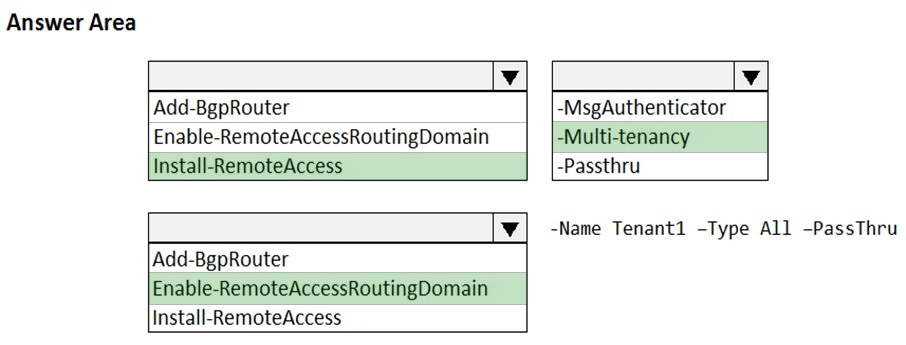

Answer :

References:
https://docs.microsoft.com/en-us/windows-server/remote/remote-access/bgp/border-gateway-protocol-bgp

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
You have a Hyper-V host named Server1. Server1 connects to your corporate network.

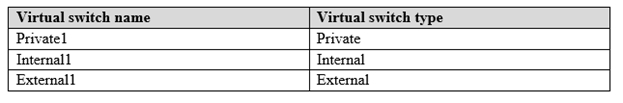

Server1 has the virtual switches configured as shown in the following table.


Server1 has two virtual machines named VM1 and VM2 that run Windows Server 2016. VM1 connects to Private1. VM2 has two network adapters.
You need to ensure that VM1 connects to the corporate network by using NAT.
Solution: You connect VM2 to Private1 and External1. You run the New-NetNatIpAddress and the New-NetNat cmdlets on VM2. You configure VM1 to use VM2 as the default gateway.
Does this meet the goal?

  • A. Yes
  • B. No


Answer : B

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
You have a Hyper-V host named Server1. Server1 connects to your corporate network.
Server1 has the virtual switches configured as shown in the following table.


Server1 has two virtual machines named VM1 and VM2 that run Windows Server 2016. VM1 connects to Private1. VM2 has two network adapters.
You need to ensure that VM1 connects to the corporate network by using NAT.
Solution: You connect VM1 to Inernal1. You run the New-NetNatIpAddress and the New-NetNat cmdlets on Server1. You configure VM1 to use Server1 as the default gateway.
Does this meet the goal?

  • A. Yes
  • B. No


Answer : A

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
You have a Hyper-V host named Server1. Server1 connects to your corporate network.
Server1 has the virtual switches configured as shown in the following table.


Server1 has two virtual machines named VM1 and VM2 that run Windows Server 2016. VM1 connects to Private1. VM2 has two network adapters.
You need to ensure that VM1 connects to the corporate network by using NAT.
Solution: You connect VM2 to Private1 and External1. You install the Remote Access server role on VM2, and you configure NAT in the Routing and Remote
Access console. You configure VM1 to use VM2 as the default gateway.
Does this meet the goal?

  • A. Yes
  • B. No


Answer : A

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
Your network contains an Active Directory domain named adatum.com. The domain contains two DHCP servers named Server1 and Server2.

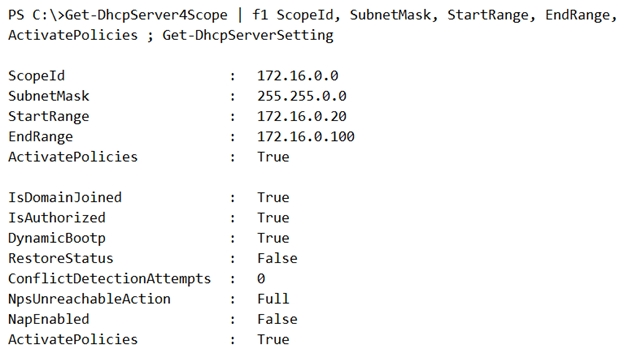

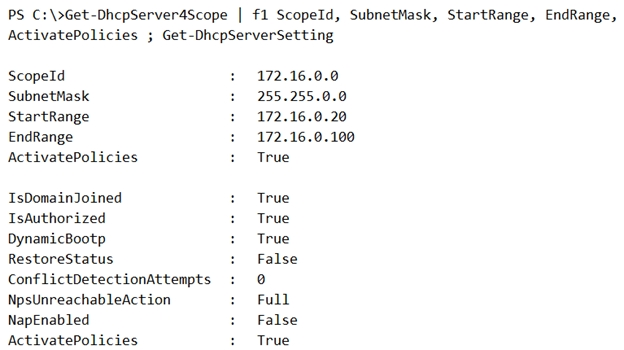

Server1 has the following IP configuration.

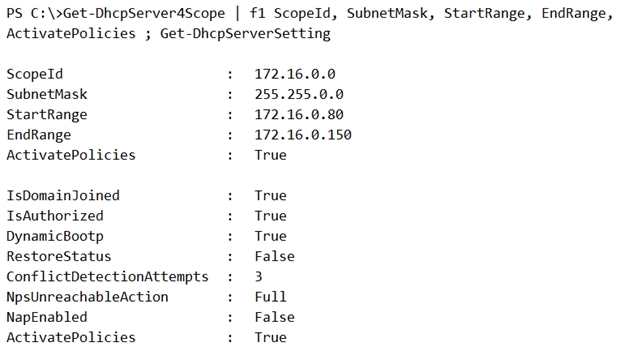

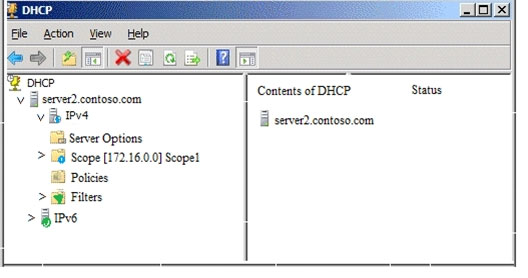

Server2 has the following IP configuration.

Some users report that sometimes they cannot access the network because of conflicting IP addresses.
You need to configure DHCP to avoid leasing addresses that are in use already.
Solution: On Server1, you modify the ActivatePolicies setting of the scope.
Does this meet the goal?

  • A. Yes
  • B. No


Answer : B

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
Your network contains an Active Directory domain named adatum.com. The domain contains two DHCP servers named Server1 and Server2.
Server1 has the following IP configuration.


Server2 has the following IP configuration.

Some users report that sometimes they cannot access the network because of conflicting IP addresses.
You need to configure DHCP to avoid leasing addresses that are in use already.
Solution: On Server1, you modify the EndRange IP address of the scope.
Does this meet the goal?

  • A. Yes
  • B. No


Answer : A

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
Your network contains an Active Directory domain named adatum.com. The domain contains two DHCP servers named Server1 and Server2.
Server1 has the following IP configuration.


Server2 has the following IP configuration.

Some users report that sometimes they cannot access the network because of conflicting IP addresses.
You need to configure DHCP to avoid leasing addresses that are in use already.
Solution: On Server2, you modify the ConflictDetectionAttempts value for IPv4.
Does this meet the goal?

  • A. Yes
  • B. No


Answer : B
