Advanced IP NGN Architecture Field Engineer (PANGNFE) v7.1 (650-756)

Page:    1 / 5
Total 68 questions

Which three services are considered additional, not basic, in the context of SP access networks? (Choose three.)

  • A. VPN access
  • B. IPv6
  • C. content filtering
  • D. voice features
  • E. Internet connectivity


Answer : A,C,D

Which three statements about IPv6 Rapid Deployment 6rd are true? (Choose three.)

  • A. ISP must introduce the changes into the core network.
  • B. IPv6 Rapid Deployment 6rd is a modified 6-to-4 protocol.
  • C. IPv6 Rapid Deployment 6rd uses a user-defined prefix.
  • D. IPv6 Rapid Deployment 6rd encapsulates IPv6 in ISP network in IPv4 between ISP 6rd gateway and CPE.
  • E. 6rd addresses can include 32 bits taken from the customer IPv4 address.


Answer : B,D,E

Which three statements are true about DHCPv6 ? (Choose three.)

  • A. DHCPv6 is used to automate the process of assigning the prefixes to the customer network.
  • B. DHCPv6 is used to automate the process of assigning the prefixes to the ISP core network.
  • C. Prefix delegation happens between a P and CPE.
  • D. Prefix delegation happens between a PE and CPE.
  • E. The customer can customize the subnet and assign the prefixes to the link.


Answer : A,D,E

Which three statements are true for the enterprise IPv6 WAN deployment? (Choose three.)

  • A. Hybrid should be the main method.
  • B. Dual stack should be the main method.
  • C. IPv6 should support every media type.
  • D. IPv6 should be supported on at least one available media type.
  • E. The larger feature set is available in WAN and not in campus.


Answer : B,C,E

What are the three models of the IPv6 Enterprise deployment? (Choose three.)

  • A. triple stack
  • B. hybrid
  • C. IPv6 service block
  • D. IPv6 service support dual stack


Answer : B,C,D

Name the three valid tunneling options for the encapsulation of the IPv6 traffic within IPv4 packets sent over the IPv4 backbone. (Choose three.)

  • A. GTP tunnel
  • B. manual tunnel
  • C. GRE tunnel
  • D. IPsec tunnel
  • E. L2TP tunnel


Answer : B,C,D

Which three items does the IPv6 solution definition process include? (Choose three.)

  • A. HLD for a resilient, scalable, modular network infrastructure
  • B. LLD with the detailed IPv6 configurations
  • C. roadmap and integration considerations
  • D. support services model
  • E. business case justification with risk analysis


Answer : A,C,E

Which software platform is the foundation of IOS XE?

  • A. QNX
  • B. Linux
  • C. FreeBSD
  • D. Mac Windows


Answer : B

In DWDM terminology, what is "grey light"?

  • A. A darker version of white light.
  • B. An attenuated signal of any wavelength.
  • C. Short-reach wavelengths.
  • D. Violet light of higher frequencies, bordering on invisible ultraviolet.


Answer : C

Which two of the following are characteristics of a core network? (Choose two.)

  • A. low number of redundant paths
  • B. usually a mesh topology
  • C. IS-IS or OSPF as IGP in the core
  • D. EIGRP in the core
  • E. MPLS VPN for 50 ms convergence time


Answer : B,C

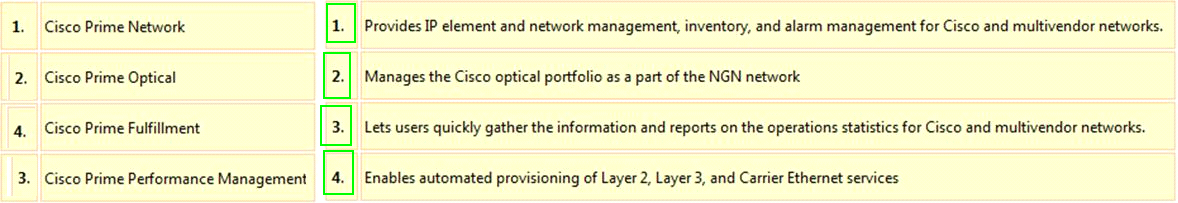

Match each term on the left to its correct explanation on the right.



Answer :

According to Cisco Visual Networking Index, which three of the following have increased or will increase in the future? (Choose three.)

  • A. global IP traffic
  • B. number of networks dedicated to a single service
  • C. wireless over wired traffic
  • D. wired over wireless traffic
  • E. traffic from non-PC devices


Answer : A,C,E

What is the benefit of cloud services for users?

  • A. The distribution of storage systems.
  • B. The irrelevance of physical location and configuration of underlying systems.
  • C. Data access is protected by strong encryption algorithms and unauthorized access is prevented by centralized authentication systems.
  • D. It is specially tailored for mobile users.


Answer : A

What are the two major functions of the WSON? (Choose two.)

  • A. inventory and resource management
  • B. path optimization
  • C. active impairment avoidance
  • D. dynamic provisioning


Answer : B,D

The Cisco CPT Series are primarily focused on providing which services?

  • A. MPLS-VPN
  • B. MPLS-TE
  • C. MPLS-TP
  • D. MPLS-AV


Answer : C
