Total 67 questions
A client reports that video is not streaming. The administrator determines the client is connecting at a data rate of 12 Mbps and is trying to stream to a valid multicast address on the network. What three items should the administrator check next to troubleshoot the issue? (Choose three)
- A. IGMP snooping is turned off because the client cannot request to join a group, only access points can.
- B. Video-stream for the multicast video is configured in the controller.
- C. WLAN has been set for a QoS value of Platinum.
- D. WLAN has been configured to allow multicast-direct to work correctly and multicast- direct has been enabled globally.
- E. WLAN has been set for a QoS value of Gold.
- F. RTSP is used to stream the video due to wireless multicast not using acknowledgements.
Answer : B,D,E
Which two methods to discover a controller does a MAP attempt when it boots up?
(Choose two.)
- A. |f Ethernet and wireless are available, it attempts to discover only via Ethernet.
- B. if Ethernet is disconnected, it attempts to connect wirelessly using AWPP.
- C. if only wireless is available and it is configured as a MAP, it does not attempt to connect to a WLC.
- D. If Ethernet and wireless are available, it uses Ethernet first. If it cannot connect via Ethernet, then it chooses wireless.
- E. |f Ethernet is disconnected, it attempts to connect wirelessly using the configured DHCP option.
Answer : A,B
An engineer wants to configure Call Admission Control and ensure that AC is based on the capacity of the AP and considering the possible impact of other APs in the area. Which two configuration options are required? (Choose two.)
- A. StaticCAC
- B. Admission Control
- C. Load-Based AC
- D. Add Traffic Stream
- E. Reserved Roaming Bandwidth
- F. Expedited Bandwidth
Answer : B,C
A network engineer is viewing the QBSS information in a packet sniff. Which two QBSS characteristics are crucial for successful troubleshooting? (Choose two.)
- A. When only WMM is enabled, information element number 1 QBSS Load information element is sent out in the beacons and probe responses.
- B. When only WMM is enabled, information element number 3 QBSS Load information element is sent out in the beacons and probe responses.
- C. When the client CAC limit is supported, information element number 2 is sent out in the beacons and probe responses on the bg radios.
- D. When the client CAC limit is supported, information element number 1 is sent out in the beacons and probe responses on the bg radios.
- E. When only WMM is enabled, information element number 2 QBSS Load information element is sent out in the beacons and probe responses.
Answer : D,E
A network engineer must ensure that corporate wireless users have a better experience than guest wireless users. Which two configurations fulfil requirement? (Choose two.)
- A. Override per-SSID bandwidth contracts on the corporate WLAN to reserve bandwidth.
- B. Modify the corporate WLAN to the Platinum QoS policy.
- C. Enable 802.1ptag on the Gold QoS pofccyto honor prioritized traffic.
- D. Adjust the guest WLAN radio policy to 80211 b/g only.
- E. Change the guest WLAN to the Bronze QoS policy.
Answer : B,E
A downstream packet containing a DSCP value arrives at the WLC Ethernet interface from the wired source network. The WLC is configured for QoS WLAN 802.1p mapping. How does the WLC treat the CAPWAP QoS marking when leaving the controller interface for the respective AP and final wireless client destination?
- A. No outer CAPWAP or inner QoS tagging is applied.
- B. No outer CAPWAP QoS tag is applied, but the original DSCP is maintained inside CAPWAP.
- C. The outer CAPWAP CoS is marked and capped while the inner DSCP maintains the original marking.
- D. The outer CAPWAP DHCP is marked and capped without any inner DSCP value.
Answer : C
A customer requires that the remote site be able to utilize local servers when the AP is in
WAN-down (standalone mode). Which AP mode must be configured on the wireless controller?
- A. SE-Connect
- B. Monitor
- C. Local
- D. FlexConnect
- E. Sniffer
- F. Rogue Detector
Answer : D
What is the default NMSP echo interval between a Mobility Services Engine and Wireless
LAN Controller?
- A. 30Seconds
- B. 15 Seconds
- C. 10 Seconds
- D. 60 Seconds
Answer : B
A customer has "quiet" wireless clients that use static IP addresses. Which two WLAN configurations are required for these wireless clients to connect properly? (Choose two.)
- A. Disable DHCP address assignment required.
- B. Enable passive client.
- C. Disable allow AAA override.
- D. Enable static IP tunneling.
- E. Disable DHCP server override.
Answer : A,E

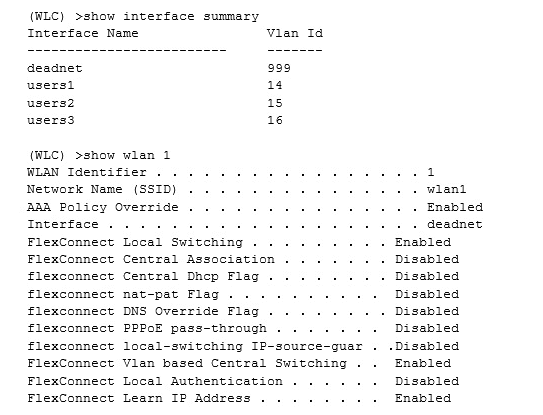

Refer to Exhibit.
A wireless client is connecting to FlexAPI which is currently working standalone mode. The
AAA authentication process is returning the following AVPs:
Tunnel-Private-Group-ld(81): 15 Tunnel-Medium-Type(65):IEEE-802(6) Tunnel-Type(64):
VLAN(13)
Which three behaviors will the client experience? (Choose three.)
- A. While the AP is in standalone mode, the client will be placed in VLAN 15.
- B. While the AP is in standalone mode, the client will be placed in VLAN 10.
- C. When the AP transitions to connected mode, the client will be de-authenticated.
- D. While the AP is in standalone mode, the client will be placed in VLAN 13.
- E. When the AP is in connected mode, the client will be placed in VLAN 13.
- F. When the AP transitions to connected mode the client will remain associated.
- G. When the AP is in connected mode, the client will be placed in VLAN 15.
- H. When the AP is in connected mode, the client will be placed in VLAN 10.
Answer : A,D,E
A customer recently implemented WLC wireless multicast. Clients and connecting at the highest mandatory wireless rate of 24 Mbps and are receiving multicast traffic, but WLC cpu utilization and wired side network load has increased substantially. What three actions should the engineer take next to optimize the configuration? (Choose Three)
- A. verify that Global Multicast mode has been enabled
- B. verify that IGMP snooping is disabled on the wireless controller since the access points are handing IGMP messages from the clients.
- C. make sure the highest mandatory rate is set to 54 Mbps so that the multicast traffic has sufficient bandwidth
- D. verify Multicast Listener Discovery (MLD) v1 snooping has been enabled to keep track of and deliver IPv4 multicast flows
- E. change the wireless controller from Multicast-Unicastmodeto Multicast-Multicast mode and assign a multicast address in the 239.X.X.X/8 subnet
- F. verify that the L3 interfaces are configured for pirn sparse-dense-mode on the VLAN servicing the wireless access points as well as the wireless controllers management VLAN
Answer : A,B,E
What are two functions of the RAP in a mesh network? (Choose two.)
- A. It provides a wired connection for the wireless mesh APs.
- B. It adds capacity and resilience to a mesh area.
- C. it creates a centralized management location for the mesh network.
- D. it reduces the hop count to the wireless network that is connected to the edge.
- E. it routes traffic from the wireless mesh to the wired network.
Answer : B,D
The customer has deployed C7960 phones with clients connected to them. What switch feature could be enabled to distinguish IP voice traffic from client data traffic?
- A. VoiceVLAN
- B. QoS routing
- C. WME
- D. Weighted Queuing
- E. QBSS
Answer : A
A wireless engineer wants to enable optimized roaming for their 5GHz wireless network with these settings: -72dBm RSSI value, 25% coverage exception level percentage, and a minimum of 50 packets received.
Which two commands achieve these settings? (Choose two.)
- A. config advanced 802.11a coverage data fail-percentage 25
- B. config advanced 802.11b optimized-roaming enable
- C. config advanced 802.11b coverage data rssi-threshold -72
- D. config advanced 802.11a optimized-roaming enable
- E. config advanced 802.11a coverage data rssi-threshold -72
Answer : A,D
