Implementing Cisco IP Telephony and Video, Part 2 (CIPTV2) v1.0 (300-075)

Page:    1 / 33
Total 501 questions

Scenario:
There are two call control systems in this item.
The Cisco UCM is controlling the Cisco Jabber for Windows Client, and the 7965 and 9971 Video IP Phone.
The Cisco VCS is controlling the SX20, the Cisco TelePresence MCU, and the Cisco Jabber TelePresence for Windows

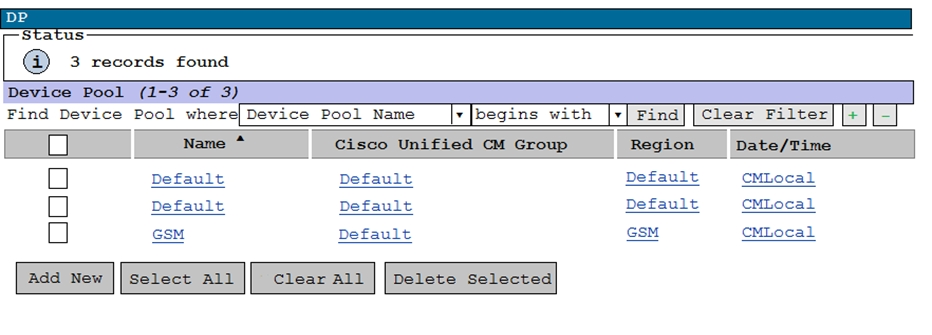

DP:

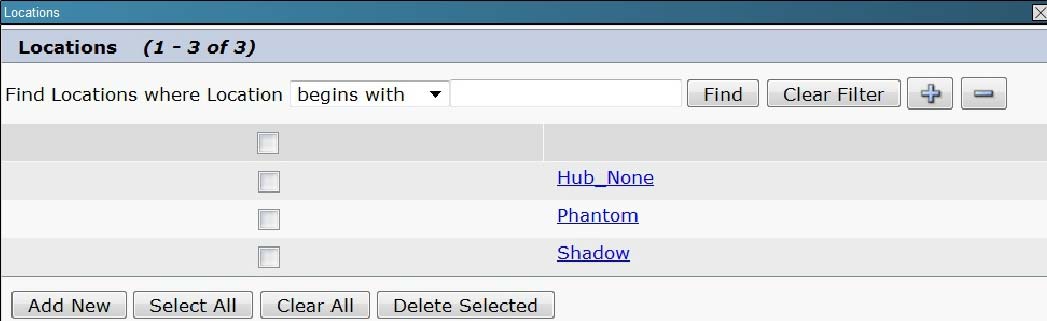

Locations:

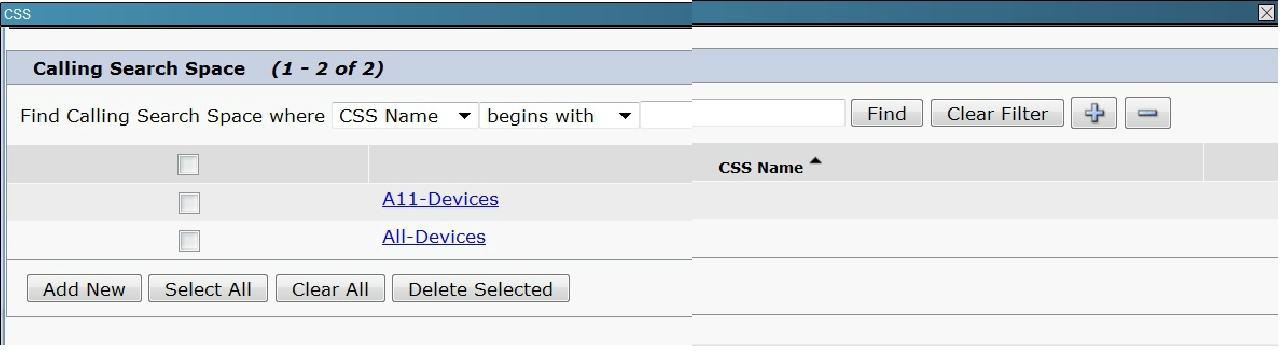

CSS:

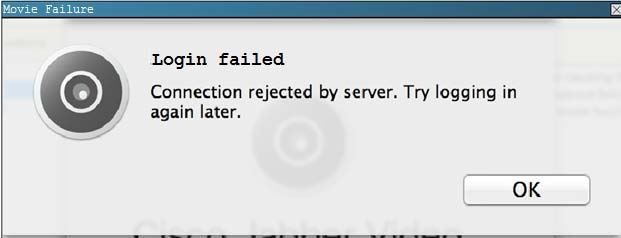

Movie Failure:

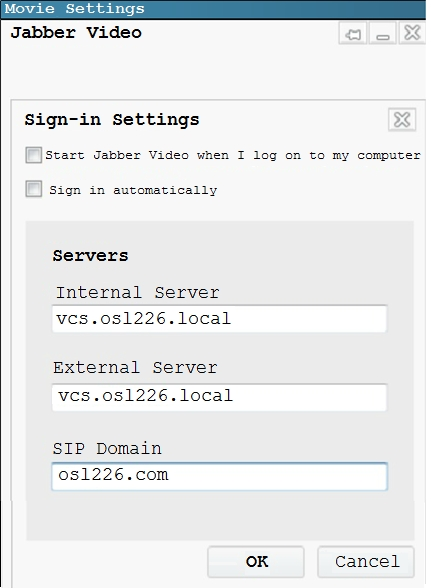

Movie Settings:

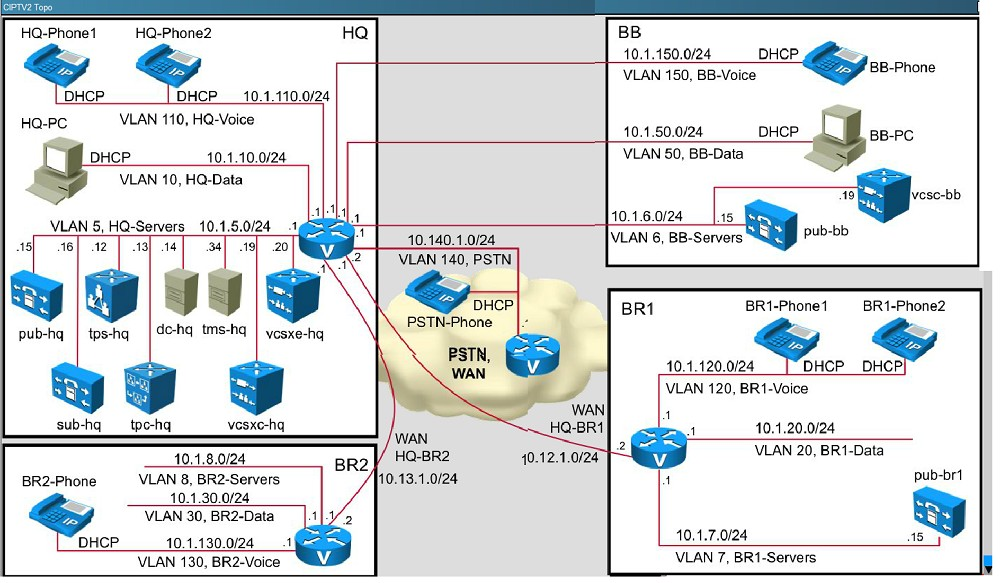

CIPTV2 Topology:

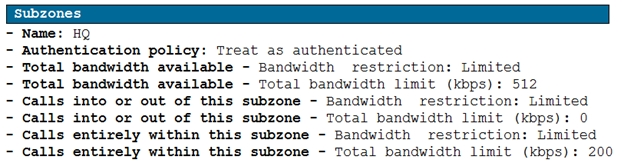

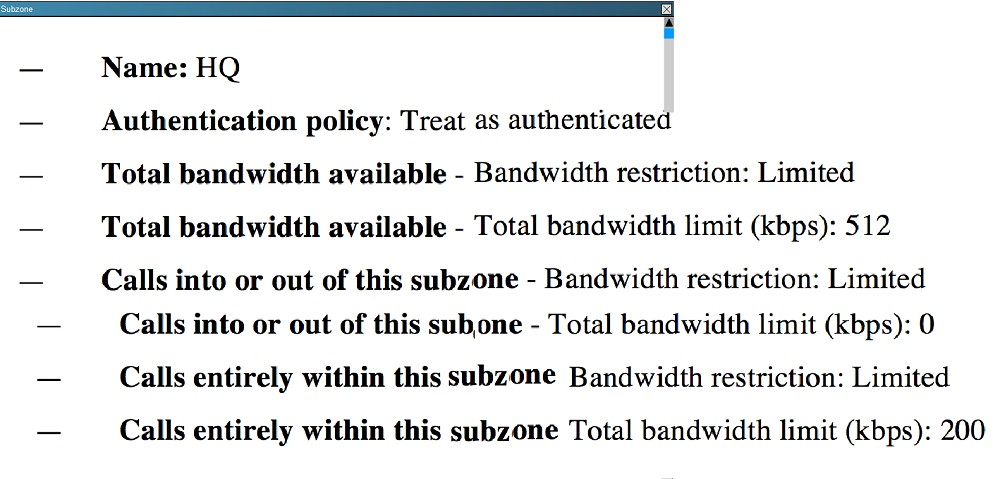

Subzone:

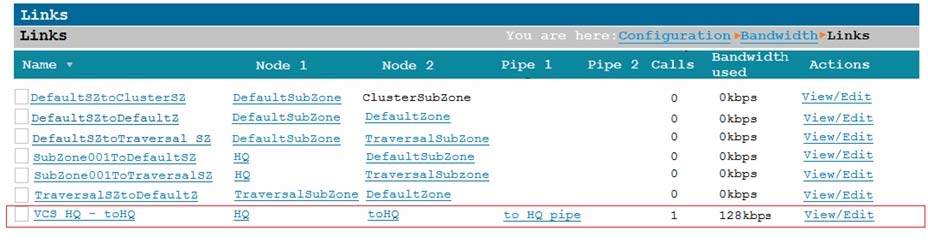

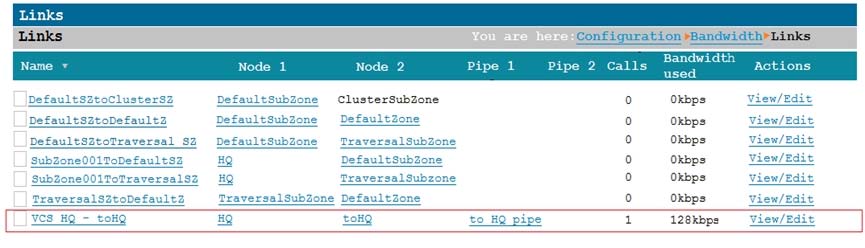

Links:

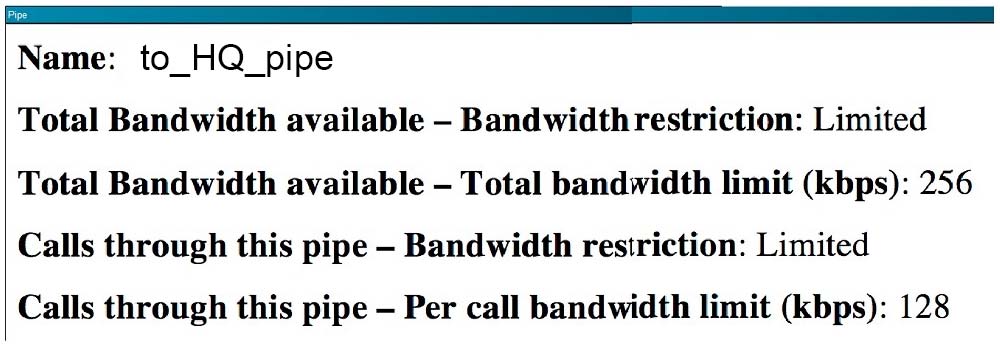

Pipe:

What two issues could be causing the Cisco Jabber Video for TelePresence failure shown in the exhibit? (Choose two)

  • A. Incorrect username and password.
  • B. Wrong SIP domain configured.
  • C. User is not associated with the device.
  • D. IP or DNS name resolution issue.
  • E. CSF Device is not registered.
  • F. IP Phone DN not associated with the user.


Answer : BD

Scenario:
There are two call control systems in this item.
The Cisco UCM is controlling the Cisco Jabber for Windows Client, and the 7965 and 9971 Video IP Phone.
The Cisco VCS is controlling the SX20, the Cisco TelePresence MCU, and the Cisco Jabber TelePresence for Windows.
DP:


Locations:

CSS:

Movie Failure:

Movie Settings:

CIPTV2 Topology:

Subzone:

Links:

Pipe:

A third collaboration call fails between the backbone site and the HQ site. After reviewing the exhibits, which of the following reasons could be causing this failure?

  • A. Not enough bandwidth has been allocated.
  • B. Device Pool.
  • C. Location.
  • D. The pipe is not functioning.


Answer : A

Scenario:
There are two call control systems in this item.
The Cisco UCM is controlling the DX650, the Cisco Jabber for Windows Client, and the 9971 Video IP Phone.
The Cisco VCS and TMS control the Cisco TelePresence MCU, and the Cisco Jabber TelePresence for Windows.
DP:


Locations:

CSS:

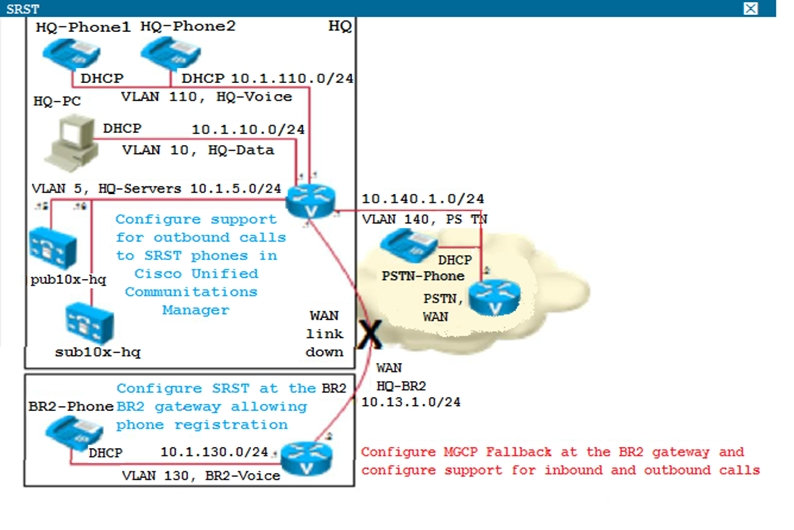

SRST:

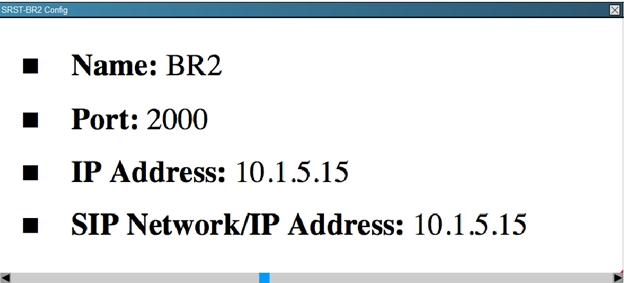

SRST-BR2-Config:

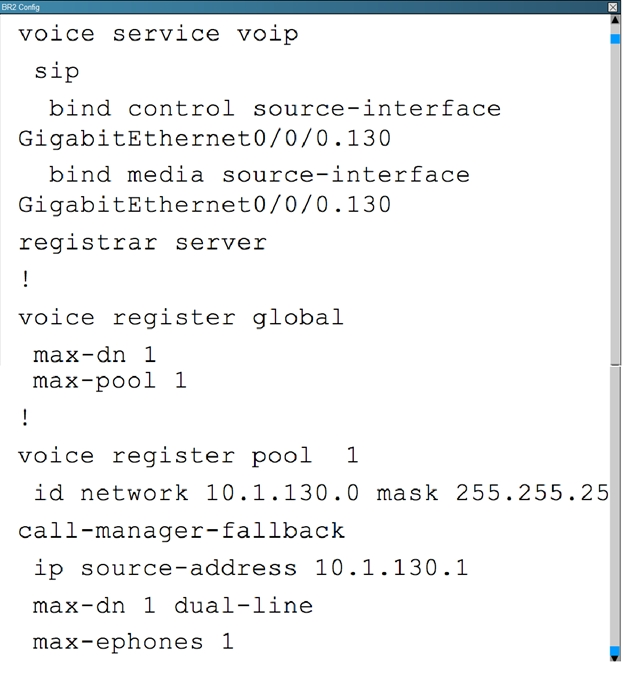

BR2 Config:

SRSTPSTNCall:

After adding SRST functionality the SRST does not work. After reviewing the exhibits, which of the following reasons could be causing this failure?

  • A. Device Pool cannot be default.
  • B. The Cisco UCM is pointing to the wrong IPv4 address of the BR router.
  • C. The router does not support SRST.
  • D. The SRST enabled router is not configured correctly. A


Answer : Explanation

Scenario:
There are two call control systems in this item. The Cisco UCM is controlling the DX650, the Cisco Jabber for Windows Client, and the 9971 Video IP Phone.
The Cisco VCS and TMS control the Cisco TelePresence MCU, and the Cisco Jabber TelePresence for Windows.
DP:


Locations:

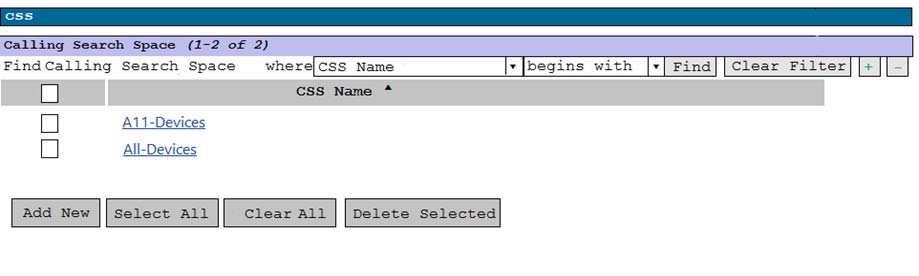

CSS:

SRST:

SRST-BR2-Config:

BR2 Config:

SRSTPSTNCall:

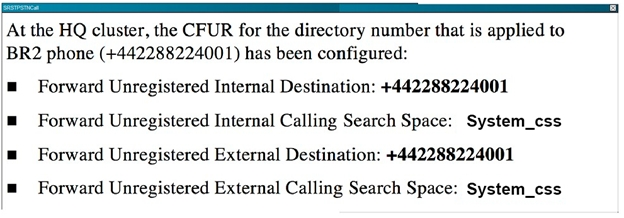

After configuring the CFUR for the directory number that is applied to BR2 phone (+442288224001), the calls fail from the PSTN. Which two of the following configurations if applied to the router, would remedy this situation? (Choose two.)

  • A. dial-peer voice 1 pots incoming called-number 228822"¦ direct-inward-dial port 0/0/0:15
  • B. dial-peer voice 1 pots incoming called-number 228822"¦ direct-inward-dial port 0/0/0:13
  • C. voice translation-rule 1 rule 1/Ë„228821....S//+44&/ exit ! voice translation-profile pstn-in translate called 1 ! voice-port 0/0/0:15 translation-profile incoming pstn-in
  • D. voice translation-rule 1 rule 1/Ë„228822....S//+44&/ exit ! voice translation-profile pstn-in translate called 1 ! voice-port 0/0/0:15 translation-profile incoming pstn-in
  • E. The router does not need to be configured.


Answer : AD

Scenario:
There are two call control systems in this item.
The Cisco UCM is controlling the DX650, the Cisco Jabber for Windows Client, and the 9971 Video IP Phone.
The Cisco VCS and TMS control the Cisco TelePresence MCU, and the Cisco Jabber TelePresence for Windows
DP:


Locations:

CSS:

SRST:

SRST-BR2-Config:

BR2 Config:

SRSTPSTNCall:

Which device configuration option will allow an administrator to control bandwidth between calls placed between branches?

  • A. Media Resource Group List
  • B. Device Pool
  • C. Location
  • D. AAR Group
  • E. Regions


Answer : C

Scenario:
There are two call control systems in this item.
The Cisco UCM is controlling the DX650, the Cisco Jabber for Windows Client, and the 7965 and 9971 Video IP Phones.
The Cisco VCS and TMS control the Cisco TelePresence Conductor, the Cisco TelePresence MCU, and the Cisco Jabber TelePresence for Windows.

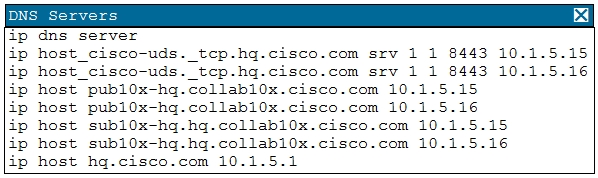

DNS Server:


Device Pool:

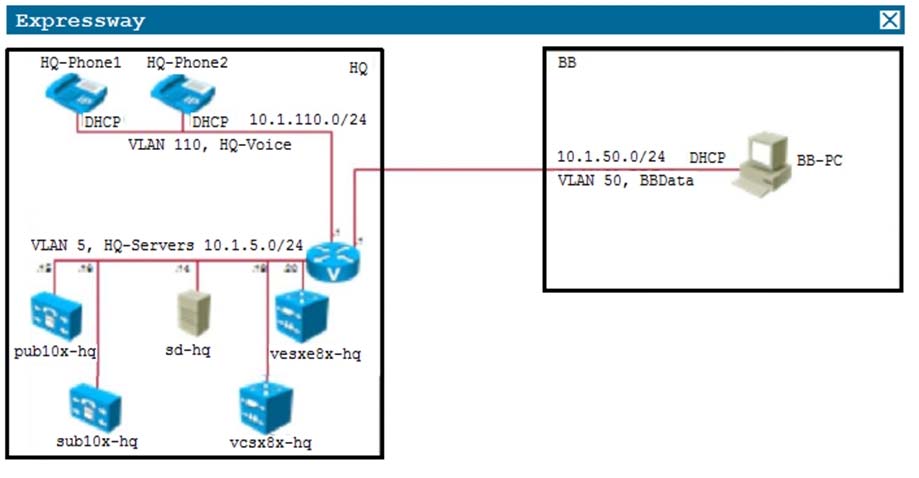

Expressway:

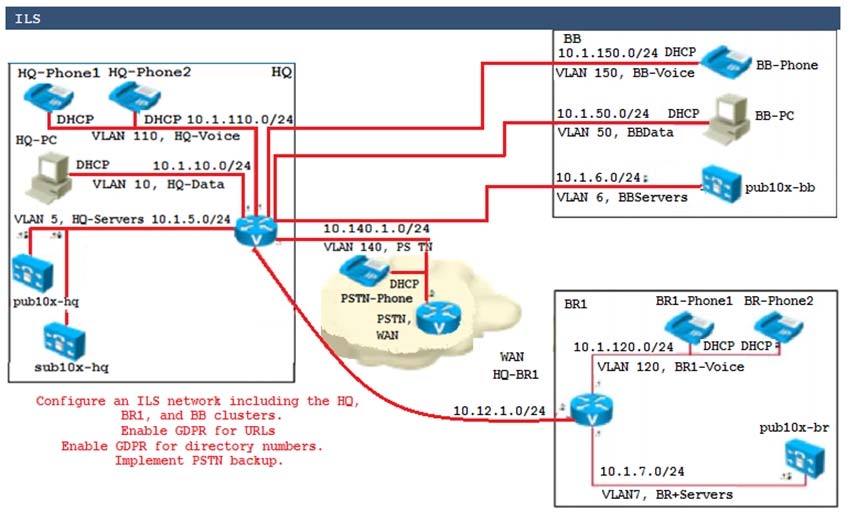

ILS:

Locations:

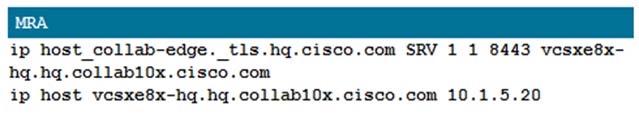

MRA:

Speed Dial:

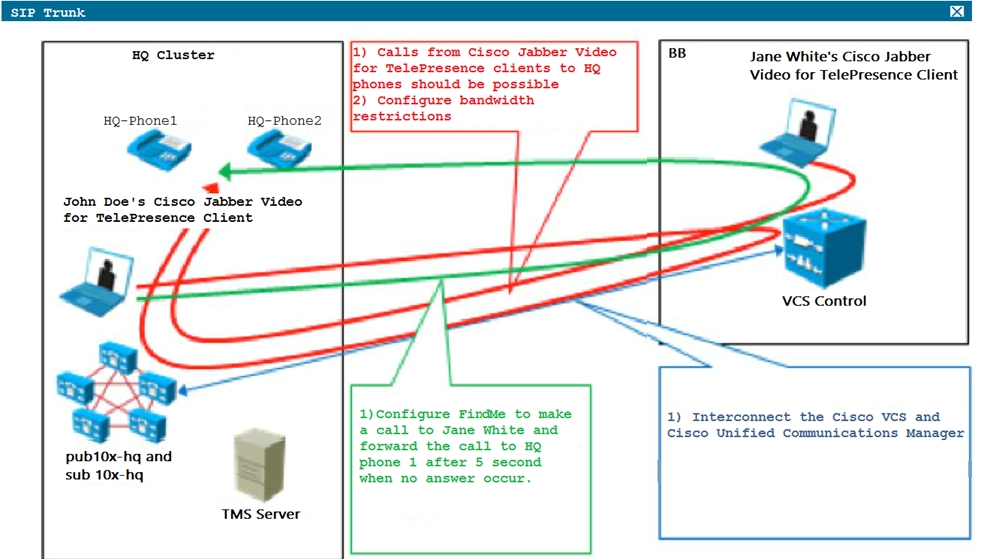

SIP Trunk:

Which three configuration tasks need to be completed on the router to support the registration of Cisco Jabber clients? (Choose three.)

  • A. The DNS server has the wrong IP address.
  • B. The internal DNS Service (SRV) records need to be updated on the DNS Server.
  • C. Flush the DNS Cache on the client.
  • D. The DNS AOR records are wrong.
  • E. Add the appropriate DNS SRV for the Internet entries on the DNS Server.


Answer : BCE

Scenario:
There are two call control systems in this item.
The Cisco UCM is controlling the DX650, the Cisco Jabber for Windows Client, and the 7965 and 9971 Video IP Phones.
The Cisco VCS and TMS control the Cisco TelePresence Conductor, the Cisco TelePresence MCU, and the Cisco Jabber TelePresence for Windows.
DNS Server:


Device Pool:

Expressway:

ILS:

Locations:

MRA:

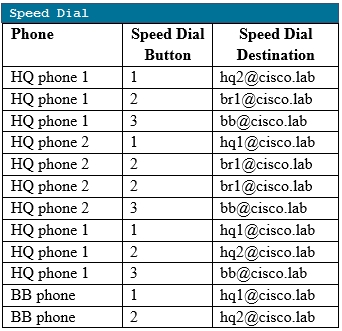

Speed Dial:

SIP Trunk:

The intercluster URI call routing no longer allows calls between sites. What is the reason why this would happen?

  • A. Wrong SIP domain configured.
  • B. User is not associated with the device.
  • C. IP or DNS name resolution issue.
  • D. No SIP route patterns for cisco.lab exist.


Answer : C

Scenario:
There are two call control systems in this item.
The Cisco UCM is controlling the DX650, the Cisco Jabber for Windows Client, and the 7965 and 9971 Video IP Phones.
The Cisco VCS and TMS control the Cisco TelePresence Conductor, the Cisco TelePresence MCU, and the Cisco Jabber TelePresence for Windows.
DNS Server:


Device Pool:

Expressway:

ILS:

Locations:

MRA:

Speed Dial:

SIP Trunk:

What two tasks must be completed in order to support calls between the VCS controlled endpoints and the Cisco Unified CM endpoints? (Choose two.)

  • A. Media Resource Group List.
  • B. Configure a SIP trunk on the Cisco Unified CM to point to the Cisco VCS.
  • C. Configure a neighbor zone on the Cisco Unified CM to point to the Cisco VCS.
  • D. Configure a SIP trunk on the Cisco VCS to point to the Cisco Unified CM.
  • E. Configure a neighbor zone on the Cisco VCS to point to the Cisco Unified CM.


Answer : BE

A video endpoint is configured with SIP only. What does a video endpoint use to register with the VCS Control?

  • A. IP address
  • B. SIP URI
  • C. MAC address
  • D. system name


Answer : B

Which zone will the VCS Control use to route calls to the VCS Expressway?

  • A. neighbor zone
  • B. DNS zone
  • C. traversal client zone
  • D. ENUM zone


Answer : C

You want to configure Cisco VCS SIP endpoints and H.323 endpoints so that they communicate with one another. To do this, which format must you use in the
Search Rule?

  • A. name@domain
  • B. IP Address (192.168.100.0)
  • C. name@hostname
  • D. name@IP Address (192.168.100.0)


Answer : A

When you connect a Cisco VCS Control to Cisco Unified Communications Manager by using a SIP trunk, which mechanism do you use to verify that the trunk has an active connection?

  • A. OPTIONS ping
  • B. DNS tracing
  • C. Continuous ping
  • D. Dynamic DNS


Answer : A

Which DNS SRV Records must be configured on the external DNS server in a mobile remote access scenario with Cisco Expressway?

  • A. _collab-edge._tls.example.com
  • B. _collab-edge._udp.example.com
  • C. _cisco-uds._tcp.example.com
  • D. _cuplogin._tcp.example.com


Answer : A

Company X currently uses a Cisco Unified Communications Manager, which has been configured for IP desk phones and Jabber soft phones. Users report however that whenever they are out of the office, a VPN must be set up before their Jabber client can be used. The administrator for Company X has deployed a
Collaboration Expressway server at the edge of the network in an attempt to remove the need for VPN when doing voice. However, devices outside cannot register.
Which two additional steps are needed to complete this deployment? (Choose two.)

  • A. A SIP trunk has to be set up between the Expressway-C and Cisco UCM.
  • B. An additional interface must be enabled on the Cisco UCM and placed in the same subnet at the Expressway.
  • C. The customer firewall must be configured with any rule for the IP address of the external Jabber client.
  • D. The Expressway server needs a neighbor zone created that points to Cisco UCM.
  • E. Jabber cannot connect to Cisco UCM unless it is on the same network or a VPN is set up from outside.


Answer : AD

A new administrator at Company X has deployed a VCS Control on the LAN and VCS Expressway in the DMZ to facilitate VPN-less SIP calls with users outside of the network. However, the users report that calls via the VCS are erratic and not very consistent.
What must the administrator configure on the firewall to stabilize this deployment?

  • A. The VCS Control should not be on the LAN, but it must be located in the DMZ with the Expressway.
  • B. The firewall at Company X must have all SIP ALG functions disabled.
  • C. The firewall at Company X requires a rule to allow all traffic from the DMZ to pass to the same network that the VCS Control is on.
  • D. A TMS server is needed to allow the firewall traversal to occur between the VCS Expressway and the VCS Control servers.


Answer : B
