Page: 1
/ 111
Total 553 questions
SIMULATION -

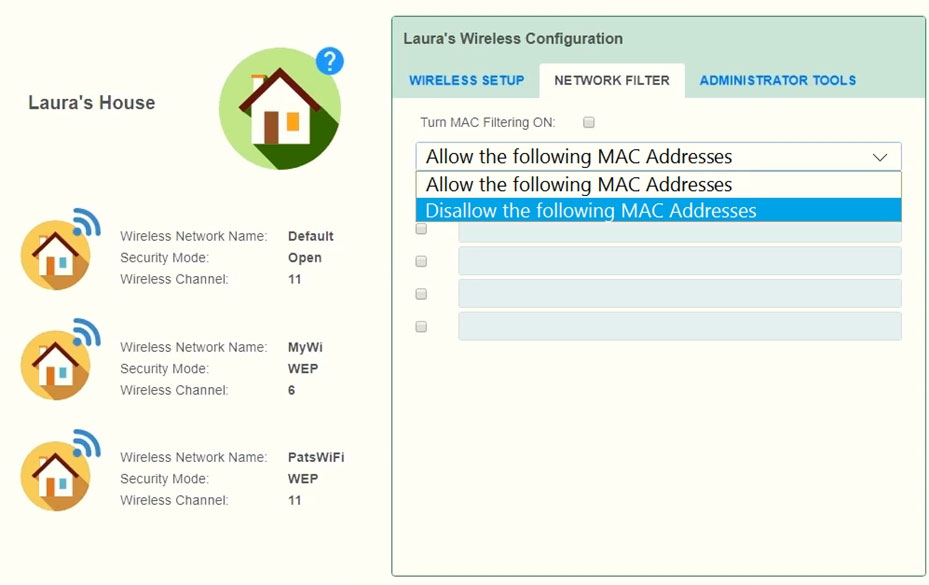

Laura, a customer, has instructed you to configure her home office wireless access point.
She plans to use the wireless network for finances and has requested that the network be setup with the highest encryption possible.
Additionally, Laura knows that her neighbors have wireless networks and wants to ensure that her network is not being interfered with by the other networks.
She requests that the default settings be changed to the following.

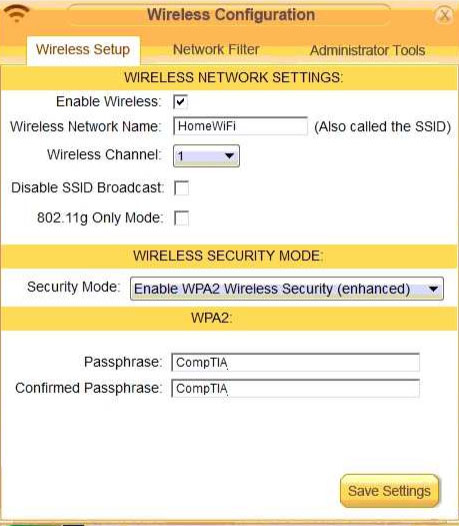

Wireless Name: HomeWiFi -
Shared Key: CompTIA -
Router Password: Secure$1 -

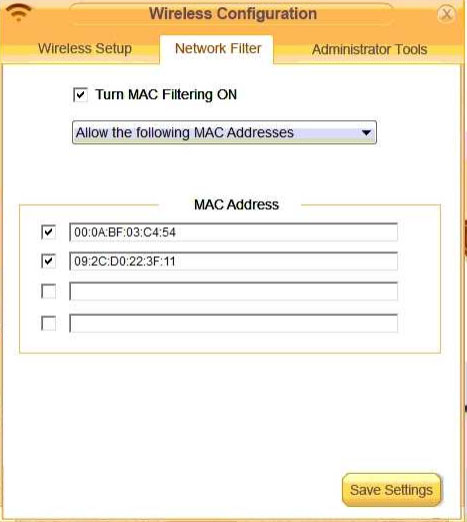

Finally, Laura wants to ensure that only her laptop and SmartPhone can connect to the network.
Laptop: IP Address 192.168.1.100
Hardware Address: 00:0A:BF:03:C4:54
SmartPhone: IP Address 192.168.1.101
Hardware Address: 09:2C:D0:22:3F:11
INSTRUCTIONS -
Configure Lauraג€™s wireless network using the network adapter window.
If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.
Answer : See the explanation below
Explanation:
Which of the following would MOST likely be used to connect one or more devices to the Internet in a SOHO?
- A. Hub
- B. Ethernet gateway
- C. Wireless access point
- D. Router
Answer : C
Reference:
https://www.professormesser.com/free-a-plus-training/220-1001/installing-a-soho-network/
DRAG DROP -

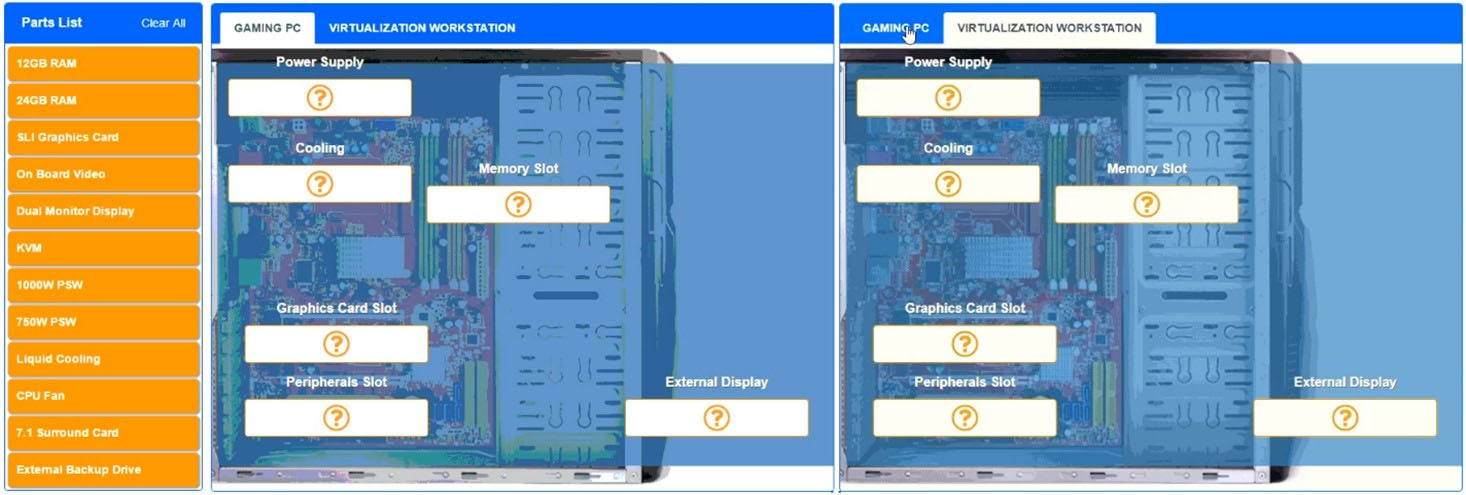

A customer, Ann, has requested two custom PCs, one to be used for gaming and the other to be used as a virtualization workstation for her business.
The gaming PC should support the latest games and gaming peripherals.
The virtualization workstation should be able to host several production virtual machines as part of Annג€™s home business.
INSTRUCTIONS -
Use the tabs at the top to switch between the PCs.
Objects should be placed on the appropriate slot/display areas and can only be used once.
All slot/display areas should be filled.
If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.
Select and Place:
Answer :
SIMULATION -

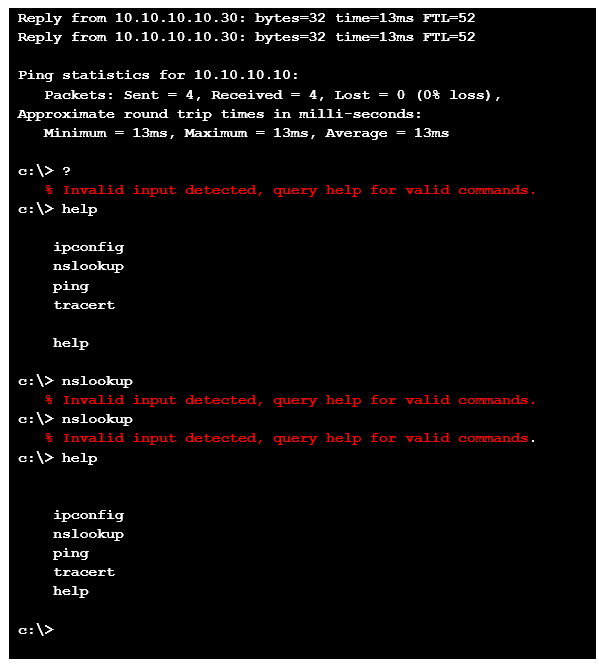

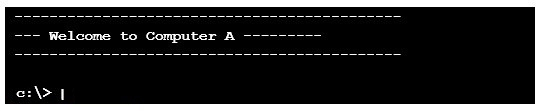

The network administrator has changed the IP address of ComputerA from 192.168.1.20 to 10.10.10.20 and now Jane, a user, is unable to connect to file shares on ComputerA from ComputerB using the computer name.
INSTRUCTIONS -
Using the available tools, resolve the connectivity issues.
After troubleshooting the issue, verify a successful connection.
If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.
Answer : See the explanation below
Explanation:
We need to flush the DNS to have the new IP address assigned to the same computer name. Use the ipconfig/flushdns command.
