Total 77 questions
Which two layout or switching modes are supported with the Cisco TelePresence Multipoint
Switch? (Choose two.)
- A. enhanced continuous presence
- B. active speaker switching
- C. continuous presence
- D. speaker switching
- E. room switching
- F. active continuous presence
Answer : D,E
Which statement is true about the Cisco TelePresence System 500-32 system regarding the HVAC needs for the room where it is installed?
- A. The system does not require any additional requirements above the normal HVAC requirements for the room.
- B. You must supply additional cooling requirements for the room.
- C. You must supply a room that has energy-efficient lighting to reduce the temperature of the room.
- D. The temperature of the room will be 10 to 20 degrees warmer than the rest of the building.
Answer : A
What is the main difference between Cisco Jabber and Cisco Jabber Video for
TelePresence?
- A. Cisco Jabber registers to the Cisco Unified Communications Manager, whereas Cisco Jabber Video for TelePresence registers to the VCS.
- B. Cisco Jabber Video for TelePresence registers to Cisco Unified Communications Manager, whereas Cisco Jabber registers to the VCS.
- C. Cisco Jabber has no video calling capabilities, whereas Cisco Jabber Video for TelePresence has video capabilities.
- D. Cisco Jabber has no presence capabilities, whereas Cisco Jabber Video for TelePresence has presence capabilities.
- E. There is no difference between Cisco Jabber and Cisco Jabber Video for TelePresence. They should not coexist in the same network.
Answer : A
When dialing, in a format that is consistent for all users of a system, a user who has multiple TelePresence video devices associated, what are the three minimum requirements that must be configured for the user to be able to receive video calls? (Choose three.)
- A. The Active Directory server must be installed.
- B. Ensure that the Cisco TelePresence Video Communications Server has the FindMe option key installed.
- C. Ensure that FindMe is set to on.
- D. The NTP server must be set up.
- E. The Cisco TelePresence Management Suite must be installed.
Answer : B,C,E

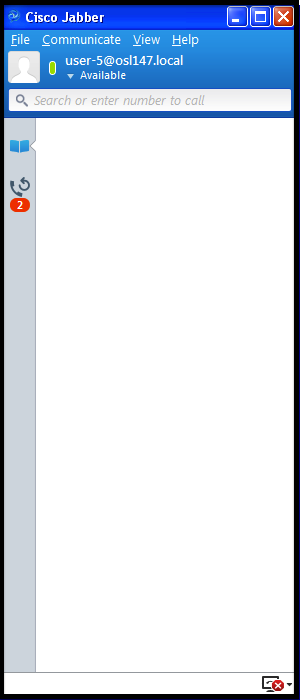

Refer to Exhibit:
Which two of these can cause the phone status error icon that is shown in the exhibit?
(Choose two.)
- A. The Cisco Unified Communications Manager IM and Presence Service is not available.
- B. The username and password in Cisco Jabber phone services are misconfigured.
- C. The Cisco Jabber initial audio and video settings need to be set.
- D. There is no DN configured for the Cisco Unified Client Services Framework in Cisco Unified Communications Manager.
- E. The Cisco Jabber does not have the correct phone button template and hence cannot register to the Cisco Unified Communications Manager.
- F. The called user presence status is unknown.
Answer : B,D

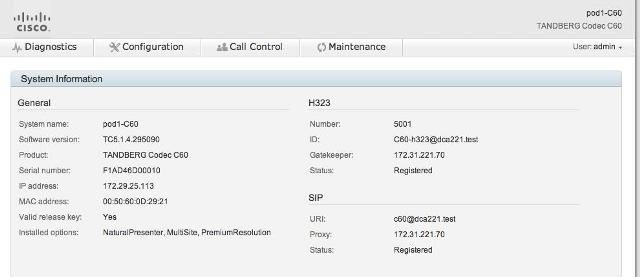

Refer to the exhibit.
Under which tab can the log file for the endpoint be found?
- A. Diagnostics
- B. Configuration
- C. Call Control
- D. Maintenance
Answer : A
Which two Cisco TelePresence systems would be appropriate for an executive personal office? (Choose two.)
- A. Cisco Jabber
- B. Cisco IP Video Phone E20
- C. Cisco TelePresence EX Series
- D. Cisco Jabber Video for TelePresence
- E. Cisco TelePresence System 500
Answer : C,E

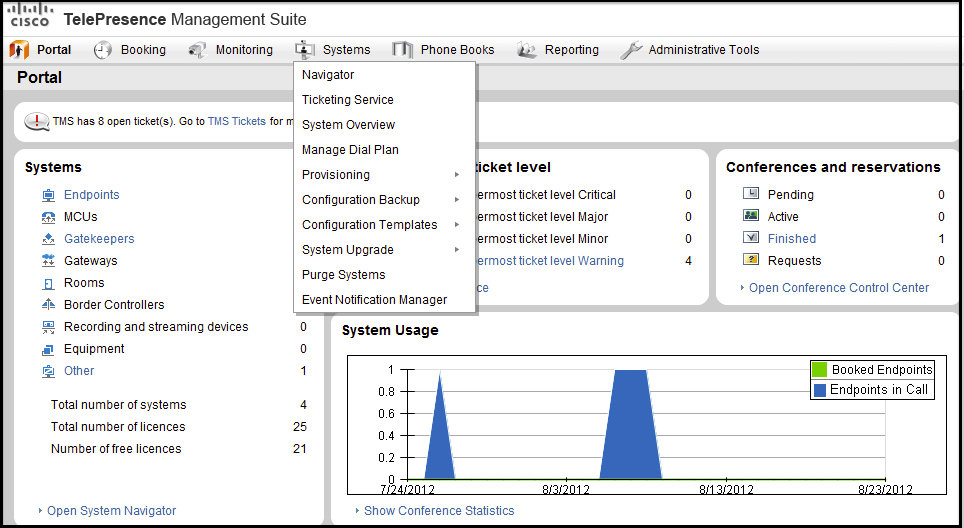

Refer to the exhibit:
Which system tab can be used to add video infrastructure devices and endpoints?
- A. Navigator
- B. System Overview
- C. Configuration Templates
- D. Provisioning
- E. Administrative Tools
Answer : A
Which two systems would be an appropriate solution for a traveling employee? (Choose two.)
- A. Cisco Jabber
- B. Cisco C-Series codec
- C. Cisco TelePresence EX Series
- D. Cisco Jabber Video for TelePresence
- E. Cisco TelePresence System 500
- F. Cisco IP Video Phone E20
Answer : A,D

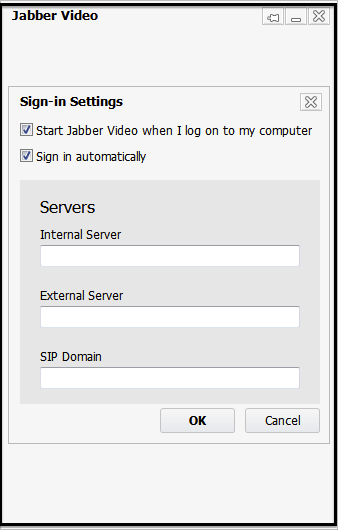

Refer to the exhibit.
When the Cisco Jabber Video for TelePresence fails to register with the server, which two fields should be configured at a minimum, assuming SRV records are not configured?
(Choose two.)
- A. the internal or external DNS server name for the Cisco TelePresence Video Communications Server
- B. the internal DNS server name for the Cisco TelePresence Management Suite
- C. the SIP domain
- D. the IP address of the Cisco TelePresence Management Suite for the internal server
- E. the IP address of the Cisco Unified Communications Manager for the internal server
Answer : A,C
When manual discovery is used to register a Cisco TelePresence endpoint to a VCS via
SIP, which two pieces of information are required to be configured on the endpoint for registration to occur, assuming that Cisco TMS and DNS are not being used? (Choose two.)
- A. option 150
- B. SIP URI
- C. proxy address
- D. H.323 alias
- E. external manager address
- F. RTP ports
Answer : B,C
Which encoder is best suited for professional, studio-quality audio and video processing?
- A. Scientific Atlanta Encoder
- B. Cisco Digital Media Encoder 1000
- C. Cisco Digital Media Encoder 2000
- D. Cisco Digital Media Encoder 3000
Answer : C

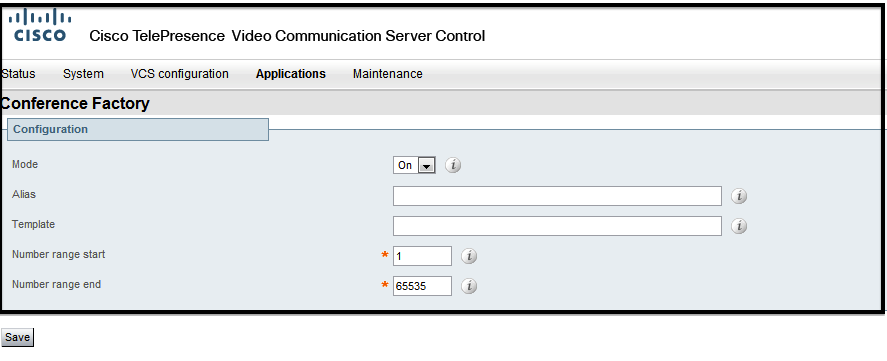

Refer to the exhibit.
Which multipoint feature can be configured using the exhibit that was taken from the Cisco
TelePresence Video Communications Server?
- A. Multisite
- B. Multiway
- C. both Multisite and Multiway
- D. Multiway conferences between devices that are registered only to the local Cisco TelePresence Video Communications Server
- E. Multisite conferences between Cisco Video Jabber for TelePresence devices only
Answer : B
You have installed a C-Series endpoint in an office where DHCP is not supported. At a minimum, which four network items must be configured for the endpoint to be able to register with H.323 on a Cisco TelePresence Video Communication Server located at the external headquarters location? (Choose four.)
- A. unique IPv4 address
- B. subnet mask
- C. default gateway
- D. Cisco VCS IPv4 address
- E. Active Directory IPv4 address
- F. SMTP server IPv4 address
Answer : A,B,C,D
