Question #1 (Topic: Topic 1)

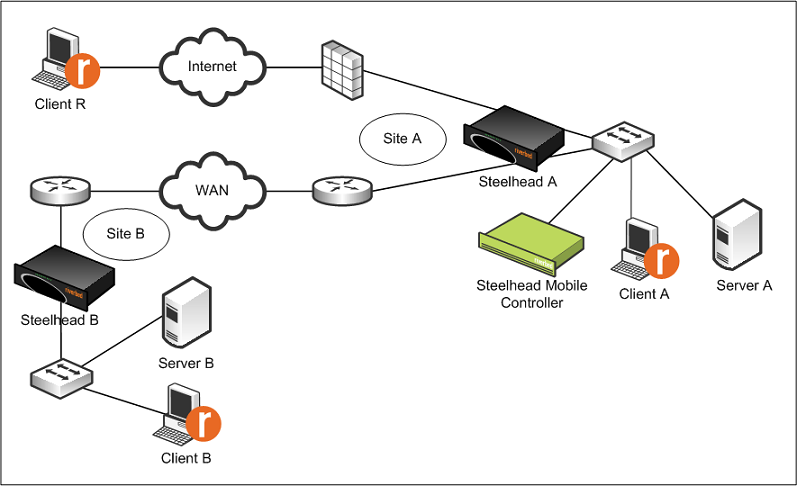

Refer to the exhibit.
[Riverbed-199-01-8.0/Riverbed-199-01-3_2.png]
If Steelhead Mobile Client B offers up a share on the network, what is needed on Steelhead
Mobile Client R to open an optimized connection to this share if enhanced auto-discovery is
enabled on all Steelhead appliances?

A. Default auto-discovery will work fine without modification B. The connection to Client B cannot be optimized because the Steelhead Mobile Controller cannot optimize incoming connections C. A fixed-target rule to Client B's IP address is needed in order for optimization to occur on Mobile Client B D. The addition of a peering rule

Answer: A

Question #2 (Topic: Topic 1)

The client-side Steelhead appliance has been configured for OOB Destination
Transparency, what should the source IP/port be for the OOB connection?

A. Client IP/random port B. Client-side Steelhead appliance in-path IP/random port C. Client IP/port 708 D. Client-side Steelhead appliance in-path IP/port 708 E. None of the above

Answer: B

Question #3 (Topic: Topic 1)

Which statements are true regarding the default methods by which load-balancing takes
place in the Interceptor appliance. (Select 2)

A. The Interceptor appliance uses round robin, for each TCP connection, regardless of source or destination IP address, and is equally load-balanced between a group of Steelhead appliances B. The Interceptor appliance uses round robin, for each TCP connection, depending on source IP address, and is equally load-balanced between a group of Steelhead appliances C. The Interceptor appliance uses hash assignment, for each TCP connection depending the hash value calculated from source and destination IP address, and is directed to a particular Steelhead appliance in the local cluster D. The Interceptor appliance can dynamically determine and direct traffic for optimization to the least-loaded Steelhead appliances based on Steelhead appliance resource usage E. The Interceptor appliance uses peer affinity, a Steelhead appliance in the local cluster that has been previously paired with a destination IP address is preferred F. The Interceptor appliance uses peer affinity, a Steelhead appliance in the local cluster that has been previously paired with a remote Steelhead appliance is preferred

Answer: D,F

Question #4 (Topic: Topic 1)

Using an Interceptor appliance is an alternative to what network designs? (Select 2)

A. WCCP B. PBR C. Connection Forwarding D. Fixed-target rules E. Peering rules

Answer: A,B

Question #5 (Topic: Topic 1)

A customer would like to deploy the Interceptor appliance on four aggregated 100 Mbps
links which use LACP to bundle the physical links into a single logical link.Which of the
following is true? (Select 2)

A. LACP is not supported with the Interceptor appliance B. The command “in-path multi-interface enable” must be configured C. The same IP address must be configured on each of the four in-path interfaces D. Each In-path interface should have its own unique IP address. E. The command “no arp filter response” should be enabled.

Answer: D,E
